In sports action recognition systems, the posture of athletes is constantly changing.
In order to achieve accurate estimation of various postures of athletes and determine
their position and action information, this study first designed an optimized EKF
algorithm. On this basis, a motion recognition model was constructed by combining
various sensors in Micro Electro Mechanical Systems (MEMS).
3.1 Optimization design of full-angle AEA based on EKF
In sports action recognition, accurately tracking and estimating an athlete's dynamic
posture is a challenging task, especially when fast and complex motion sequences are
involved. The key of action recognition lies in how to extract useful dynamic information
accurately and timely from real-time data. Traditional motion recognition technology,
such as video analysis or simple sensor data processing, is often limited by data
processing delay and noise interference, and it is difficult to meet the requirements
of high precision and real-time. Therefore, the extended Kalman filter is used to
design a new motion recognition algorithm. The extended Kalman filter can update state
estimates at each time step based on new observed data, thus providing continuous
and accurate prediction of dynamic system state. This feature makes it particularly
suitable for processing real-time multi-dimensional dynamic data collected by MEMS
sensors during sports movements. By continuously predicting and updating the state
of the system, EKF can not only effectively suppress the observation noise, but also
adapt to the rapid changes in the process of motion [12]. In the application scenario of this study, due to the existence of numerous nonlinear
functions, EKF was used to process these nonlinear discrete systems. The attitude

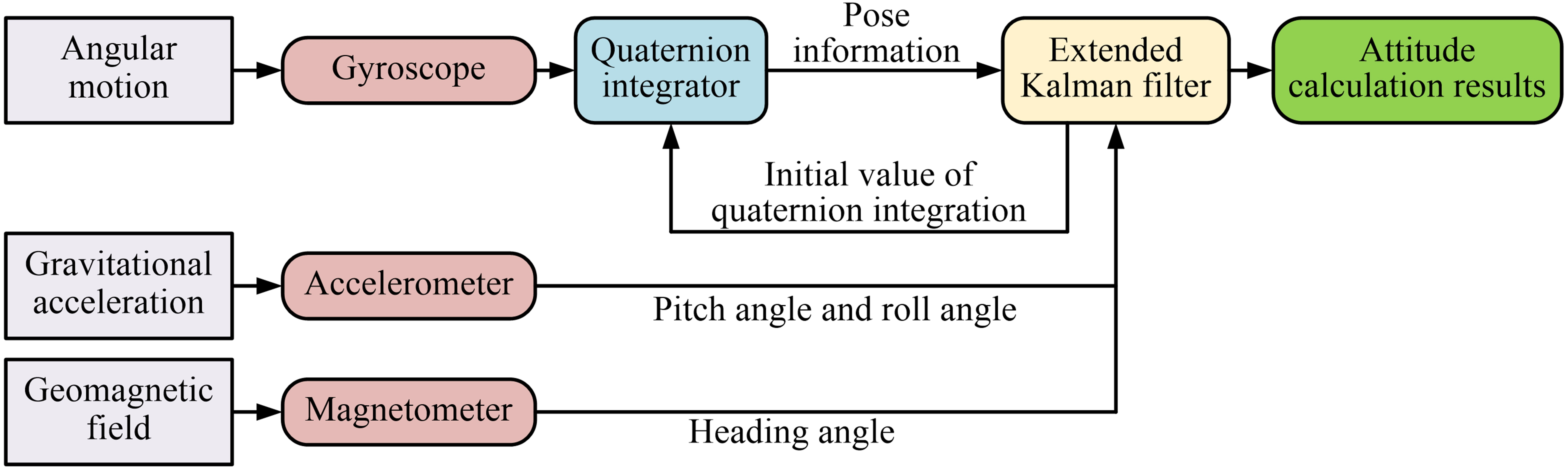

estimation framework structure under the EKF algorithm is Fig. 1.
Fig. 1. Frame diagram of attitude estimation under EKF algorithm.
In Fig. 1, EKF serves as a nonlinear form of Kalman filtering, with the attitude quaternion
of the vehicle as the state variable, the gyroscope reading as the prediction step,
and the attitude angle output from the accelerometer and magnetometer as the observation
update value. The various updated values obtained are processed using EKF, and then
the attitude estimation results are output.
In the EKF algorithm, assuming the state of a nonlinear discrete system is $X$, the
state history at time $k$ is obtained as shown in Eq. (1).
In Eq. (1), $X(k)$ represents the state variable at time $k$. $U$ represents the output variable.
$W$ represents the process noise sampled. $f\left(\cdot \right)$ represents the state
function.
Assuming that the output variable of a nonlinear discrete system is $Z$, the output
variable equation at time $k$ is obtained as shown in Eq. (2).
In Eq. (2), $Z(k)$ represents the output variable at time $k$. $V$ represents the sampled measurement
noise. $h\left(\cdot \right)$ represents the output function.
The statistical characteristics of process noise and measurement noise can be expressed
using Eq. (3).
In Eq. (3), $W(k)$ and $V(k)H$ represent the process noise and measurement noise values at time
$k$, respectively. $W(k)\sim N\left(0,Q\right)$ represents that $W(k)$ is a multivariate
normal distribution with a mean of 0 and a covariance matrix of $Q$. $V(k)\sim N\left(0,R\right)$
represents that $V(k)$ is also a multivariate normal distribution with a mean of 0
but a covariance matrix of $R$.
Considering that both $W$ and $V$ belong to zero mean white noise sequences and are
not correlated with each other, first-order linearization can be applied to Eqs. (1) and (2) to obtain the processed first-order state equation and output equation as shown in
Eq. (4).
In Eq. (4), $A$ and $\Gamma $ are the partial derivatives (PD) of the state function with respect
to $X$ and $W$. and $\wedge $ represent the PD of the output function over $X$ and
$V$, respectively. $\tilde{X}(k)$ and $\tilde{Z}(k)$ are the approximate values of
$X(k)$ and $Z(k)$ at time $k$, respectively. $\hat{X}$ represents a posterior estimate
of $X$.
The Kalman filtering algorithm is applied to the first-order state equation and first-order
output equation in Eq. (4), and the formula for calculating the filter gain is Eq. (5) [13].
In Eq. (5), $K_{g} (k)$ represents the filter gain at time $k$. $\bar{P}(k)$ is the covariance
matrix of the estimation error at time $k$. $H^{T} $ and $\wedge ^{T} $ represent
the transposes of $H$ and $\wedge $, respectively. $R(k)$ represents the covariance
matrix of measurement noise at time $k$. $H(k)$ and $\wedge (k)$ represent the PD
of the output function with respect to $X$ and $V$ at time $k$.
According to Eqs. (1) to (5), the time and state update equation of the nonlinear dynamic model under the EKF
algorithm can be obtained. The update equation for time is Eq. (6).
In Eq. (6), $\bar{X}(k)$ represents the estimated state at $k$. $A(k)$ represents the PD of
the state function over $X$ at $k$. $\hat{P}$ represents a posterior estimate of $P$.
$A^{T} $ and $\Gamma ^{T} $ represent the transposes of $A$ and $\Gamma $, respectively.
The update equation for the state is Eq. (7).
According to Eqs. (6) and (7), different real-time update time values and update status values can be obtained.
The obtained values are filtered and processed, and then the athlete's pose estimation
results are output.
In the accurate estimation of motion attitude, MEMS sensors are widely used in dynamic
data acquisition because of their miniaturization and portability. However, these
sensors are susceptible to various factors during fast or complex motion capture processes,
such as mechanical vibration and temperature changes, which can lead to increased
errors and noise in data acquisition. Especially in the acquisition of angular velocity
and acceleration data, the output data of MEMS sensors often contain large errors
and deviations due to the nonlinear characteristics and limited measurement range,
which will affect the accuracy and reliability of attitude estimation. Therefore,
this study introduces a full angle attitude calculation method (FAACM) to optimize
the EKF algorithm. By considering all possible attitude Angle variations, this method
enables more comprehensive utilization of the output data of MEMS sensors. In addition,
by introducing this method for optimization, nonlinear and high dynamic changes in
MEMS sensor data can be handled more effectively, ensuring the robustness and high-precision
performance of the algorithm in practical applications.
In order to overcome the problem of excessive pitch angle leading to increased error
in roll angle calculation, this study first performs a rotation operation on the coordinate
system, and then calculates quaternions in that rotation coordinate system. Next,
the coordinate system is rotated back to its initial state, and after this process,
the attitude quaternion is obtained. This FAACM can effectively calculate the attitude
angle in a wide range of pitch angles and avoid increasing the error in roll angle
calculation.
Before introducing the rotational coordinate system, the roll angle measured by the
MEMS accelerometer is Eq. (8).
In Eq. (8), $\theta $ represents the initial measured roll angle. $g$ represents gravitational
acceleration. $y_{g} $ represents the projection of gravitational acceleration on
the Y axis. At this point, the formula for calculating the attitude angle is Eq. (9).
In Eq. (9), $\phi $ represents the initial measured attitude angle. $x_{g} $ and $z_{g} $ represent
the projection of gravitational acceleration on the X and Z axes, respectively. Introducing
a new rotating coordinate system, the roll angle and attitude angle under the FAACM
are obtained as shown in Eq. (10).
In Eq. (10), $\theta^{ '}$ and $\phi^{ '}$ represent the roll angle and attitude angle in the
rotating coordinate system, respectively. $y_{g} {}^{{'} } $, $x_{g} {}^{{'} } $ and
$z_{g} {}^{{'} } $ represent the projections of gravitational acceleration on the
Y-axis, X-axis, and Z-axis of the rotating coordinate system, respectively. According
to Eq. (10), further to calculate the value of azimuth, as shown in Eq. (11).
In Eq. (11), $\Psi $ represents the azimuth in the rotating coordinate system. $y^{'}_{2T}$ and
$x^{'}_{2T}$ represent the projections of the geomagnetic field vector on the $Y$-axis
and $X$-axis of the rotating coordinate system, respectively. The quaternion rotating
in a rotating coordinate system is denoted as D, and its expression is Eq. (12).
Combining Eqs. (8) to (12), the formula for calculating the final attitude angle is Eq. (13).
By combining the FAACM based on rotational coordinate system with EKF, the optimized
algorithm is recorded as Extended Kalman Filter Full Angle Attention Estimation Algorithm

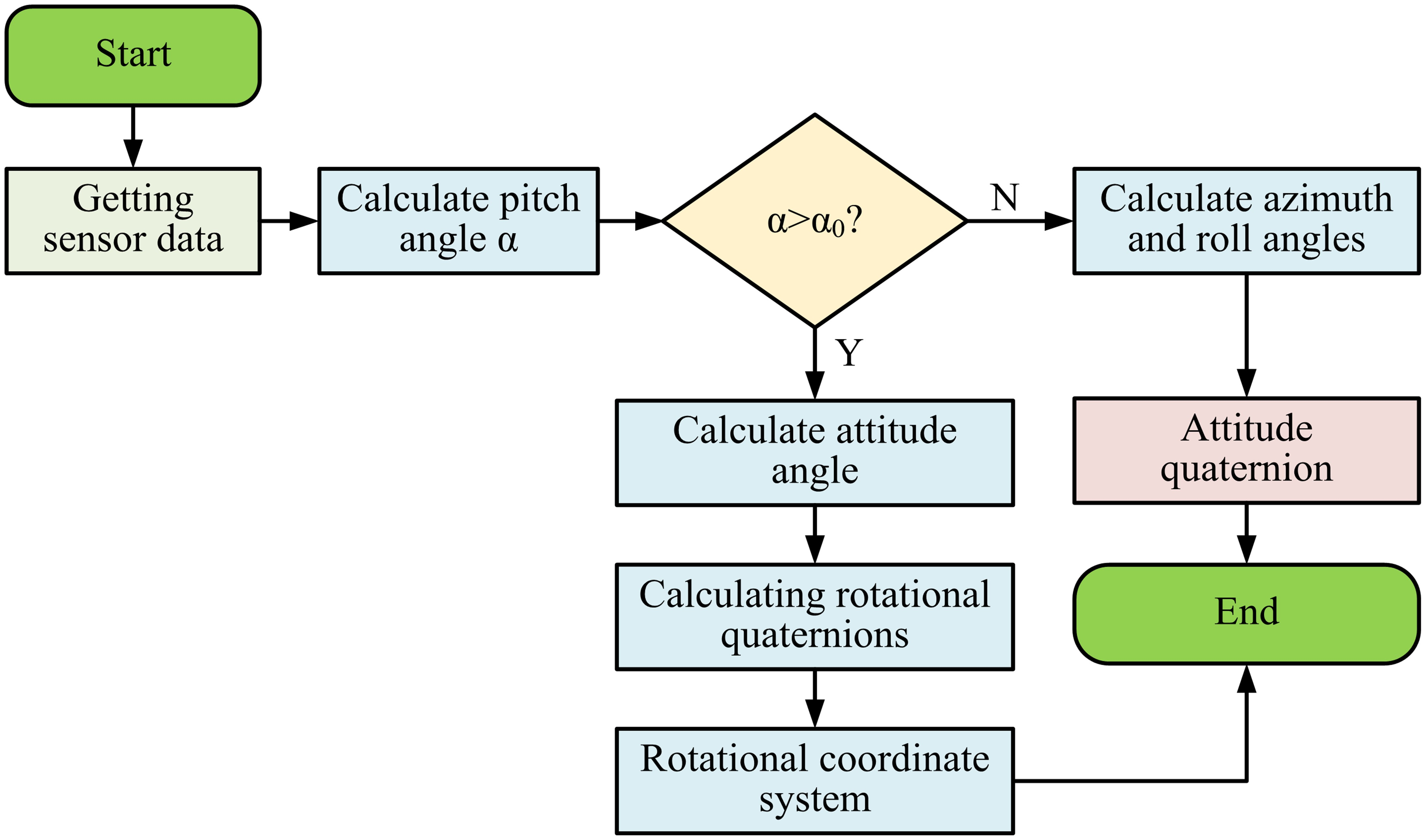

(EKF-FAAEA). The operational flowchart of EKF-FAAEA is Fig. 2.
Fig. 2 shows the operation flow of the EKF-FAAEA algorithm, where $\alpha $ and $\alpha
_{0} $ represent the calculated pitch Angle and pitch Angle threshold respectively.
In Fig. 2, the data of the accelerometer and magnetometer in the MEMS sensor system were first
obtained, and then the pitch angle was calculated using the EKF algorithm. To compare
the pitch angle calculation value with the threshold value. If the pitch angle calculation
value ${\leqslant}$ the threshold value, directly to use EKF to calculate the roll
angle and azimuth angle, then to obtain the quaternion of the attitude angle, and
finally output the result. If the calculated elevation angle is greater than the threshold,
the attitude angle is calculated based on the rotation coordinate system and the quaternion
in the rotation coordinate system is output.
Fig. 2. Flowchart of the operation of EKF-FAAEA.
3.2 Construction of a sports action recognition model integrating FAAEA and MEMS
After completing the optimization design of the EKF-FAAEA algorithm, this study further
analyzed the performance indicators of various MEMS sensors and built a sports action
recognition model combining AEA and various MEMS sensors. The aim of this study is
to collect athlete movement information and perform AE-MR using this model. The action
recognition model built is referred to as EKF-FAAEA-MEMS, and the framework structure
of EKF-FAAEA-MEMS is Fig. 3.

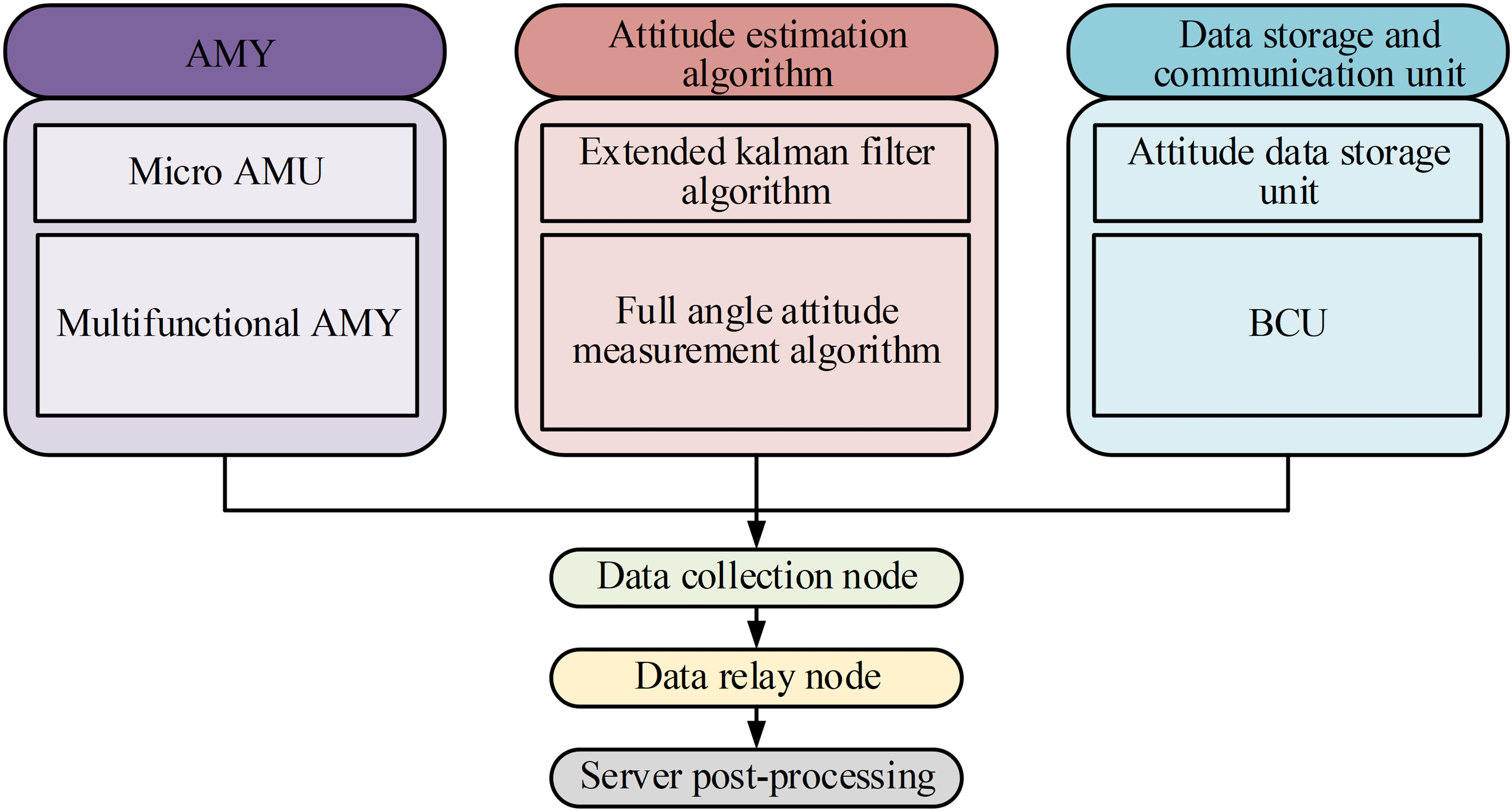

In Fig. 3, the entire EKF-FAAEA-MEMS framework mainly consists of three parts: attitude measurement
unit (AMU), AEA, and data processing and communication (DPC). AMU is composed of various
types of MEMS sensors, which athletes wear on various parts of their bodies to obtain
initial motion data [14]. AEA calculates the posture information of athletes based on the data collected by
AMU. The values calculated by AEA can be stored in the DPC unit, which mainly collects,
stores, and sends real-time data information to the computer to assist operators in
completing final action recognition based on attitude estimation results. The hardware
structure design of EKF-FAAEA-MEMS is Fig. 4.

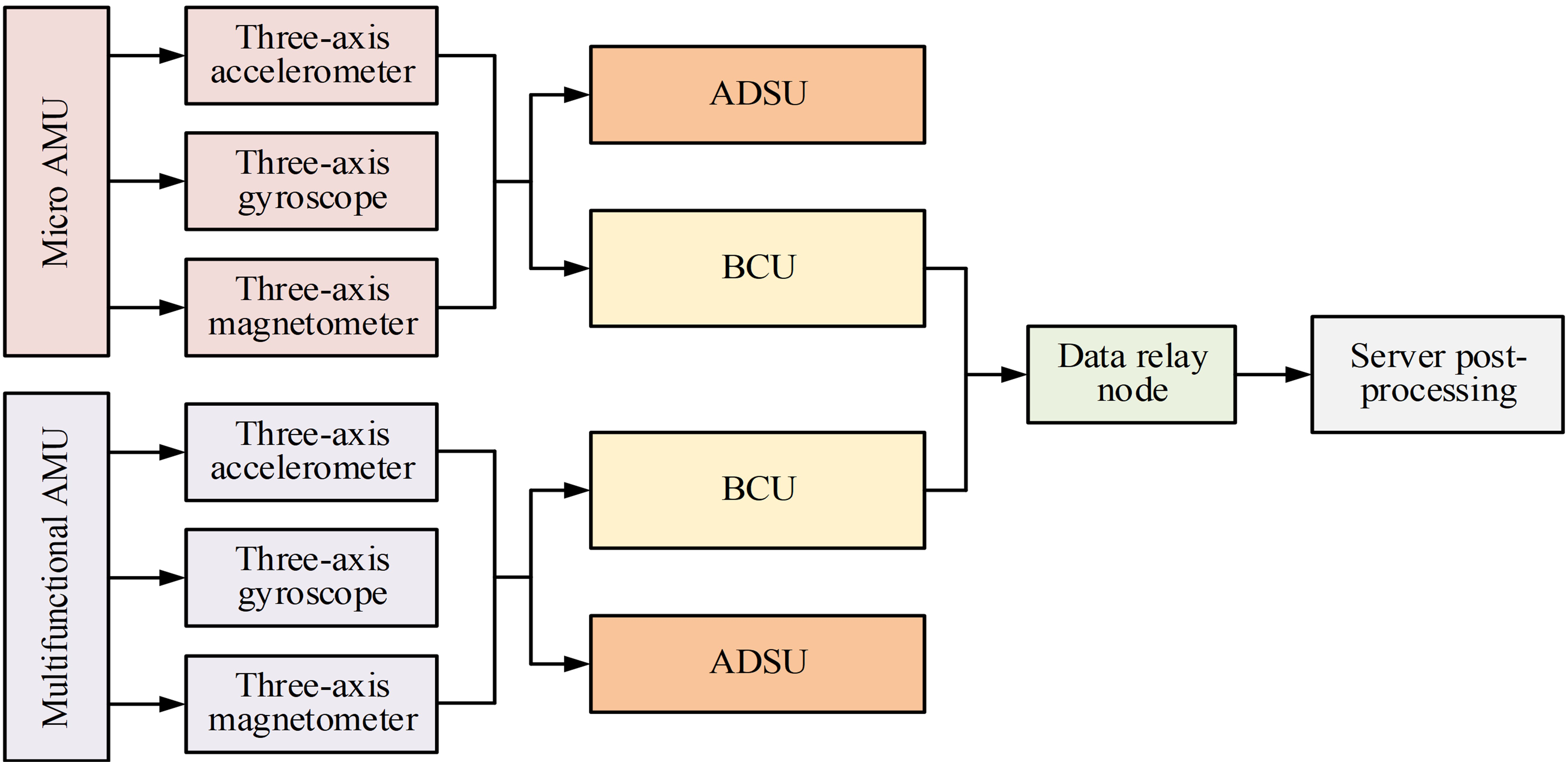

In Fig. 4, the hardware design of the entire model is mainly focused on the AMU and DPC units
[15]. AMU mainly consists of MEMS sensors such as accelerometers, gyroscopes, magnetometers,
and microprocessors. Considering the different requirements for sensor size, wearing
method, and accuracy in practical applications, this study designed two types of AMUs,
one is a small AMU and the other is a multifunctional AMU. The DPC unit includes attitude
data storage unit (ADSU) and Bluetooth communication unit (BCU). ADSU can store various
motion information collected by AMU in a storage card when the data volume is too
large or real-time calculation is not required, and offline data processing can be
performed at this time. BCU is mainly responsible for real-time sending various collected
motion information to data relay nodes, achieving real-time collection, calculation,
and analysis functions of human motion information. The specific composition structure
of AMU is Fig. 5.

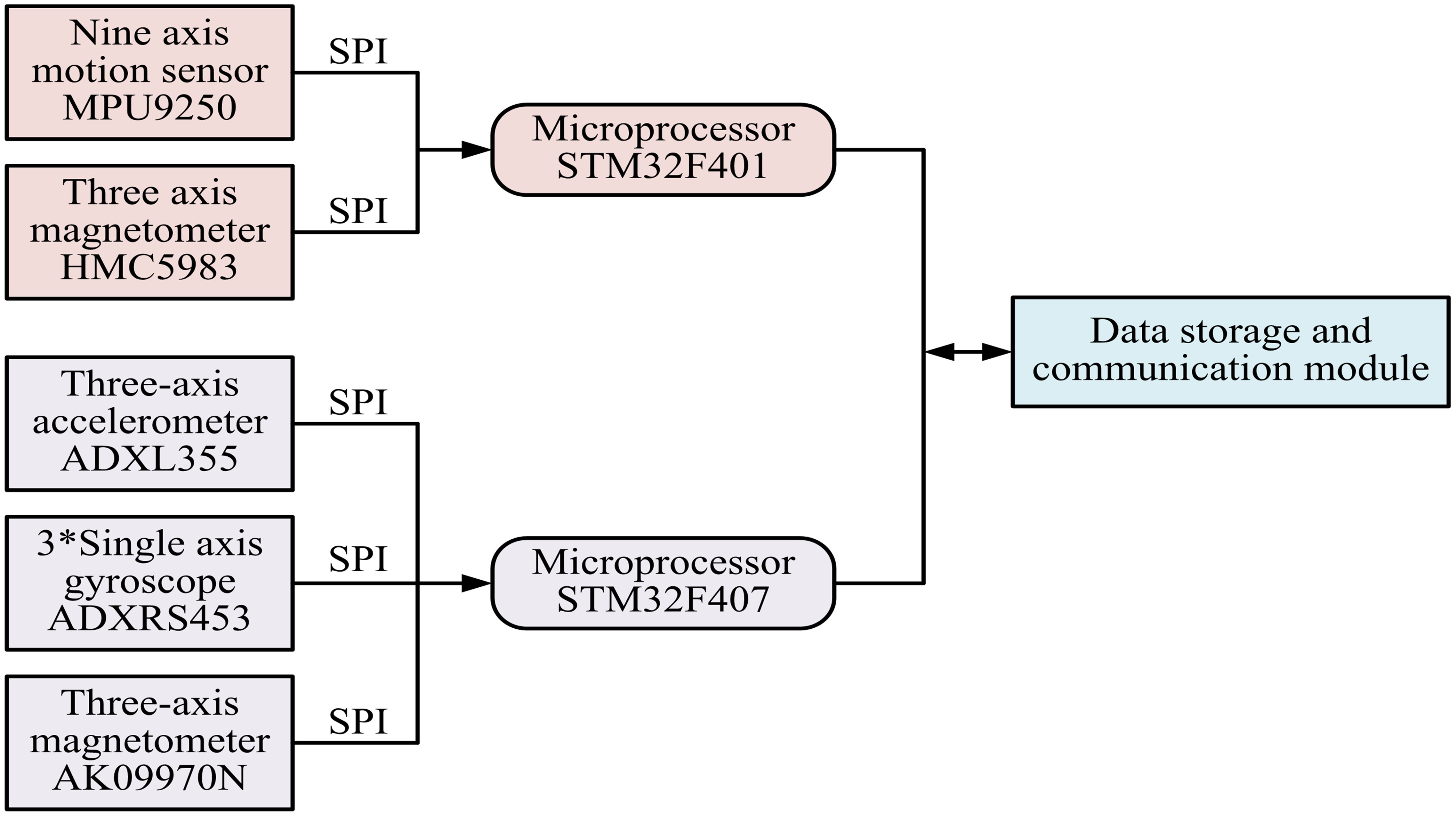

Fig. 5 shows the structural design of miniature AMUs and multifunctional AMUs, where SPI
represents the Serial Peripheral Interface. When designing miniature AMUs, due to
strict requirements for volume and weight, an integrated three-axis accelerometer,
gyroscope, and magnetometer nine axis sensor MPU9250 was chosen. Considering the insufficient
accuracy of the built-in magnetometer in MPU9250, a higher precision three-axis MEMS
magnetometer HMC5983 was used as a replacement, and STM32F401CEU6 was selected as
the microprocessor chip. For multifunctional AMUs, due to lower volume requirements,
higher precision MEMS sensors ADXL355, ADXRS453, and AK09970N, as well as the more
powerful STM32F407VGT6 microprocessor, were selected to meet higher measurement accuracy
and expansion requirements. To enhance the stability of the multifunctional AMU, this
study chose to use the 9-axis motion sensor ICM20948 as a backup for the ADXL355 accelerometer,
ADXRS453 gyroscope, and AK09970N magnetometer to achieve redundant functionality.

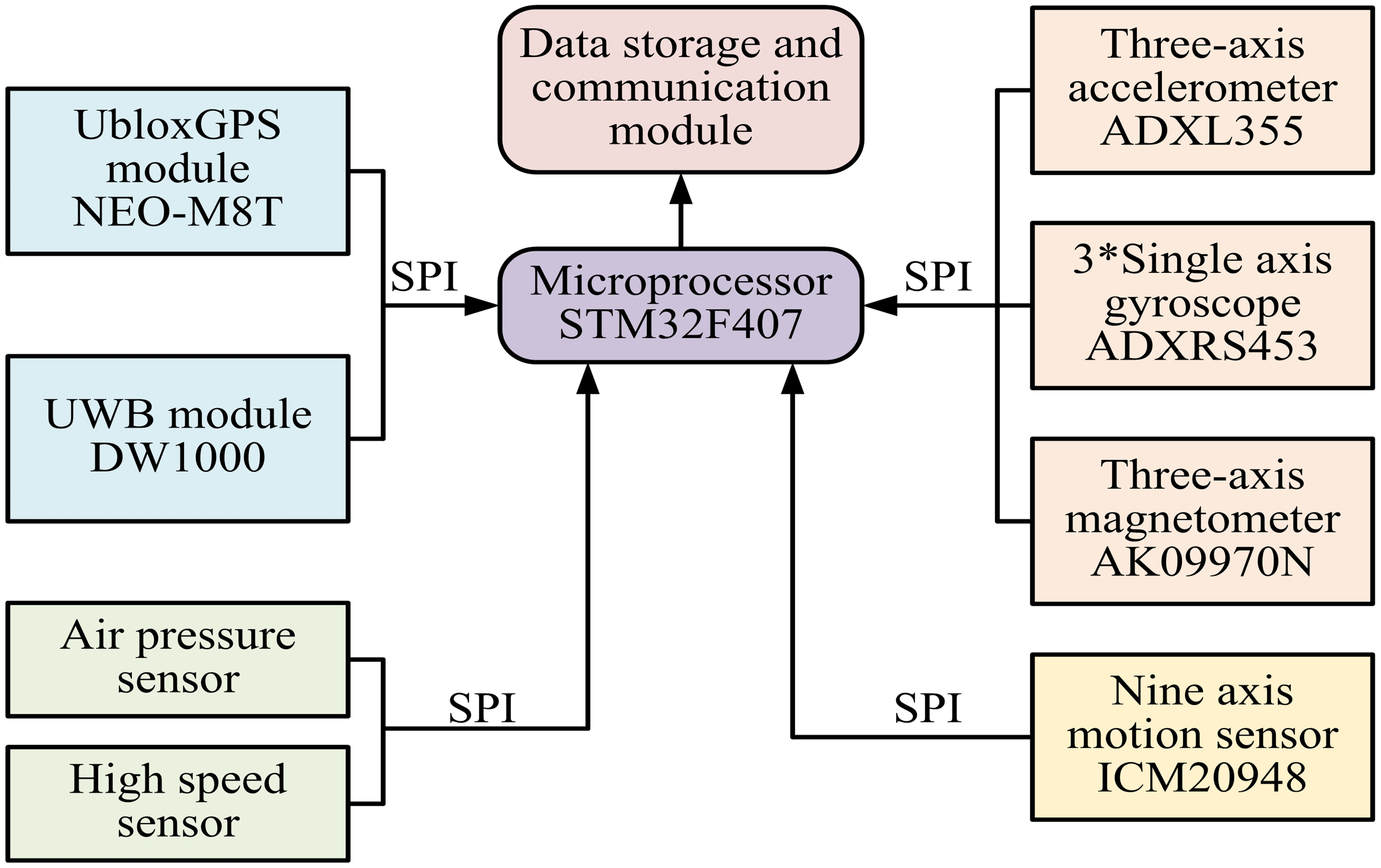

The extended functional structure diagram of the multifunctional AMU is Fig. 6.
In Fig. 6, the expanded multifunctional AMU can add a global positioning system or ultra wideband
chip according to actual needs, thereby achieving indoor and outdoor motion positioning.
Due to its low volume requirements, this unit can expand more human motion information
collection functions and is suitable for installation on the waist, back, or sports
equipment of the human body. In addition to global positioning systems and ultra wideband
chips, pressure sensors and airspeed sensors can also be integrated to measure the
height and speed of movement. The expanded multifunctional AMU is more conducive to
posture measurement during winter sports.
Fig. 3. EKF-FAAEA-MEMS framework diagram.
Fig. 4. EKF-FAAEA-MEMS hardware structure design diagram.
Fig. 5. Design of the two components of the AMU.
Fig. 6. Extended structure of the multifunctional AMU.
