3.1. Model Design for Pronunciation Classification Based on Improved DBN Network

To improve the recognition of pronunciation errors in online ELLs, it is necessary to categorize and identify the types of online ELL pronunciation to improve the overall recognition and error detection. In deep neural networks, DBN can use multilayer neural network with feature detection for hierarchical learning. The hierarchical learning by detecting neurons is able to obtain the corresponding features, which in turn are able to perform backpropagation in the learning process, thus achieving global optimization. Therefore, it is studied to utilize DBN for articulatory speech features for spectrogram features and acoustic features ^{[15- 17]}. The network is a kind of deep neural network built on statistical mechanics, which is able to complete the description of the speech spectrogram and acoustic features through the energy function and probability function. The energy function is mainly used to represent the energy values in different PC error detection cases, and the optimal PC results can be determined by comparing the energy values in different cases. The probability function, on the other hand, is used to calculate the probability values of different PC results, and by comparing the magnitude of the probability of different results, the final PC result can be determined ^{[18, 19]}. Multiple Restricted Boltzmann Machines (RBMs) are stacked to construct the DBN network. In RBM, $v$ denotes the input speech spectrogram, $h$ denotes the probability values, and $n$ denotes the hidden layer. The study can independently activate the visible layer unit if the hidden layer unit’s status is set in the RBM. Currently, the energy in this RBM may be computed by defining the formula. Eq. (1) illustrates the energy definition calculation formula.

In Eq. (1), $\theta$ denotes the set of all parameters in the RBM. $a_i$ and $b_j$ denote the bias values in the corresponding cells $i$ and $j$ in the visible cell $v_i$ and hidden cell $h_j$, respectively. $W_{ij}$ denotes the connection weight value in visible cell $v_i$ and hidden cell $h_j$. When the energy-defined parameters are determined, their corresponding joint state distributions can be expressed by Eq. (2).

In Eq. (2), $Z(\theta)$ denotes the allocation function. The activation probability of the visible units at this point in the online ELL speech classification process can be described by Eq. (3), since the RBM is activated in the state of distinct hidden units given the visible units.

Eq. (4) can be used to determine the nodes of the hidden layer based on the estimated activation probability of the visible units and voice sampling. This yields the output probability of the hidden layer.

When performing pronunciation training for online ELL, the study utilizes the RBM model to capture deep features in the speech data. The activation states of each neuron in the RBM can be determined by computing the output probability of the hidden layer. These states are essentially a coded representation of the input speech data. To maximize the model’s performance, the study trains the RBM on feature data, attempting to teach it the statistical laws found in the speech data. The likelihood function has a very important role in this process. The likelihood function describes the probability that the model produces the observed data and is the basis for evaluating the merits of the model parameters. By maximizing the likelihood function and using it as a basis, the optimal set of parameters can be found. The model fits the training data more closely when the ideal parameter set is used, and the training fit to the online ELL pronunciation data is made possible by choosing the right parameter set ^{[20- 22]}. To increase the accuracy of data classification, the settings of the English speech classification training procedure can be updated after the training fit is finished. At this point, Eq. (5) can be used to represent the new parameter set training criterion if the number of samples in the English PC training is T.

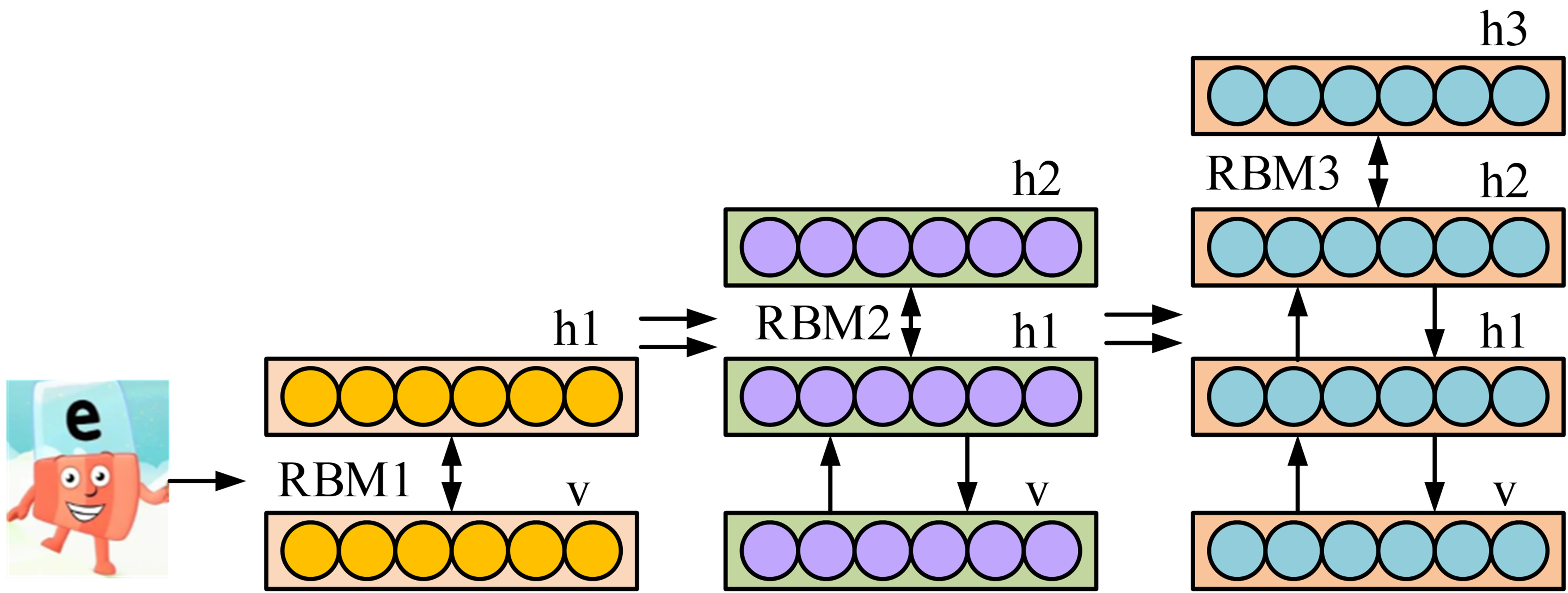

Fig. 1. Flowchart of DBN online English learning pronunciation classification model based on RBM improvement.

On the new parameter set training criterion, the study utilizes the stochastic gradient method to deal with the values of the likelihood function on the English pronunciation training data, at which time the corresponding updated parameter criterion can be expressed by Eq. (6).

In Eq. (6), $\varepsilon$ denotes the updated pronunciation feature learning efficiency. Taken together, the above studies using the RBM revealed that the process of training online ELL speech PCs in a DBN network first requires initialization using the BRM. The updated variables for each parameter are retrieved from the sampled data and used as the basis for parameter refreshing. The initialization serves as the basis for faster sampling. The final step is to repeat the training cycle to obtain a model that can be used for classification.

Since the feature data obtained in the English PC recognition process are all real-type data, it is insufficient to use only RBM for DBN bottom layer construction. Using a single RBM to construct the lower layer of the DBN network will reduce the performance and effectiveness of the DBN network. This is because a single RBM can only capture local features and cannot capture global features well, while DBN networks need to capture global features for better feature learning and classification tasks ^{[23, 24]}. Therefore, to increase the network’s efficiency and performance, the research must build the DBN network using multi-layer RBM. Fig. 1 displays the flowchart of the study’s enhanced DBN online ELLPC model, which is based on RBM.

Combined with Fig. 1, it can be noted that when using the improved DBN to classify pronunciation, the data is passed from top to bottom through the RBM in the top layer. By utilizing the top RBM in the DBN network to alternate sampling with the RBMs of other layers, the balance of the pronunciation data can be significantly improved. This not only improves the robustness of the model, but also improves the overall running speed of the model.

3.2. Construction of Pronomination Categorization Error Checking Model Based on DBN Network and SVM

The analysis of the improved DBN network model reveals that the model can effectively classify the pronunciation, and the next step is to conduct an error detection study on the classification. In online ELLPC error detection, PED is based on the phonemes and observation vectors of the pronunciation to decide whether the detected pronunciation is normal or not. The detection process can be defined by a formalization, and the definition can be represented by Eq. (7).

In Eq. (7), $q$ denotes isolated articulatory phonemes and $o_1^T$ observation vector. 1 denotes correct pronunciation and 0 denotes mispronunciation. The study conducts PC error checking is to decide whether $o_1^T$ and $q$ are pronounced correctly during the articulation process. At this point the study formalizes the PED pattern classification process, which can be expressed in Eq. (8).

Combined with the analysis of Eq. (8), it can be noted that the acoustic layer needs to be modeled when modeling the correct and incorrect articulation of articulatory phonemes, which will increase the labeling workload. To reduce the difficulty of building the error detection model, the study reduces the spatial complexity of the features by transforming the dimensionality of the collected phoneme features to meet the requirements of error detection. The process of reducing the spatial complexity of the features can be expressed in Eq. (9).

In Eq. (9), $xp$ denotes the model acoustic computational parameters and $yp$ denotes the modeled features. After completing the feature training using the DBN model, the study introduced SVM into the model. That is, SVM is used as the final PED classifier in the top layer of the DBN model. PED using SVM is to model each type of pronunciation error one by one, and after the modeling is completed, the posterior probabilities (PostPs) of all classification models are calculated, and the type of error with the largest a PostP value is used as the representative model of the current error ^{[25, 26]}. The study first obtains the score domain after transforming the feature domain by the classification model, and then uses SVM to train in the score domain using manually labeled pronunciation error types. Fig. 2 is the schematic diagram of SVM-based score region division.

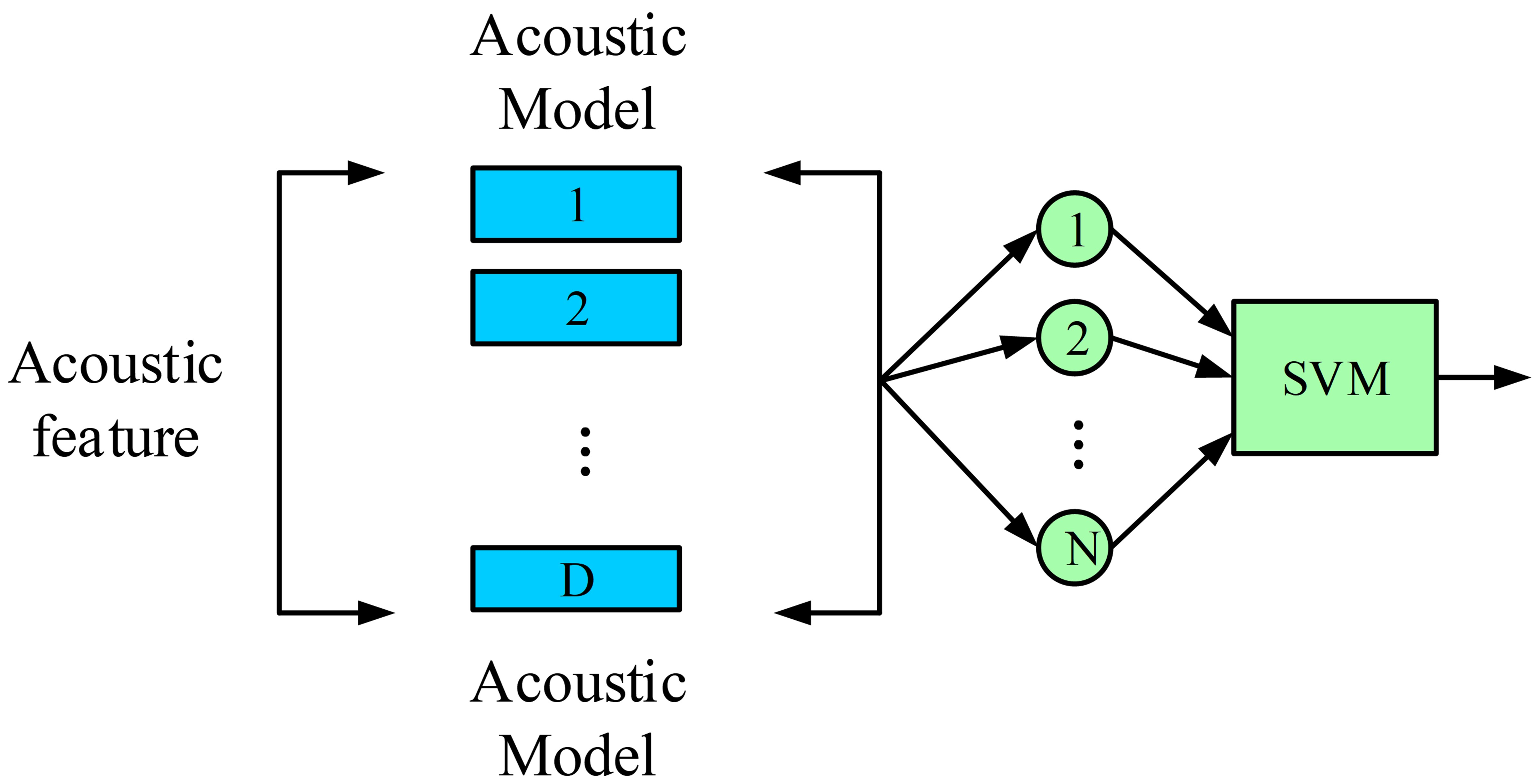

Fig. 2. Schematic diagram of score region division based on SVM.

Based on the DBN classification, when using SVM for classification error checking, it is studied that the classification error checking is defined to be performed in all classifiers as a way to improve the coverage of classification error checking. The distance from the point to the classification surface must be precisely described in the parameter solving procedure ^{[27, 28]}, and Eq. (10) can be used to express this distance. This process uses margin to obtain the classification error detection parameter.

In Eq. (10), $t_n$ denotes the category information corresponding to the definition process, $x_n$ denotes the training samples, and $w$ denotes the training classifier parameters. To meet the criteria for judging the distance between the points and the classification surface distance, the correct scaling factor must also be selected during the classification error checking process. This scaling factor can be expressed using Eq. (11).

In Eq. (11), $t_{\hat{n}}$ is the characteristics of the point and $x_{\hat{n}}$ is the target category. By determining the distance between the point and the categorization surface in the process of classification error detection, it is possible to more accurately determine the correct and incorrect pronunciation. A schematic diagram of Margin-based SVM classification error detection is shown in Fig. 3.

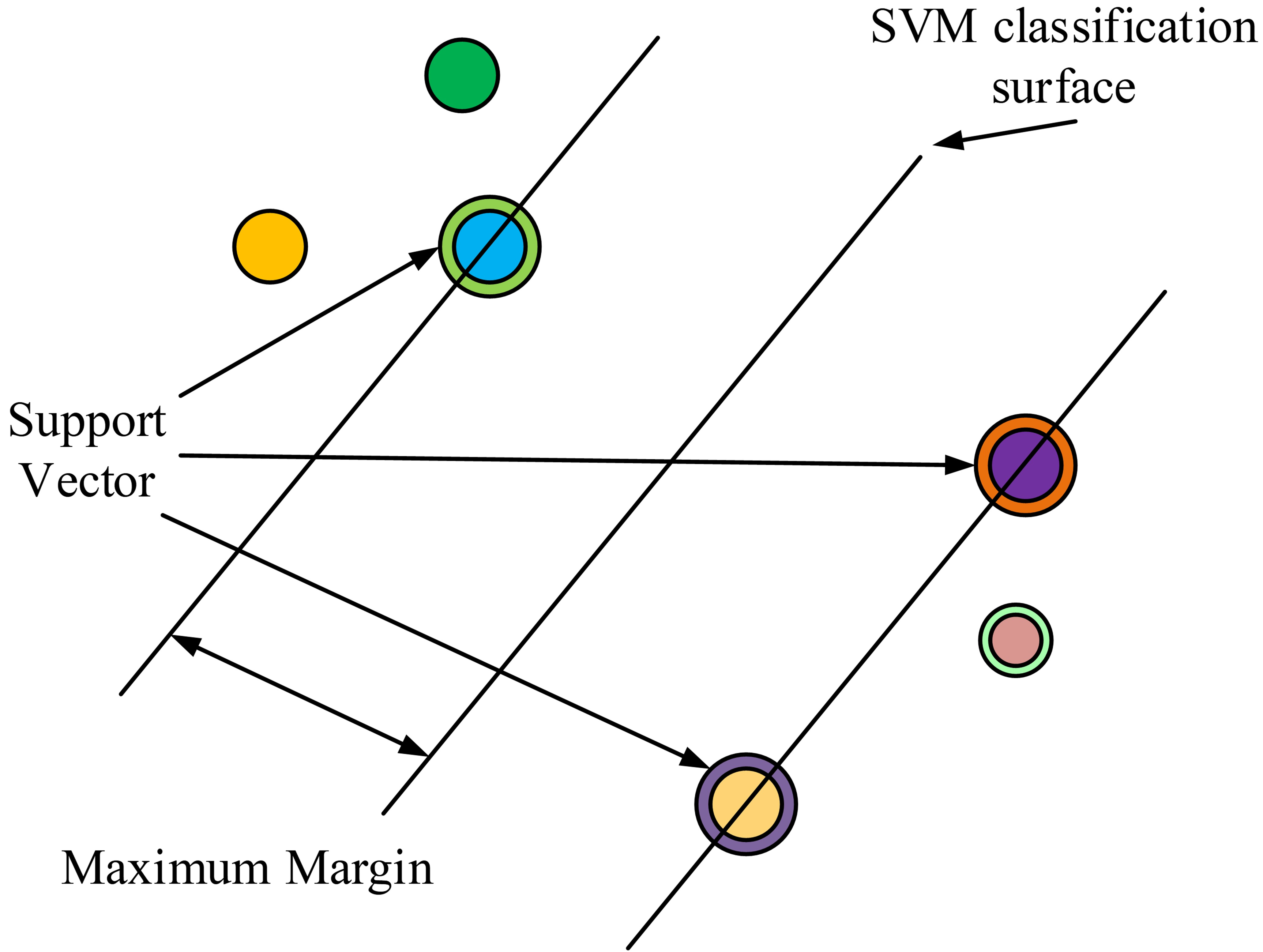

Fig. 3. Schematic diagram of SVM classification error detection based on margin.

After completing the task of maximum classification error detection, the study utilized Margin to transform the score domain features to be able to accurately detect the set of samples that need to be PED. In the process of classification error detection using the DBN-SVM model, it is first necessary to extract the acoustic feature values corresponding to each phoneme from the given articulatory data. These eigenvalues can accurately reflect the key information of pronunciation such as sound quality, sound length and pitch. These features are then detected using the trained DBN-SVM model and the corresponding score domain features are calculated. Lastly, manual labeling must be combined with classification error detection to assure the correctness of the latter. This involves carefully evaluating and validating each sample’s labeling findings. This not only ensures the accuracy of the training data, but also provides corresponding data support for the subsequent formation of an effective error detection classifier ^{[29, 30]}. The training data can be used to create an efficient classifier for error detection, as shown in the training flowchart of the PED classifier in Fig. 4.

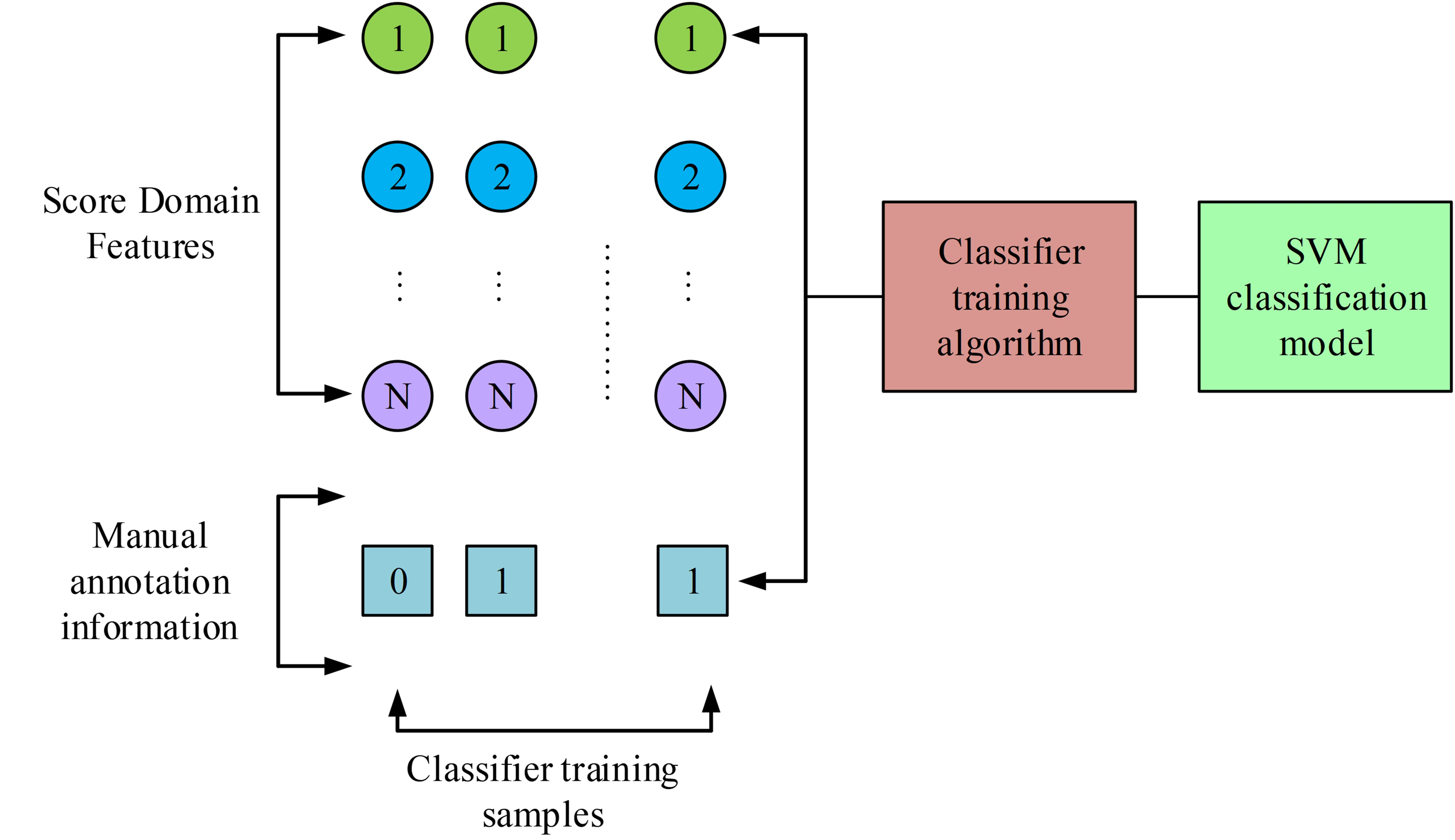

Fig. 4. Training flowchart of pronunciation error detection classifier.

The analysis of the PED classifier shows that in the PC fault detection process, due to the presence of false alarms and omissions, this leads to an increase in the type of faults. To solve this problem, the study adds a heuristic strategy to the DBN-SVM model, which utilizes a heuristic decision criterion for the calculation of the posterior probability, and the calculation process can be represented by Eq. (12).

In Eq. (12), $P(A,B)$ is the a PostP of error $A$ for categorization check error data $B$. $P(B,A)$ is the a PostP of error $B$ for categorization checking wrong data $A$. $P(A)$ is the a priori probability (PriP) of error $A$. $P(B)$ is the a PriP of detecting classified errors, $B$. After addressing false alarms and missed detections using heuristic strategies, the study redefined the differentiation function for error detection and classification. The redefined function can be expressed by Eq. (13).

In Eq. (13), $Y$ denotes the value of feature dimension and $N$ is the samples in the model. The definition of the differentiation function will be able to realize the error checking problem in different false alarms and omissions, thus improving the reliability of error checking. Fig. 5 displays the PCECM flowchart, which is based on DBN-SVM.

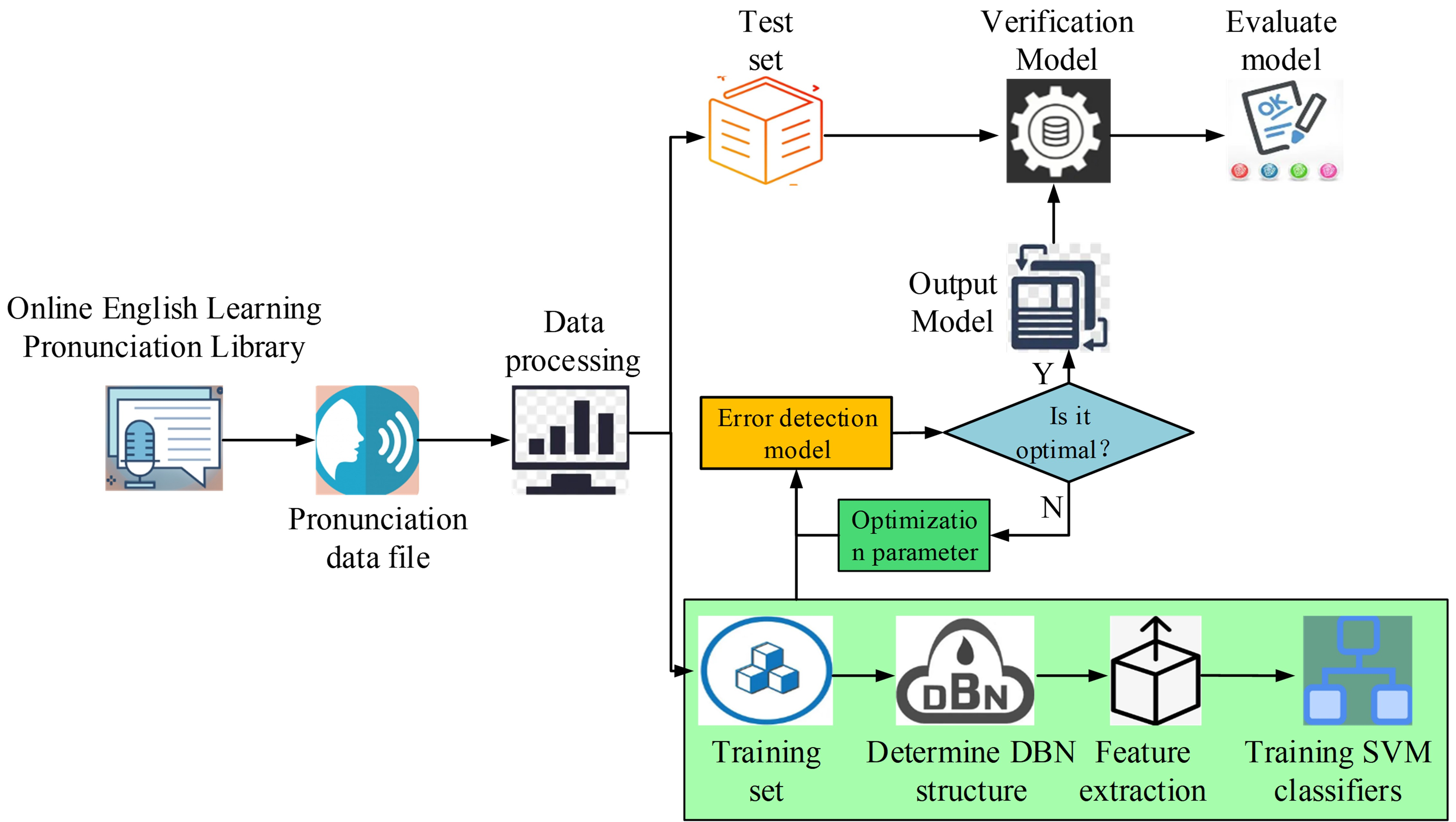

Fig. 5. Flowchart of pronunciation classification error detection model based on DBN-SVM.

Combined with Fig. 5, it can be noted that the process of error detection for online ELLPC using the model is as follows: firstly, data acquisition, which obtains the data from the online ELL pronunciation library and aligns the speech with sentences, words and phonemes as a way of obtaining the PED categorization dataset. Second, data pretreatment aims to normalize the data so that the data used for error detection fall within a certain range and the variability between data sets is minimized. Again, it is to design the DBN structure using RBM: DBN construction using RBM can determine the hidden layer, visible layer, processing parameters and other information of DBN. Next is parameter training for RBM: parameter training for RBM can help improve the accuracy and performance of the model. The next step involves training the network’s RBMs one layer at a time to extract data features from the deep network. Continue training the parameters until each RBM in the DBN network has completed its training. The assessment of the model’s performance comes last, when the metrics are assessed in light of the test findings.

4.1. Data Processing Performance Analysis of Pronunciation Categorization Error Checking Model for DBM-SVM

In order to fully evaluate the performance of the fusion DBN-SVM PC error detection model, Hidden Markov Models (HMM) and Mel-frequency cepstral coefficients-Support Vector Machines (Mel-frequency Cepstral Coefficients-Support Vector Machines (MFCC-SVM) are studied. These models are chosen as benchmarks for comparison because of their wide application and acceptance in the field of speech recognition and PC. HMM is widely used to model speech signals because of its advantages in processing time series data, although it has limitations in dealing with individual pronunciation differences and dynamic environmental changes. Mfcc-svm combines the generality of MFCC features with the classification capabilities of SVM, although MFCC features may not fully capture all complex pronunciation features, and SVM is sensitive to feature selection and preprocessing steps. The study carefully controlled the experimental conditions and used Matlab 7 simulation software as the test platform to ensure the fairness and accuracy of the comparison. To guarantee the correctness and integrity of the audio stream, the study fixed the number of sample points at 120. To capture the minute variations in the pronunciation process, 100 kHz is chosen as the frequency of pronunciation feature extraction. The study gathers a total of 1026 audio data segments of online ELL pronunciation in order to guarantee the validity of the simulation experiment outcomes. After screening, 983 audio segments finally meet the experimental requirements and are used to construct the dataset for evaluating the PCECM of DBN-SVM.

To validate the data processing ability of the DBN-SVM model in the PED process, the study uses the training function loss value and BLEU score as validation metrics, and uses HMM, MFCC-SVM, and DBN-SVM for comparison. Fig. 6 displays the findings of the comparison between the three models’ BLEU scores and training loss values.

Fig. 6. Comparison results of training loss values and BLEU scores for three models.

In Fig. 6(a), the loss values of the three models in training increase significantly with oscillations as the training progresses. Among them, the loss value of DBN-SVM tends to stabilize at 869 iterations and no longer changes significantly, the loss value of MFCC-SVM tends to stabilize at 1357 iterations, and the loss value of HMM tends to stabilize at 1403 iterations. In Fig. 6(b), all three models have good scores in data BLEU, the score of DBN-SVM is 0.85, and the BLEU scores of MFCC-SVM and HMM are 0.81 and 0.79, respectively. This displays that the DBN-SVM model constructed by the study has a higher reliability in data processing of PC error checking, and it has a certain degree of superiority in data processing. To improve the data processing performance of the DBN-SVM model, the penalty parameter can regulate the complexity of the model, prevent overfitting, and improve the accuracy and generalization ability of the model. On the other hand, the vector base parameter might influence the model’s stability and rate of convergence, assisting it in finding the best solution more quickly. Fig. 7 illustrates the DBN-SVM model’s data processing accuracy as a function of various vector basis and penalty parameters.

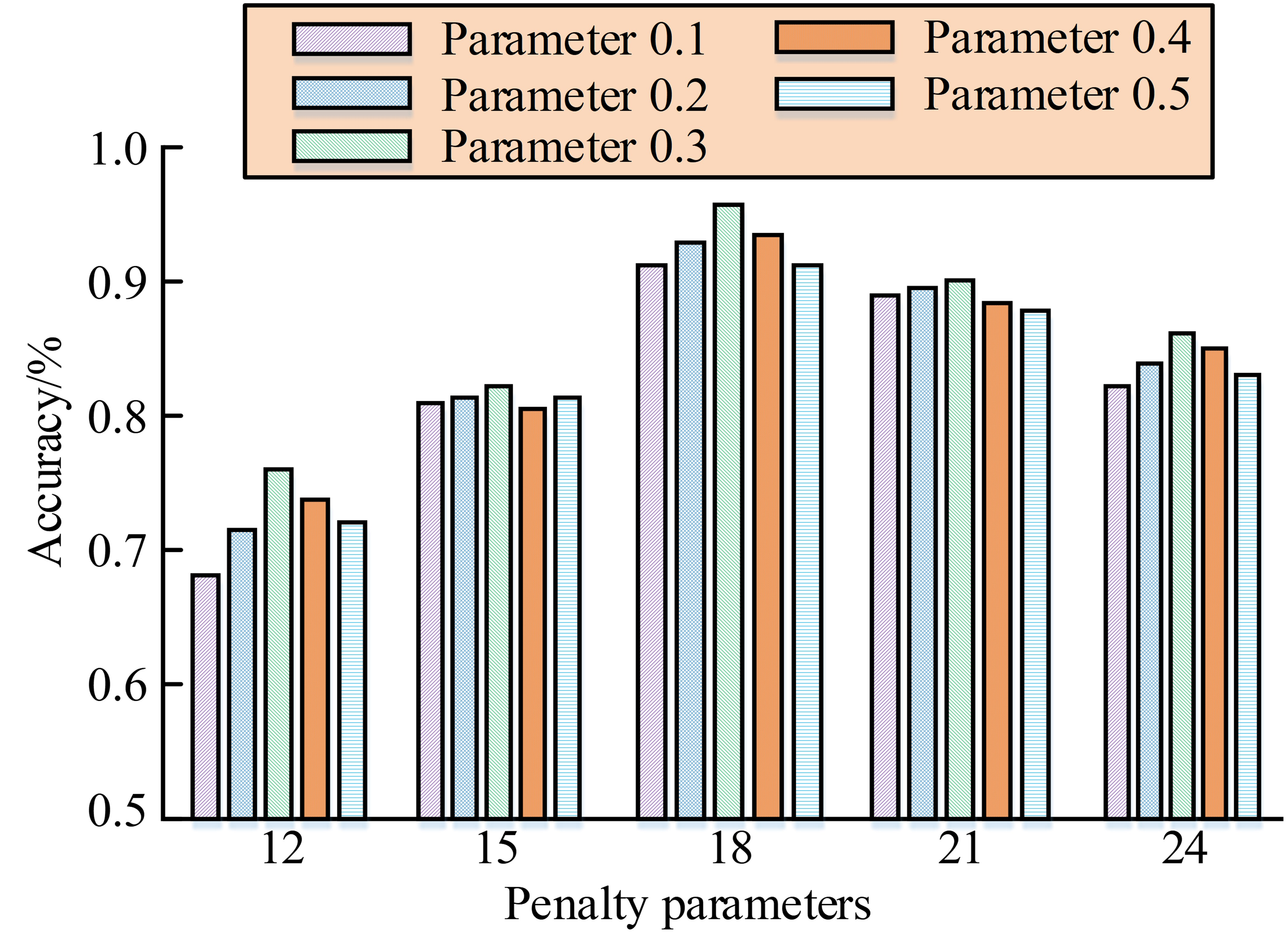

Fig. 7. Data processing accuracy of DBN-SVM model under different influence of basis and penalty parameters.

Fig. 7’s comparison analysis reveals that the accuracy rate of data processing exhibits a tendency of growing and subsequently falling with a rise in the vector base parameter and the penalty parameter. The maximum accuracy rate of data processing occurs when the vector base parameter value is 0.3 and the penalty parameter is 18. This indicates that by adjusting these two parameters, the model can be better adapted to the actual situation and improve the effect and performance of PCECM. The study uses the F1 value and error detection accuracy rate as validation indices to look into the models’ data processing performance. The findings of this comparison of the three models’ F1 values and detection accuracy rates are displayed in Fig. 8.

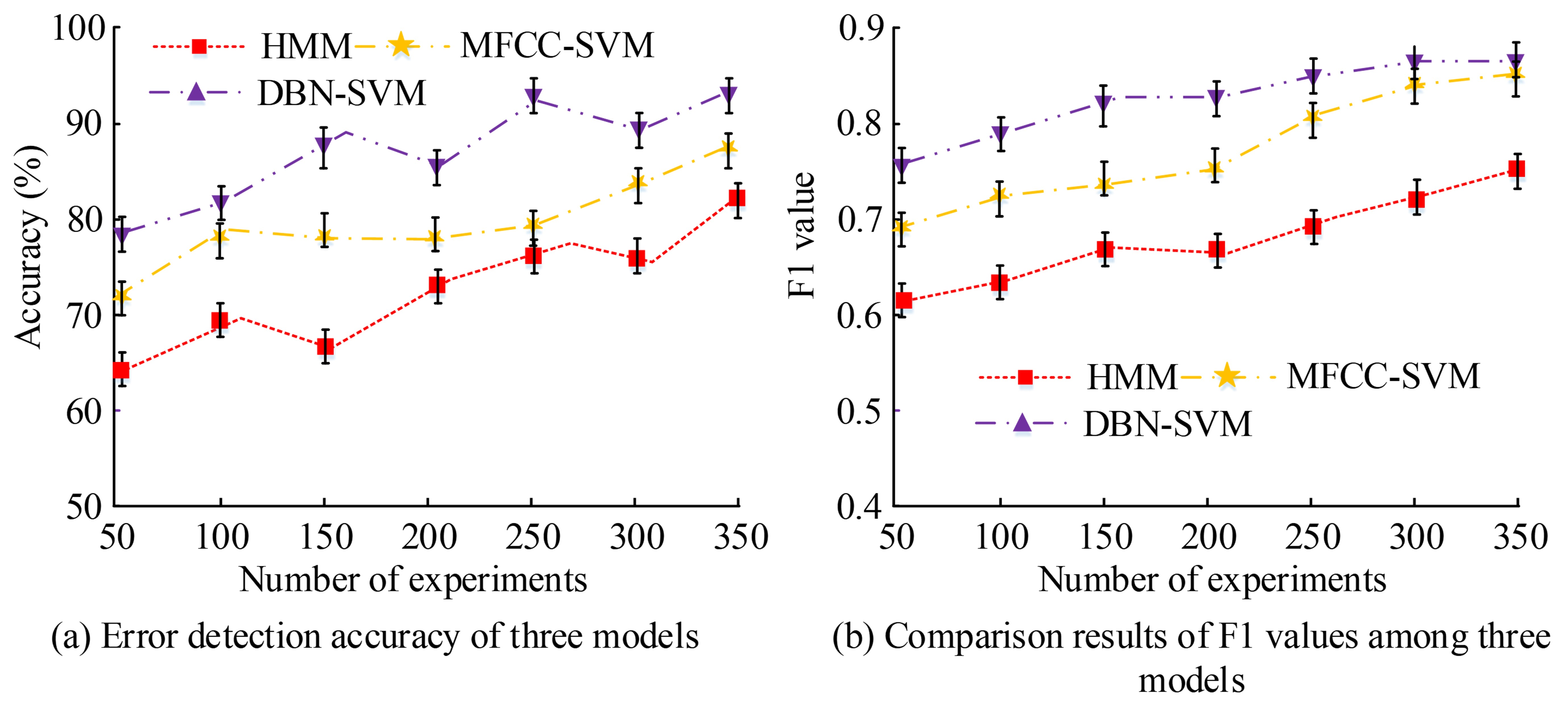

Fig. 8. Comparison results of detection accuracy and F1 value of three models.

In Fig. 8(a), there is a certain gap between the error detection ability of the three models in the pronunciation data error detection process. The highest error detection accuracy is DBN-SVM, followed by MFCC-SVM and HMM, and the error detection accuracies of the three kinds are 91.69%, 85.19%, and 80.66%, respectively. The data processing ability and robustness of the research-constructed model are demonstrated by the F1 values of DBN-SVM, MFCC-SVM, and HMM in the data error detection process, as illustrated in Fig. 8(b), which are 0.83, 0.79, and 0.72, respectively. The study employs the PED capture accuracy as a validation metric for performance analysis in order to further validate the DBN-SVM model’s performance. Fig. 9 displays the comparison findings of the three models’ PED capture accuracy and capture error.

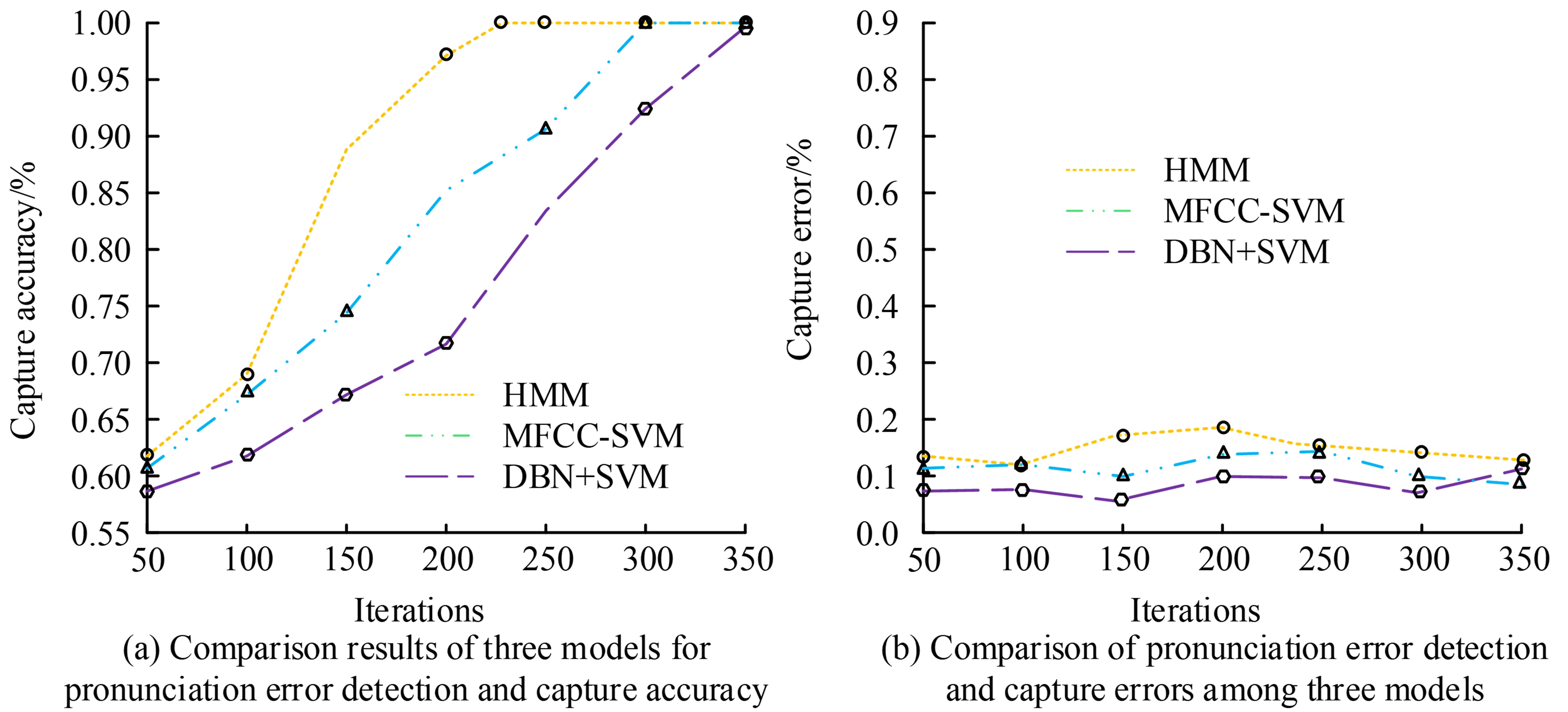

Fig. 9. Comparison results of pronunciation error detection capture accuracy and capture error of three models.

In Fig. 9(a), in the comparison of data capture accuracy for PC error checking, all three models achieve 100% capture accuracy at the end of iterations. However, the DBN-SVM model has accomplished 100% capture accuracy at the end of 206 iterations. The MFCC-SVM reaches 100% capture accuracy at the end of 273 iterations. the HMM accomplishes 100% capture accuracy only at the end of 350 iterations. In Fig. 9(b), the capture errors of DBN-SVM, MFCC-SVM, and HMM are 7.31%, 10.93%, and 14.37%, respectively, in the capture of PED errors. This indicates that the model constructed in the study is able to accomplish the data acquisition in the PC error checking process with a smaller number of iterations, and the acquisition accuracy can fully meet the daily requirements.

4.2. Performance Analysis of Pronunciation Categorization Error Checking Model Application for DBM-SVM

To validate the application performance of the PCECM with DBN-SVM constructed by the study, the study validates the error detection performance for monosyllables, disyllables and polysyllables in English pronunciation. The comparison results of the three types of syllables’ error detection accuracy and error rate in the DBN-SVM model are displayed in Fig. 10.

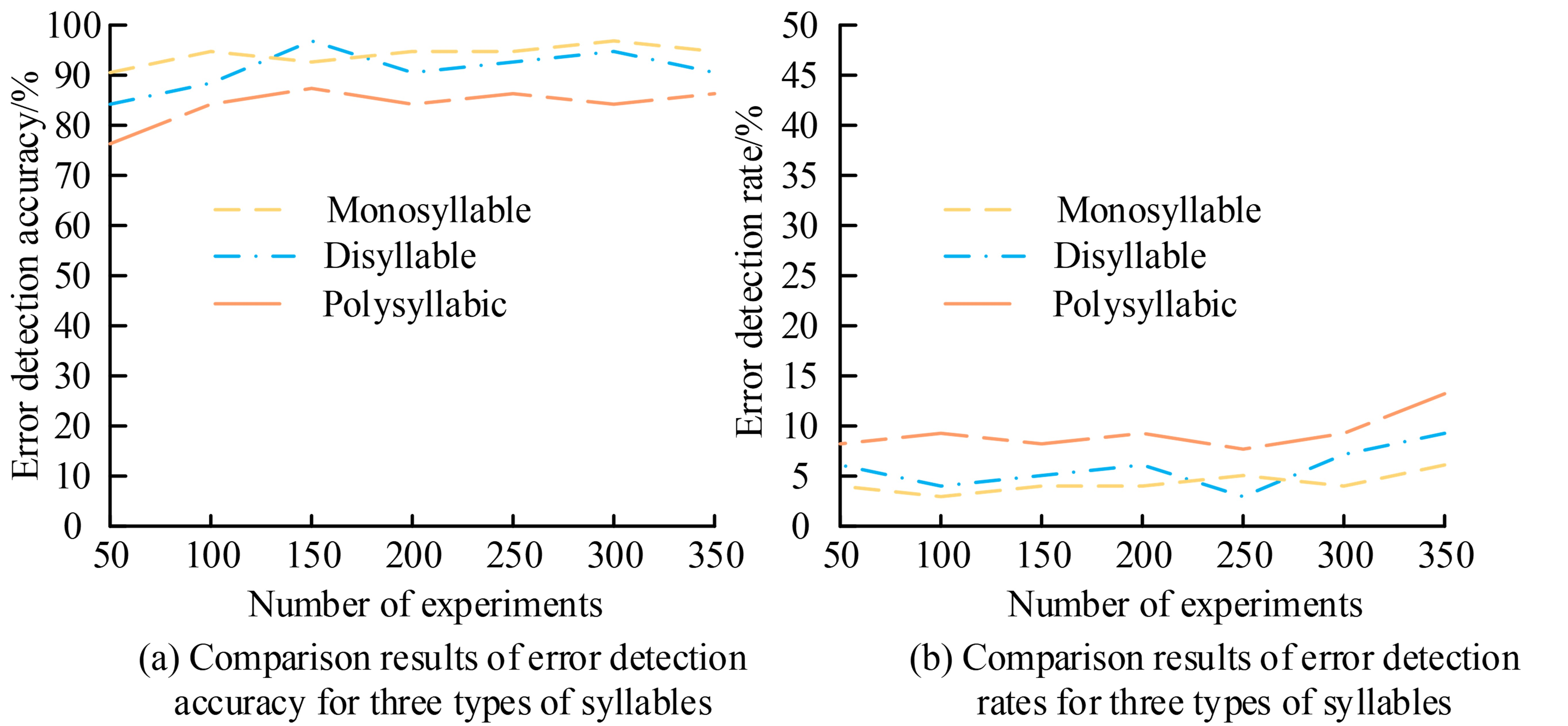

Fig. 10. Comparison results of error detection accuracy and error rate of three syllables in the DBN-SVM model.

In Fig. 10(a), the error detection efficiency of polysyllabic words is lower than that of disyllabic and monosyllabic words in the PC error detection process for the three syllables. This is because multisyllabic words tend to contain more syllables and phonemes, leading to more confusion and errors in the pronunciation recognition and classification process. In addition, polysyllabic words may contain more phonetic variations and rules of alliteration, making error detection more difficult. In contrast, disyllabic and monosyllabic words tend to be simpler and more straightforward, with more fixed and stable pronunciation rules, making it easier to achieve high efficiency in PC error detection. The accuracy rates of monosyllabic, disyllabic and polysyllabic words are 95.07%, 93.72%, and 88.69%, respectively. In Fig. 10(b), in the comparison of error detection error rates for the three syllables, monosyllables have the lowest error detection rate. The error rates of detection for monosyllables, disyllables, and polysyllables are 4.39%, 6.13%, and 8.92%, respectively. This indicates that the model constructed in the study can effectively accomplish the error detection of multiple syllables. Further, more advanced Convolutional Neural Networks (CNNs) and Transformer models are added for comparison, and the results are shown in Table 1.

In Table 1, the DBN-SVM model has shown excellent performance in all key performance indicators, with an accuracy rate of 94.12%, a recall rate of 93.56%, and an F1 value of 0.92, all of which are better than other comparison models, including traditional HMM and MFCC-SVM. As well as advanced CNN and Transformer models. The DBN-SVM model not only has excellent performance in classification accuracy, but also has obvious advantages in training efficiency, with a training time of 3500 s and a test time of 0.48 s, which is much lower than the CNN and Transformer models, making DBN-SVM more attractive in OL environments that require fast response. In addition, the DBN-SVM model has 200K parameters. Compared with CNN and Transformer models with a large number of parameters, its model complexity is lower, which helps to reduce the risk of overfitting and improve the generalization ability of the model. These results show that the DBN-SVM model provides an excellent balance between accuracy and efficiency in the PC error detection task, which is particularly suitable for online English learning platform applications.

The study integrates many pronunciation variables for model performance verification in order to further confirm the model’s performance. The comparison results of pronunciation accuracy for various feature combinations are displayed in Table 2.

As can be observed from the comparison in Table 2, the accuracy of PC error detection can be significantly improved by feature combination. Among them, the accuracy rate of pronunciation basic features in the PC error detection training set is the lowest, and the accuracy rate of word clustering+word pronunciation+unlabeled corpus statistics is the highest, which is 94.36% and 96.89%, respectively. In the PC error checking test set, the accuracy rates of different feature combinations are somewhat decreased compared with the training set. The lowest error detection accuracy is word clustering+word pronunciation+unlabeled corpus statistics word clustering + word pronunciation+unlabeled corpus statistics, and the highest is word pronunciation, with accuracies of 93.48% and 95.18%, respectively. This suggests that the lexical labeling ability in the PC error detection process can be greatly improved by the PCECM constructed in the study. The improvement of lexical standardization ability can not only enhance the reliability of PED in the online ELL process, but also provide a reliable basis for pronunciation correction. The study uses the error detection of pronunciation speed, intonation, rhythm, and emotion as the indexes and scores the pronunciation of ten distinct OL students with the final scores in order to validate the effectiveness of the DBN-SVM model in the online ELL PC error detection process.

According to Table 3’s analysis, the speed of speech mistake checking score has a maximum rating of 8.1 and a lowest rating of 6.2. Pitch error checking score has a maximum grade of 8.6 and a minimum rating of 7.6. The highest rating in the pronunciation emotion score is 7.1, and the lowest rating is 6.1. Through the validation analysis of the samples, it is found that the voice samples have good performances in the areas of speed of speech, pitch, rhythm and emotion, but further improvement may be needed in emotion expression and rhythm control. This indicates that the model can effectively evaluate the pronunciation of online ELLs and provide corresponding optimization directions, which can provide more professional technical support for online ELLs.
