1. Introduction
Advancing the energy efficiency of a digital circuit is vital for many modern applications.
To improve energy efficiency, a circuit that can reduce both delay and power consumption
is designed. In general, there is a tradeoff between delay and power consumption,
but approximate computing methodology can be applied to improve both delay and power
consumption. Therefore, approximate circuit design has been studied for a long time
to improve performance, but there is no clear answer about which approximate circuit
design is the best for the multiplication. It depends on the specific requirement,
and the relationship between accuracy and performance is not proportional.
Previous designs have shown good performance with low accuracy ^{[1}^{4]}. On the other hand, other designs offer higher accuracy but lower performance ^{[5}^{7]}. The Momeni design ^{[1]} provides significant improvement in performance but has a fundamental accuracy limitation
because it gives nonzero results for zero inputs, which results in substantial relative
errors for small operands used in the multiplication ^{[8]}. Therefore, the accuracy needs to be improved.
In this study, a new approximate 42 compressor design is proposed to reduce the error
rate of an approximate multiplier. It gives zero results for zero inputs. An approximate
multiplier composed of the proposed compressor shows improved error metrics with less
power consumption compared with a previous design ^{[1]}. A highperformance 32nm predictive technology model (PTM) simulation proves that
the proposed 42 compressor design improves the performance compared with the other
design ^{[1]}. The proposed multiplier has lower power consumption and error rate than an approximate
multiplier that uses the Momeni design ^{[1]}. In addition, the proposed design is more accurate in small operand multiplication.
The rest of paper is organized as follows. Section 2 presents a review of exact and
Momeni compressors ^{[1]} and introduces the proposed design of an approximate 42 compressor. The Dadda multiplier
is explained, and multipliers using the proposed compressor are introduced in Section
3. Section 4 presents the implementation results and analysis of the transistorlevel
compressor and multiplier. Section 5 concludes the paper.
2. Previous 42 Compressor
The Momeni design ^{[1]} has nonzero results for zero inputs, resulting in large relative errors for small
operands. The proposed design is presented to compensate for the weakness of the Momeni
design ^{[1]} with improved performance. It was implemented at a transistor level and investigated
through a probability analysis.
2.1 Exact 42 Compressor
Since an exact 42 compressor has five inputs (denoted as x1, x2, x3, x4, C_IN) and
three outputs (SUM, CARRY, C_OUT), it is called a (5,3) counter. In Fig. 1, SUM has the same weight as the inputs, while CARRY and C_OUT have double the weight.
C_OUT is independent of C_ IN. For instance, C_OUT of column i column i becomes C_IN
of column i+1, and this feature is used in tree multipliers. The usual implementation
of an exact 42 compressor is represented by using two full adders ^{[9]}.

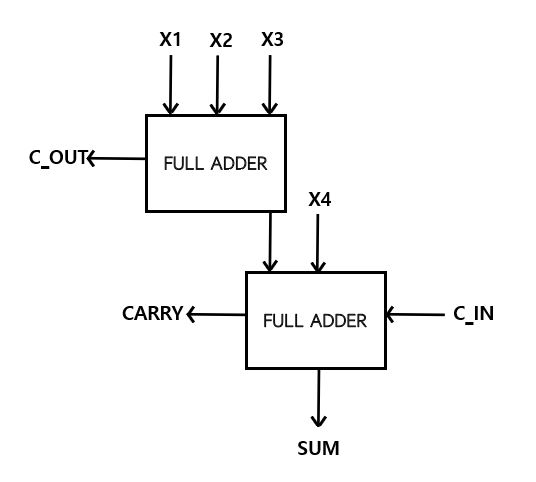

Fig. 1. An exact 42 compressor with two full adders.
2.2 Momeni Approximate 42 Compressor
A Momeni approximate 42 compressor starts with a truth table. CARRY from the truth
table of an exact 42 compressor has the same value with the C_IN, 24 out of 32 states.
Therefore, CARRY is simplified to C_IN to design an approximate 42 compressor. The
SUM and C_OUT output equation is simplified to reduce the complexity of the circuit.
The expressions are described below.
If C_OUT is always equal to C_IN, C_OUT and C_IN can be ignored in the circuit to
design a simpler one, so we replace C_OUT on the left side of Eq. (3) with CARRY on the left side of Eq. (1). Then, the output equation can be more straightforward, and the circuit design is
simpler. Therefore, the critical path delay and power consumption are expected to
improve compared with an exact 42 compressor. The result of the Momeni design ^{[1]} is shown in Table 1. Fig. 2 shows the gatelevel implementation of the Momeni approximate 42 compressor, and
output equations are described below.
In Table 1, the design has four incorrect results out of 16 outputs, so its error rate is 25%,
but it has a significant defect. Because it has an incorrect result at x4x3x2x1=0000,
the probability of this order is 0.32, which is higher than the others. This will
make significant relative errors for small operand operations when the Momeni compressor
is used in the multiplier.
Table 1. Truth table of the Momeni compressor[1].
X4

X3

X2

X1

CARRY

SUM

Difference

0

0

0

0

0

1

+1

0

0

0

1

0

1

0

0

0

1

0

0

1

0

0

0

1

1

0

1

1

0

1

0

0

0

1

0

0

1

0

1

1

0

0

0

1

1

0

1

0

0

0

1

1

1

1

1

0

1

0

0

0

0

1

0

1

0

0

1

1

0

0

1

0

1

0

1

0

0

1

0

1

1

1

1

0

1

1

0

0

0

1

1

1

1

0

1

1

1

0

1

1

1

0

1

1

0

1

1

1

1

1

1

1

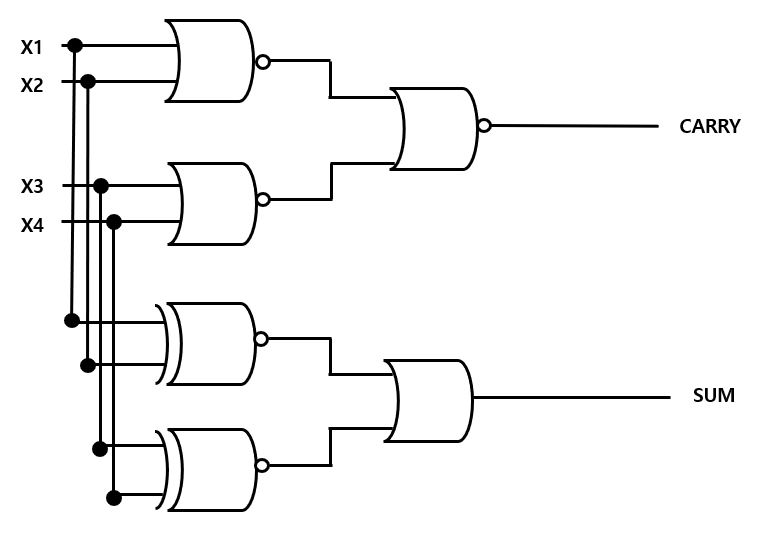

Fig. 2. Gatelevel implementation of Momeni approximate 42 compressor[1].
2.3 Proposed 42 Compressor
The proposed 42 compressor is introduced to improve the error rate, the delay, and
the power consumption. In order to improve the performance of the compressor, the
importance of the input order should be analyzed and understood first. The partial
product from the AND gate has the same probability of being 1. The probability is
1/4. This partial product becomes the input of the 42 compressor in the multiplier,
so the probability of x4x3x2x1 = 0001 and the probability of x4x3x2x1 = 0111 are different.
For example, the probability of x4x3x2x1 = 0001 is 27/256, and that of x4x3x2x1 =
0111 is 3/256. If x4x3x2x1 = 0001 and x4x3x2x1 = 0111 are the error order input of
approximate 42 compressor, the x4x3x2x1 = 0001 order will make more error than x4x3x2x1
= 0111 order due to the probability in the multiplier. Therefore, an input order that
makes an error result, like x4x3x2x1 = 0000 and x4x3x2x1 = 0001, is not recommended.
Instead, the input orders x4x3x2x1 = 0011 and x4x3x2x1 = 0111 are recommended. To
improve the performance of the approximate 42 compressor, we assume C_ IN and C_OUT
of the proposed design have the same weight as in the Momeni design ^{[1]}.
First, making the correct output is needed when the input ordering is x4x3x2x1 = 0000,
x4x3x2x1 = 0001, x4x3x2x1 = 0010, x4x3x2x1 = 0100, and x4x3x2x1 = 1000. The AND of
x1 and x2 can make correct CARRY outputs from the order of inputs with high probability,
but it makes eight incorrect outputs. Eight incorrect outputs are reduced to five
when combined with the AND of x3 and x4 using OR gates. Using De Morgan’s laws, the
CARRY equation uses only NAND, and the following describes the CARRY output.
SUM has to make the correct outputs when the input order has a high probability. The
XOR of x1 and x2 produces the correct result except when the input order is x4x3x2x1
= 0100. However, The OR of x3 and x4 has the correct result when combined with the
XOR of x1 and x2 using an OR gate. Using De Morgan's laws, the SUM equation uses NAND
and NOR to improve the delay and power consumption, and we describe the CARRY output
below. Fig. 3 shows the gatelevel implementation of the proposed approximate 42 compressor.
Table 2 shows the truth table of the proposed approximate 42 compressor. There are no incorrect
outputs when the input ordering is x4x3x2x1 = 0000, x4x3x2x1 = 0001, x4x3x2x1 = 0010,
x4x3x2x1 = 0100, and x4x3x2x1 = 1000, and the proposed compressor has six incorrect
outputs out of 16 outputs. It will make fewer errors for small operand operations
when the proposed compressor is used in a multiplier. Fig. 3 shows that the number of gates used is reduced compared with the Momeni design ^{[1]} because a NOR gate is used in the SUM equation of the proposed design instead of
an XNOR gate. Therefore, so the proposed compressor will show improvement in the power
consumption and delay.

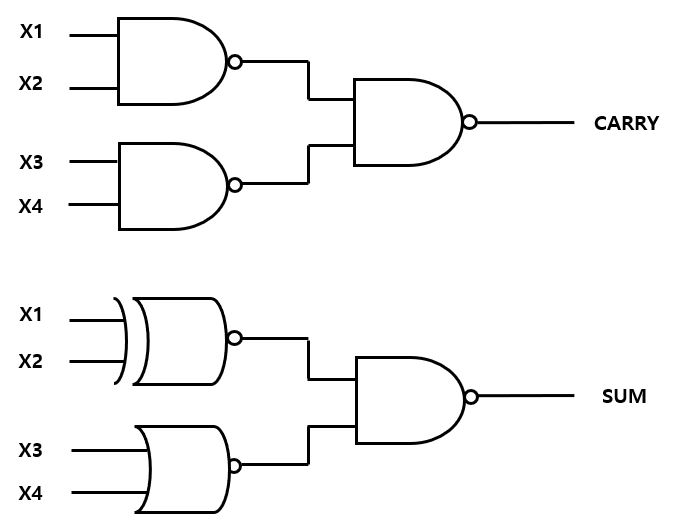

Fig. 3. Gatelevel implementation of proposed approximate 42 compressor.
Table 2. Truth table of the proposed compressor.
X4

X3

X2

X1

CARRY

SUM

Difference

0

0

0

0

0

0

0

0

0

0

1

0

1

0

0

0

1

0

0

1

0

0

0

1

1

1

0

0

0

1

0

0

0

1

0

0

1

0

1

0

1

1

0

1

1

0

0

1

1

0

1

1

1

1

1

0

1

0

0

0

0

1

0

1

0

0

1

0

1

1

1

0

1

0

0

1

1

1

0

1

1

1

1

0

1

1

0

0

1

1

+1

1

1

0

1

1

1

0

1

1

1

0

1

1

0

1

1

1

1

1

1

1

3. Multiplication
The impact of the proposed compressor for multiplication was investigated using an
8${\times}$8 unsigned Dadda multiplier. In general, a multiplier is composed of three
parts ^{[10]}:
· Partial Product Generation (PPG)
· Partial Product Summation Trees (PPST)
· Final Adder (FA)
The second stage, PPST, has a dominant role in delay, power consumption, and circuit
complexity. Since the approximation can reduce circuit complexity, it has suitable
characteristics to be applied to this stage. Therefore, approximate compressors have
been widely used to reduce the delay and power dissipation. In the PPG stage, an AND
gate generates all partial products. Approximate compressors are used to reduce the
partial product in the PPST stage.
In the FA stage, a 15bit full adder is used. The upper bit of the 8${\times}$8 unsigned
Dadda multiplier plays a significant role in the result of multiplication. Therefore,
the proposed approximate compressor is applied up to 7 bits in the PPST stage to reduce
the difference between an exact value and approximate value. Fig. 4 shows the reduction circuit of an 8${\times}$8 Dadda multiplier. The following three
multipliers were designed and compared:

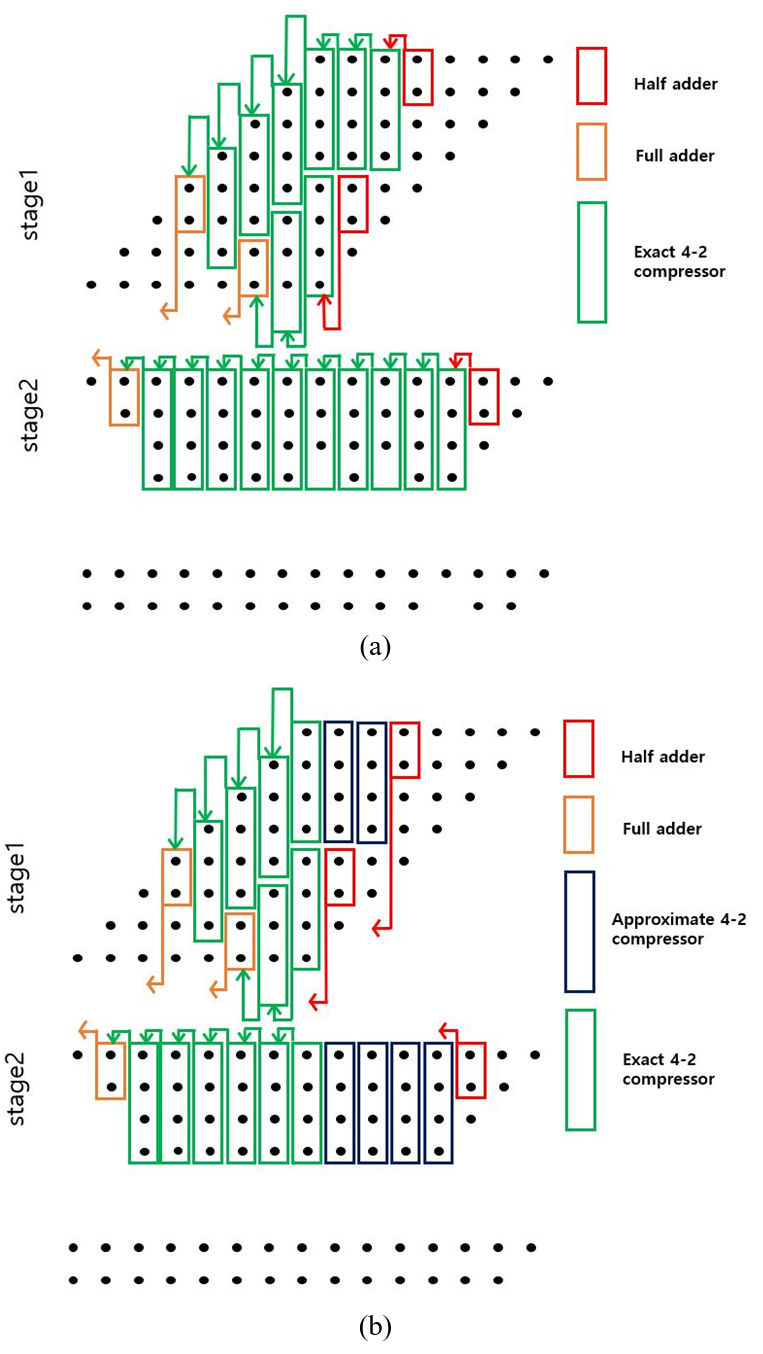

Fig. 4. 8×8 Dadda multiplier: (a) using 42 compressor for all bits; (b) using approximate 42 compressor in low 7bits.
· Multiplier 1 (MUL1): Exact 42 compressors ^{[9]} are used in Fig. 4(a)
· Multiplier 2 (MUL2): The Momeni design ^{[1]} is used for all approximate 42 compressors in Fig. 4(b).
· Proposed multiplier: The proposed approximate 42 design is used for all approximate
42 compressors in Fig. 4(b).
The main objective of MUL2 and the proposed multiplier is to reduce power consumption
compared with MUL1 because they are approximate computations. The exact compressors
determine the delay in the MUL2 and proposed designs in the critical path, so there
is no significant delay improvement in MUL2 and the proposed compared with MUL1.
3.1 Error Rate Minimization
In the first stage, the 42 compressor inputs are partial products and independent
of each other. The probability of being 1 is 1/4, but inputs of the second stage for
42 compressors come from the first stage, so the approximate 42 compressor inputs
are dependent, as shown in Figs. 5 and 6. Before understanding the relationship between
the input ordering of the approximate 42 compressor and the approximate multiplier's
error rate, calculating the probability of the output from the first stage is needed.
The probability that the sum of half adder is 1 is: P(sum) = p(x1x2 = 01) + p(x1x2
= 10) = (3/4)(1/4) + (1/4)(3/4) = 0.375. The probability that carry becomes 1 is:
P(carry) = p(x1x2 = 11) = (1/4)(1/4) = 0.062. In the Momeni design, the probability
that sum is 1 is: P(sum) = 1 – p(x4x3x2x1 = 0101) – p(x4x3x2x1 = 0110) – p(x4x3x2x1
= 1001) – p(x4x3x2x1 = 1010) = 0.859. The other probabilities are also calculated
in this way. P(carry) of the Momeni design being 1 is 0.191. In the proposed design,
the probability that sum is 1 is P(sum) = 0.648, and the probability that carry is
1 is P(carry) = 0.168.
To minimize the error rate of an approximate multiplier, an input order that makes
the minimal probability of an error result in the second stage of the PPST is needed.
In the Momeni compressor, the orders x4x3x2x1 = 0000, x4x3x2x1 = 0011, x4x3x2x1 =
1100, and x4x3x2x1 = 1111 show error results. The probability of the orders of x4x3x2x1
= 0000 and x4x3x2x1 = 1111 is independent of the input order, but the probability
of the orders x4x3x2x1 = 0011 and x4x3x2x1 = 1100 has an input order dependency.
At 5 bits, three partial products have the same probability, so the sum of the half
adder from the first stage does not affect the result. P(sum) of the Momeni design
is relatively high at 6 bits and 7 bits in Fig 5. Therefore, P(sum) has to pair up
with the input with the lowest probability at those bits in x1x2 or x3x4. The input
order that makes a minimal error result is shown in Fig. 5.

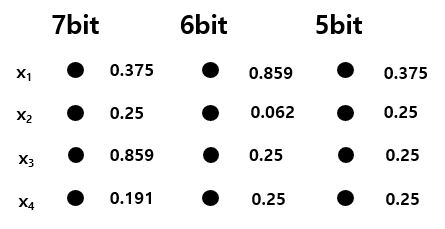

Fig. 5. Partial product probability of the second stage of the multiplier ofFig. 4(b)using Momeni design. This shows the input ordering that minimizes the error probability for MUL2 in the second stage.
In the proposed compressor, the orders x4x3x2x1 = 0101, x4x3x2x1 = 0110, x4x3x2x1
= 1001, x4x3x2x1 = 1010, x4x3x2x1 = 1100, and x4x3x2x1 = 1111 show error results.
x4 and x3 make an error four times when x4 and x3 values are 1. x1 and x2 make an
error three times when x1 and x2 values are 1. To minimize the error probability,
the first and second lowest probabilities should have an input of x4 and x3. The input

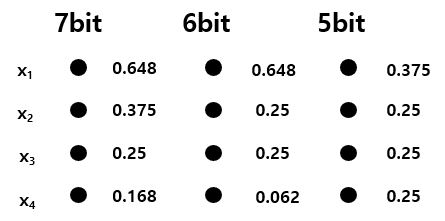

orders that make a minimal error result are shown in Fig. 6. The objective of the proposed design is to reduce the error rate compared with MUL2.
Input order x4x3x2x1 = 0000 of the Momeni approximate compressor used in MUL2 will
make significant relative errors for small operand operations, but the proposed approximate
compressor has a correct result at x4x3x2x1 = 0000 and will show a better error rate
than MUL2.
Fig. 6. Partial products probability of the second stage of the multiplier of Fig. 4(b) using the proposed design. This figure shows the input ordering that minimizes the error probability for the proposed multiplier in the second stage.
4. Simulation Results
This section explains the simulations of the three 42 compressor designs and three
8${\times}$8 unsigned Dadda multipliers using HSPICE. 32nm highperformance PTM model
is utilized in a transistorlevel simulation. The settings used are channel length
= 30 nm, Wn = 60 nm, Wp = 120 nm, and power supply VDD = 1.0 V. The results are summarized
in Tables 3 and 4.
4.1 Approximate Compressor
One exact compressor and two approximate compressors were simulated. The simulation
results of the delay, power consumption, and powerdelay product (PDP) are summarized
in Table 3. As shown in Table 3, the proposed design has the best delay, power consumption, and PDP. The proposed
approximate compressor is 81.71% faster than the exact compressor and 22.51% faster
than Momeni approximate compressor. The power consumption shows 63.2% improvement
compared to the exact compressor and 4.24% reduction compared to the Momeni approximate
compressor. The speedup and decrease in power consumption in the proposed compressor
are attributed to reducing the number of transistors. The proposed approximate compressor
shows a 61.91% reduction from the exact compressor and a 23.81% reduction compared
to the Momeni approximate compressor.
Table 3. Simulation results of compressor (32 nm).
Design

Delay

Power

PDP

# of transistors

(ps)

normalized

(uW)

normalized

(aJ)

normalized

(ea)

normalized

Exact ^{[9]}

74.35

5.47

9.81

2.72

729.37

14.85

84

2.63

Momeni ^{[1]}

17.55

1.29

3.77

1.04

66.16

1.35

42

1.31

Proposed

13.60

1.00

3.61

1.00

49.1

1.00

32

1.00

4.2 Approximate Multiplier
Three multipliers were simulated: exact, MUL2, and the multiplier with proposed compressors,
and the results are summarized in Table 4. As shown in Table 4, the proposed design has the best delay, power consumption, and PDP. In Table 4, there is no significant delay improvement in the proposed multiplier compared with
the exact and MUL2 multipliers because the critical paths among all three multipliers
are the same. However, the proposed multiplier’s power consumption shows an 18.65%
improvement compared to the exact multiplier and a 4.18% reduction compared to the
approximate MUL2. The decrease in power consumption is attributed to reducing the
transistors in the PPST stage. The proposed method shows a 13.44% reduction compared
to MUL1 and a 2.9% reduction compared to MUL2 in terms of the number of transistors.
Table 4. Simulation results of multiplier (32 nm).
Design

Delay

Power

PDP

# of transistors

(ps)

normalized

(uW)

normalized

(aJ)

normalized

(ea)

normalized

MUL1 ^{[9]}

154.00

1.01

253.59

1.30

390.53

1.24

2322

1.16

MUL2 ^{[1]}

153.00

1.00

215.30

1.04

329.41

1.04

2070

1.03

Proposed

153.00

1.00

206.30

1.00

315.64

1.00

2010

1.00

4.3 Error Metrics
MUL2 and the proposed multiplier were simulated to compare the error metrics for an
8${\times}$8 unsigned Dadda approximate multiplier. The Error Rate (ER), Mean Error
Distance (MED), and Normalized Mean Error Distance (NMED) are summarized in Tables 5 and 6. Assuming E and A, the results were produced by an exact and an approximate multiplier.
First, we define the Error Distance ^{[10]}, ED = ${\sum}$EA, and the Max Out for unsigned multiplier, Max Out = (2$^{\mathrm{n}}$1)$^{2}$.
The error metrics considered in this paper are:
· Error Rate (ER): the percentage of the multiplication result for which ED > 0.
· Mean Error Distance (MED): ED/2$^{\mathrm{2n}}$ = ${\sum}EA/2$$^{2n}$.
· Normalized Error Distance (NMED): the average value of ED divided by Max Out.
As shown in Table 7, the proposed multiplier shows better accuracy than MUL2. As mentioned, MUL2 shows
a 93.43% error rate because incorrect order x4x3x2x1 = 0000 of the Momeni approximate
compressor results in significant relative errors for small operand operation. However,
the proposed design shows a 15.54% improvement in ER compared with MUL2 because the
input order x4x3x2x1 = 0000 of the proposed approximate design results in an exact
value of 0. The proposed multiplier also provides better error performance in MED
and NMED than MUL2.
To prove the robustness of the proposed design for multiplication between small operands
compared with the Momeni method (i.e., MUL2), multiplication results from 0${\times}$0
to 63${\times}$63 were investigated and are summarized in Table 8. It is worth noting that the improvement compared with MUL2 becomes larger for smaller
operands. From this result, the multiplier using the Momeni compressor is more susceptible
to multiplication between small operands, but the multiplier with the proposed compressor
is not.
Table 5. Error Performance of 8${\times}$8 unsigned approximate multipliers from 0  255 (2$^{8}$1).

ER (%)

MED

NMED

MUL2

93.43

167.21

0.026

Proposed

77.89

157.21

0.024

Improvement w.r.t. MUL2

15.54%

5.98%

7.69%

Table 6. Error performance of 8${\times}$8 unsigned approximate multipliers from 0  63 (2$^{6}$1).

ER (%)

MED

NMED

MUL2

92.19

33.24

0.51×10$^{3}$

Proposed

69.87

28.46

0.43×10$^{3}$

Improvement w.r.t. MUL2

22.32%

14.38%

15.69%

5. Conclusion
This paper introduced a new approximate 42 compressor design and a multiplier using
the proposed compressor. The proposed designs were compared with previous compressors
and multipliers. Based on the analysis, the following conclusions can be drawn.
· Reducing the number of the transistors can improve both power consumption and delay.
· The approximate compressor error rate from the truth table is not the only one factor
that determines the error rate of the multiplier. Instead, the probability of the
input order that makes the error result needs to be considered.
· Approximate compressors with error order generating a nonzero result for zero inputs
^{[1]} are susceptible to small operands. However, the proposed multiplier design is stronger
for small operands because it was designed based on the probability to minimize errors
for small operand multiplication.
The proposed compressor and multiplier show better performance than the Momeni design
^{[1]} and are strong for small operands.
REFERENCES
Momeni A., Han J., Montuschi P., Lombardi F., April 2015, Design and Analysis of Approximate
Compressors for Multiplication, in IEEE Transactions on Computers, Vol. 64, No. 4,
pp. 984994
Sabetzadeh F., Moaiyeri M. H., Ahmadinejad M., Nov. 2019, A MajorityBased Imprecise
Multiplier for UltraEfficient Approximate Image Multiplication, in IEEE Transactions
on Circuits and Systems I: Regular Papers, Vol. 66, No. 11, pp. 42004208
Ahmadinejad M., Moaiyeri M. H., Sabetzadeh F., Oct. 2019., Energy and area efficient
imprecise compressors for approximate multiplication at nanoscale, AEU  International
Journal of Electronics and Communications, Vol. 110
Akbari O., Kamal M., AfzaliKusha A., Pedram M., April 2017, DualQuality 4:2 Compressors
for Utilizing in Dynamic Accuracy Configurable Multipliers, in IEEE Transactions on
Very Large Scale Integration (VLSI) Systems, Vol. 25, No. 4, pp. 13521361
Yang Z., Han J., Lombardi F., 2015, Approximate compressors for errorresilient multiplier
design, 2015 IEEE International Symposium on Defect and Fault Tolerance in VLSI and
Nanotechnology Systems (DFTS), pp. 183186
Lin C., Lin I., 2013, High accuracy approximate multiplier with error correction,
2013 IEEE 31st International Conference on Computer Design (ICCD), pp. 3338
Ha M., Lee S., March 2018, Multipliers With Approximate 42 Compressors and Error
Recovery Modules, in IEEE Embedded Systems Letters, Vol. 10, No. 1, pp. 69
Strollo A. G. M., Napoli E., De Caro D., Petra N., Meo G. D., Sept. 2020, Comparison
and Extension of Approximate 42 Compressors for LowPower Approximate Multipliers,
in IEEE Transactions on Circuits and Systems I: Regular Papers, Vol. 67, No. 9, pp.
30213034
Edavoor P. J., Raveendran S., Rahulkar A. D., 2020, Approximate Multiplier Design
Using Novel DualStage 4:2 Compressors, in IEEE Access, Vol. 8, pp. 4833748351
Roy A. S., Dhar A. S., 2018, A Novel Approach for Fast and Accurate Mean Error Distance
Computation in Approximate Adders, 2018 IEEE International Symposium on Circuits and
Systems (ISCAS), pp. 15
Author
Jahyung Gu is in the BAc program at the IC Design & Embeddedsystem Application
Laboratory (IDEA LAB) for electronic and electrical engineering at Hongik University,
Seoul, Korea. He received a BSc in electronic and electrical engineering from Hongik
University, Seoul, Korea, in 2022. His research interests include embedded systems,
design and technology cooptimization methodologies, and lowpower and 3D IC designs.
Youngmin Kim received a BSc in electrical engineering from Yonsei University, Seoul,
Korea, in 1999 and an MSc and a PhD in electrical engineering from the University
of Michigan, Ann Arbor, in 2003 and 2007, respectively. He held a senior engineering
position at Qualcomm in San Diego, CA. He is currently a Full Professor at Hongik
University, Seoul, South Korea. Prior to joining Hongik University, he was with the
School of Computer and Information Engineering at Kwangwoon University, Seoul, South
Korea, and the School of Electrical and Computer Engineering at the Ulsan National
Institute of Science and Technology (UNIST), Ulsan, South Korea. His research interests
include embedded systems, variabilityaware design methodologies, design for manufacturability,
design and technology cooptimization methodologies, and lowpower and 3D IC designs.
