LeeYoung-Sik1
-
(Department of Software, Kyungdong University, Yangju city, 11458, Korea young@kduniv.ac.kr
)
Copyright © The Institute of Electronics and Information Engineers(IEIE)
Keywords
Smart mobility intelligent traffic service, Intelligent transportation system, Deep reinforcement learning, Optimal network-wide policy
1. Introduction
In Korea, the smart mobility traffic information system uses big data to combine and
analyze personal movement information, such as taxis or private cars. It also refers
to a new transportation information provision service that leads potential private
users to complex public transportation by extracting the demand patterns of transportation
users and providing integrated mobility services for reservation, information, use,
and payment according to individual user needs. This technology allows users to set
transportation routes from their desired departure point to their destination according
to the demands of public transportation users [1-3]. Operating transportation modes at the desired time slots and implementing interconnections
between different modes enhances the convenience of transportation for individuals
with mobility challenges. It transitions from a conventional independent transportation
service system focusing on individual modes to a user-centric integrated and customized
transportation service system that combines and operates various modes such as public
transportation, personal vehicles, and shared cars [4]. This system aims to provide seamless transportation information connectivity, improve
efficiency in short, medium, and long-distance travel, and implement an environmentally
friendly and sharing economy-based transportation service in response to climate change.
Hence, the need for an intelligent transportation system in Korea can be summarized
as follows. First, although the public transportation mode share in Korea has shown
excellent performance compared to other advanced countries, it has been stagnant at
approximately 40% since 2014 [5], reaching its limit in terms of increasing the mode share. Therefore, an efficient
operational method and the supply of new concept transportation modes are needed to
respond efficiently to the constantly changing transportation demand that varies by
local government and small-scale areas. Second, while Korea has improved the public
transportation service centered around public transportation providers, various countries
have recently introduced new public transportation services, and the concepts of car-
and ride-sharing have been spreading in the private vehicle sector [6]. Third, in the field of public transportation, overseas cases of Mobility as a Service
(MaaS) are emerging. MaaS provides demand-based transportation packages, offering
integrated transportation information, including various transportation models on
a single platform, as well as integrated payment services [7]. It represents a departure from the existing transportation systems provided by supply-oriented
providers and aims to provide personalized optimal transportation information and
route systems, reservation and payment systems, and other integrated operational services
from the user's perspective. Rapid urbanization has led to increased congestion in
urban areas. Hence, an integrated system that provides personalized transportation
services based on comprehensive analysis is needed to alleviate this. This includes
tailored guidance for public transportation based on individual user demands, integrated
mobility services that provide information, reservations, usage, and payment, and
coordinated operations of various transportation modes to meet the demand [8]. In addition, in terms of transportation planning and operation in smart cities,
it is necessary to activate smart mobility by utilizing user activity-based mobility
data and develop and standardize service technologies for integrated public transportation
and shared mobility services [9].
The remainder of this paper is organized as follows. The next section describes the
related works. Section 3 proposes Deep Reinforcement Learning. The proposed research
system section (Section 4) includes Markov decision process (MDP) formulation and
a deep reinforcement learning approach. Finally, Section 5 concludes the paper.
2. Related Work
2.1 Scope and Classification
Smart mobility is one of the critical components of a smart city, along with transportation,
energy, resources, and infrastructure management. It plays a crucial role in the city's
economic and social systems, with significant government funding and a direct impact
on citizens' daily lives. Smart mobility generates a vast amount of data that influences
the resources, logistics, energy, and economic flows of a city, The technologies that
constitute smart mobility are expected to play a significant role in enhancing the
competitiveness of cities and countries. The development and production of new modes
of transportation are expected to create jobs, reduce traffic accidents through technological
advancements, and improve the efficiency of transportation systems, with concomitant
economic benefits. For example, advances in smart cars are projected to create approximately
320,000 jobs and reduce approximately 2,500 serious traffic accidents annually, resulting
in an estimated economic impact of 75.4 billion KRW by 2030. The goal is to enhance
user convenience, such as reducing the overall travel time, by integrating smart mobility
systems. Rapid and proactive responses to unforeseen situations and preventive measures
become possible by establishing a bidirectional data collection and sharing system
between vehicles and infrastructure. As vehicles become a means of communication,
they can help solve urban and transportation issues through data integration facilitated
by IoT, a key component of smart cities. During the initial stages of introducing
autonomous driving, potential challenges arising from the coexistence of autonomous
and conventional vehicles can be overcome by vehicle-to-everything (V2X) communication,
improving the safety and efficiency of cities and transportation. Smart mobility traffic
information systems can be classified broadly into the implementation technologies
of an AI-based Smart Mobility Center. It can be categorized as follows. The implementation
technologies of the Mobility Center include AI-based urban traffic control technology,
mobile-based MaaS (Mobility as a Service) technology, prediction technology based
on big data and simulation, and navigation service technology based on connected cars.
These technologies work together to control transportation flow throughout the city,
providing personalized services and delivering a higher level of service to citizens.
2.2 Case Study
For example, various research studies on traffic management at intersections are being
conducted in Korea. Among them, research on traffic signal systems is actively underway.
The current signal systems are fixed in nature. Adaptive methods have also been studied
to increase the throughput of intersections. These methods involve adjusting the timing
of traffic signals or changing the sequence of signals based on traffic volume. The
optimization problem of traffic signal control, which involves a large amount of data
in a dynamically changing traffic environment, poses a high level of complexity when
solved using traditional mathematical models or optimization methods. Fuzzy techniques
and Q-learning techniques are widely used to solve the traffic signal problem. A traffic
signal control technique using fuzzy techniques has been proposed for a single intersection.
In this approach, the order of green signals remains fixed, but the duration of the
green signals is adjusted dynamically based on traffic volume. The number of vehicles
entering the intersection is measured to determine the current traffic flow during
the green signal and the traffic flow during the red signal in the next phase. Based
on the identified traffic flow, a decision is made to extend the duration of the green
signal. The reduction of the green signal duration is not considered in this approach.
On the other hand, Askerzada et al. determined the traffic flow pattern based on the
number of vehicles and adjusted the duration of the green signal accordingly [10]. Traffic signal control using fuzzy techniques allows for more flexible control in
dynamic traffic environments [11]. Nevertheless, fuzzy control models incur significant overhead as the fuzzy control
rules change and are generated with the changing environment. Therefore, research
on traffic signal techniques using reinforcement learning, such as Q-learning, is
also being conducted. The Q-learning (QL) technique learns by reinforcement learning
to determine the optimal policy. QL does not require a predefined environment model,
making it suitable for dynamic traffic environments. Research on signal control at
intersections using QL can be divided into single-intersection studies and studies
considering multiple intersections. Single intersection studies focus on obtaining
learning experiences in a single environment and determining the useful ranges for
various parameters. The order of green signals is fixed, and the duration of green
signals is adjusted through learning.
3. Deep Reinforcement Learning(DRL)
Traffic signal controllers with fixed timings are typically defined by different cycle
profiles. They are observed over time as they alternate, attempting to handle the
common traffic flows. Some of these methods are defined using mathematical models
applying calculus, linear programming, and other optimization algorithms. Other methods
involve using traffic simulators to build traffic models. On the other hand, the results
were limited due to the slow convergence of the GA algorithm. Traffic controllers
have started using models that optimize various traffic metrics using sensor data.
Although such systems generally outperform fixed-timing controllers, they have been
tested in simplistic scenarios. They cannot adapt well to real-world urban traffic
with complex dynamics, such as multi-intersection or heterogeneous traffic flow. Recently,
reinforcement learning has become popular in building traffic signal controllers because
agents can learn traffic control policies by interacting with the environment without
predefined models. The reinforcement learning framework naturally fits the traffic
signal controller problem, with the traffic controller as the agent, traffic data
as the state representation, and phase control as the agent's actions. Various learning
models have been explored to build traffic signal controllers. Despite this, comparing
the proposed solutions and results is challenging because of significant variations
in problem definitions across the literature. This study adopted a deep reinforcement
learning (DRL) approach to address the traffic control problem
3.1 Classic Reinforcement Learning(CRL)
The main distinction in different reinforcement learning approaches lies in whether
there is a need to learn the transition probability function P. In model-based methods,
the agent learns a transition model that estimates the probability of transitioning
between given states given possible actions and calculates the expected rewards for
each transition. The value function is then estimated using dynamic programming-based
methods, and decisions are made based on this estimation. Model-based methods require
learning P and the reward function R, while model-free methods skip this step and
learn by interacting with the environment and observing rewards directly. They perform
value functions or policy updates by interacting with the environment and observing
rewards directly. Learning the transition probability function in the context of traffic
control problems implies modeling an environment that can predict metrics, such as
vehicle speed, position, and acceleration. It used a model-based approach in a multi-agent
model operating in a network of six controlled intersections, where each controller
receives the discretized positions and destinations of each vehicle on approach lanes,
resulting in 278 possible traffic situations. The defined RL controller performs better
than simpler controllers, such as fixed-time and Longest Queue First (LQF), assuming
that each vehicle can communicate with each infeasible signal controller. Furthermore,
the network is simplified because all distances have the same number of lanes, resulting
in unrealistic homogeneous traffic patterns. This research also mentions the possibility
of having smarter driving policies to avoid congested intersections when previous
communication is assumed to be possible. Some research has attempted a model-based
approach, but most of the research community adopts a model-free approach because
of the difficulty of fully modeling the unpredictable behavior of human drivers when
considering their natural and unpredictable actions. Most tasks that use a model-free
approach rely on algorithms, such as Q-learning and SARSA, to learn optimal traffic
control policies. A model-free system was built using SARSA, and the performance of
three state representations, volume, presence, and absence, was compared. Vehicles
can be controlled by dividing each lane in each section of the network into equal-distance
intervals or unequal-distance intervals. The RL model outperformed fixed-time and
maximum volume controllers regardless of the state representation used, and the unequal-distance
intervals state representation outperformed the other two state representations. Previous
reinforcement learning-based controllers were applied to single intersections because
the state space increases exponentially with the number of controlled intersections.
Considering that a single intersection model is overly simplified and cannot estimate
traffic at the city level, other studies aimed to apply reinforcement learning to
multiple traffic intersections by constructing multi-agent models.
3.2 Multi-agent Reinforcement Learning
Each agent controls one intersection in a traffic network with multiple intersections.
This approach minimizes the explosion of the state space by allowing each agent to
operate in a small partition of the environment. In a non-cooperative approach, each
agent seeks to maximize the specific rewards, such as queue lengths or cumulative
delays, using the state representing their respective intersections. This is commonly
referred to as Independent Learners (IL).
Independent Learners. The initial systems consisted of independent learners (IL) and
a small number of intersections, where smaller intersections performed better. Over
time, however, researchers adapted IL to more extensive road networks. A multi-agent
system was developed based on Q-learning and modeled as a distributed stochastic game.
The Deep Q-Network (DQN) was presented in the Atari Learning Environment (ALE) domain.
This approach uses deep neural networks to estimate the Q-function and utilizes a
replay buffer to store the experiences defined by tuples, which serve as inputs to
the neural network. DQN quickly adapts to outperform a baseline by controlling a single
intersection in the ATSC. Chu et al. verified that DQN-based IL performed under a
greedy algorithm that selected the phase with the highest vehicle count. DQN-IL also
failed to perform even simpler Q-learning counterparts for a network of four intersection
roads. These results suggest a trade-off between size and performance.
Collaborative Learners. In an environment where the actions of one agent can affect
the other agents at nearby intersections. Isolating self-interested agents that only
seek to maximize their gains at their intersections can improve local performance
for some agents. Nevertheless, it can lead to a degradation of global performance,
particularly when dealing with large-scale networks. Therefore, efforts are made to
maximize global performance through collaboration or information sharing among agents.
A naive approach simply adds information about every other intersection to the state
space. On the other hand, this leads to exponential growth as the number of intersections
increases and becomes infeasible for larger networks. Therefore, a key challenge in
multi-agent settings is implementing coordination and information sharing among agents
while maintaining a manageable size of the state space. The designed model outperformed
the other models on small-scale (four intersections) and large-scale (eight–15 intersections)
networks. Van der Pol applied a deep learning approach in single and multi-agent settings.
The learning agents used the DQN (Deep Q-Network) algorithm with binary matrices as
inputs representing whether a vehicle is present at a specific location. For single
intersection networks, the DQN agents showed better stability and performance than
the baseline agent using linear approximation. Collaborative multi-agent systems can
overcome the curse of dimensionality in dealing with complex traffic networks, outperforming
fixed-timing, single-agent RL, and non-collaborative multi-agent RL models.
4. Proposed Research System
The proposal of this study emphasizes the importance of adhering to a rigorous methodology
to enable experiment reproducibility and result comparison based on the traffic conditions
in Korea. In addition, this study applied a traffic simulation environment that uses
tools from graph theory and Markov chains using Eclipse. The basic concepts in MDP
and RL methods were also applied. The methodology is a slightly adapted version of
Varela, a reinforcement learning-based adaptive traffic signal control methodology
for multi-agent coordination. While the existing methodologies for independent learners
consist of four steps, this study extended it to two additional steps as distinct
components: MDP formulation and RL method. The five steps included simulation setup,
MDP formulation, RL method, training, and evaluation, as shown in Fig. 1.
Because the MDP defines the optimization problem, meaningful comparisons between different
reinforcement learning methods require the same underlying MDP. Moreover, the MDP
formulation can have a decisive impact on the performance of the reinforcement learning
model. This has been demonstrated by keeping the learning algorithm fixed and altering
the underlying MDP formulation. In this study, the underlying MDP was fixed, and different
baselines and RL-based methods were tested, evaluating separate function approximations,
adjustment methods, and observation scopes.

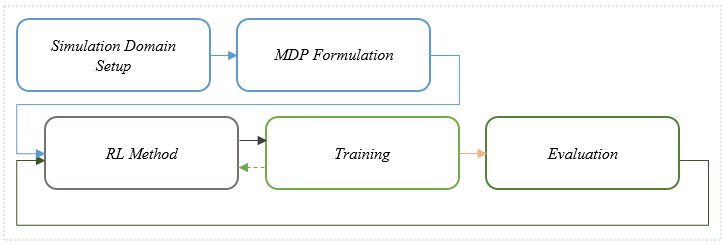

Fig. 1. Proposed Method as a Flow Diagram composed of five processes. MDP is a Markov Decision Process, and RL is Reinforcement Learning.
4.1 Motorway Networks Topology-based MDP Formulation
The network could be extracted from real-world locations. Parts of urban areas can
be exported by leveraging the available open-source services, and by preparing this
information during the simulation setup phase, it can be provided to the simulator,
opening up the possibility of simulating a rich set of networks related to real traffic
signal control. Real-world data can generate realistic traffic demands that match
actual observations, reducing the gap between the simulator and the deployed traffic
controllers in the real world. On the other hand, these data need to be validated
before being used, and the setup process can be complex because it is often specific
to the network. Acquiring such data can be challenging, and it may be noisy or even
unavailable. Therefore, data-driven traffic demands fall outside the scope of this
research.
The MDP consists of state features, reward signals, action schemes, and observation
scope. A group of collaborating multi-agent-based DRLs is defined by an MDP that accounts
for the lack of observability and interactions. The MDP is defined by the tuple and
is expressed as Eq. (1).
State space S (s∈S) represents the state at time t, composed of features of
incoming approaches at intersections. In this research, The equation was described
by feature maps ϕ(s) composed of data on internal states and incoming approaches
expressed as Eq. (2).
The internal state is defined by the index of the current green phase, xg∈{0,1,…,r−1}, where P is the number of phases and the time since this phase has been
active, xt∈{10,20,…,90}. The feature xr on the incoming
approaches of any given agent n at phase p is defined by the cumulative delay as Eq.
(3).
where vr is the speed of the vehicle in the incoming approach of step p for the
agent, and vr is the speed limit for step r. No delay occurs if all vehicles
travel at the speed limit for each step or if no vehicles are in a step. If a vehicle
travels slower than the speed limit, the delay becomes positive until it reaches the
maximum stop (v = 0), and the delay becomes a maximum of 1.
4.2 Deep Reinforcement Approaches
The DRL method consists of learning algorithms with different function approximation
methods, adjustment methods, and observation scopes. In this task, agent coordination
is achieved using the QL algorithm for the domain and some of its variations. (i)
The QL algorithm receives a discrete state space, so it is necessary to discretize
the state defined in the previous MDP formula. (ii) In this algorithm, each intersection
must share its state and behavior during training and share its state during execution.
Deep QL (Deep Q-Learning) is a type of reinforcement learning that explores a non-deterministic
environment and selects the best action based on experience. Deep QL learns based
on the concepts of state, action, and reward. When time is denoted as t, the situation
of the environment is defined as a state (st). When an action (at) is taken
in a state, a reward (rt+1) is given, and the system transitions to the next
state (st+1) as Eq. (4).
The set of states for n states and m actions is expressed as Eq. (5), and the set of actions is represented by Eq. (6). Each state, action, and reward has a Q-function, denoted by Eq. (7).
The learning values in Deep Q-Learning are stored in a Q-table. In this case, the
value is obtained from the maximum value among those for the current state, action,
and reward (rt+1) and the new state (maxa Q(st+1, at+1)). This
is achieved using the learning rate (lr, α) and the discount factor (df,
γ) expressed as Eq. (8).
In general, Deep Q-Learning involves exploration, where actions are chosen based on
the state and reward. When selecting actions, occasionally attempting new actions
can lead to better results rather than solely relying on the actions that yield the
highest immediate rewards. Therefore, the concept of exploration with randomness is
applied, known as epsilon-greedy selection. This research proposes a traffic signal
control system using Deep Q-Learning in a multi-intersection setting. Each intersection
is equipped with a local agent (Lagent), and each agent performs Deep Q-Learning
independently based on the time information of the waiting vehicles from neighboring
intersections aiming to enter the respective intersection. Accordingly, during training,
specific procedures of simulations and algorithms rely on random number generators.
Simply changing the seed of these generators can induce significant differences in
the performance of the implemented traffic controllers. Owing to this variance, multiple
independent training runs are seeded for each controller, and the results are averaged
across each controller to obtain the performance outcomes that reflect how the traffic
controller performs. These random seeds also allow for complete replication of all
experiments. The DRL process involves exploration and exploitation phases, where congestion
can occur in the network during simulations, preventing vehicles from moving through
the road network. This can occur more frequently during the exploration phase, where
actions are randomly selected by the agent. When congestion occurs, the agent halts
learning, and the simulation halts. To avoid congestion, the reinforcement learning
task is episodic, where the simulator is reset after a set time to prevent unfavorable
outcomes from persisting indefinitely. Two main performance metrics and two auxiliary
performance metrics are used. The reward increases during training to allow the agent
to make better decisions and indicate that the generated policy, such as in deep reinforcement
learning models (e.g., DQN), is approaching stable state preservation. The other two
auxiliary metrics are the average number of vehicles in the road network and the average
speed. As training progresses, the agent can make better decisions, reflecting a decrease
in the average number of vehicles in the network because it becomes more dispersed
and an increase in average speed (Fig. 2).
The state of DQL (Deep Q-Learning) is defined as the number of available directions
for vehicles to move at a given intersection. For example, Fig. 3 shows a four-way intersection with four adjacent directions. Each direction at a
four-way intersection allows for left turns and straight movements. Therefore, the
state of a four-way intersection can be classified into eight categories ((S= {s0,s1,s2,…………,sn}). The actions in the proposed DQL consisted of the possible
actions to take at the intersection, and there were three action sets (A = {a0,a1,a2,…………,am}).
At time t, the reward ((r)it) of the local agent at an intersection
was composed of the throughput (tp) and the average waiting time (wt) of the
adjacent intersections, as shown in Eq. (9). The throughput represents the number of vehicles processed at intersection i within
a unit time, while the waiting time is the average waiting time of vehicles at intersection
i and its adjacent intersections. The weights (α) adjust the importance of
the throughput and waiting time, with w being greater than one and ξ defined
between zero and one.

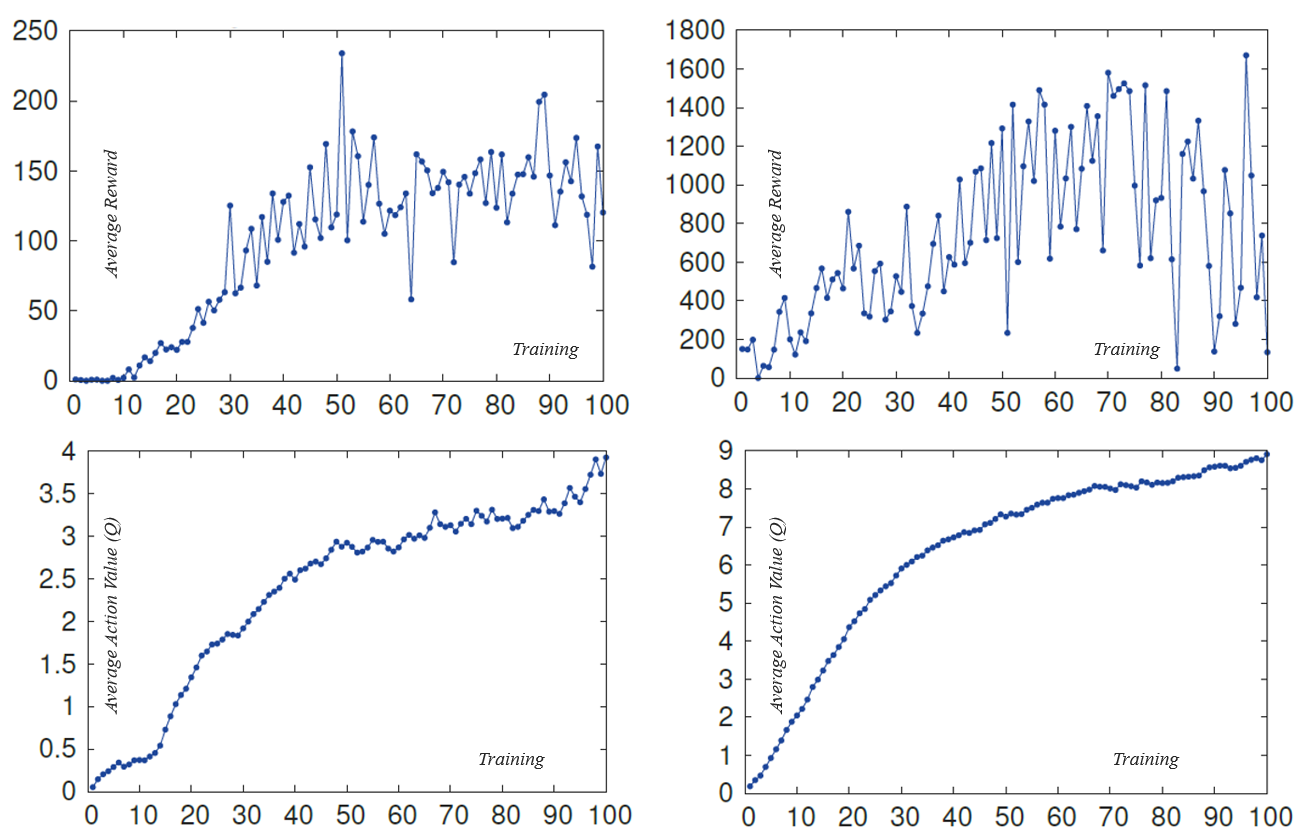

Fig. 2. Training metrics of City Traffic Flow by Deep Q-Learning.

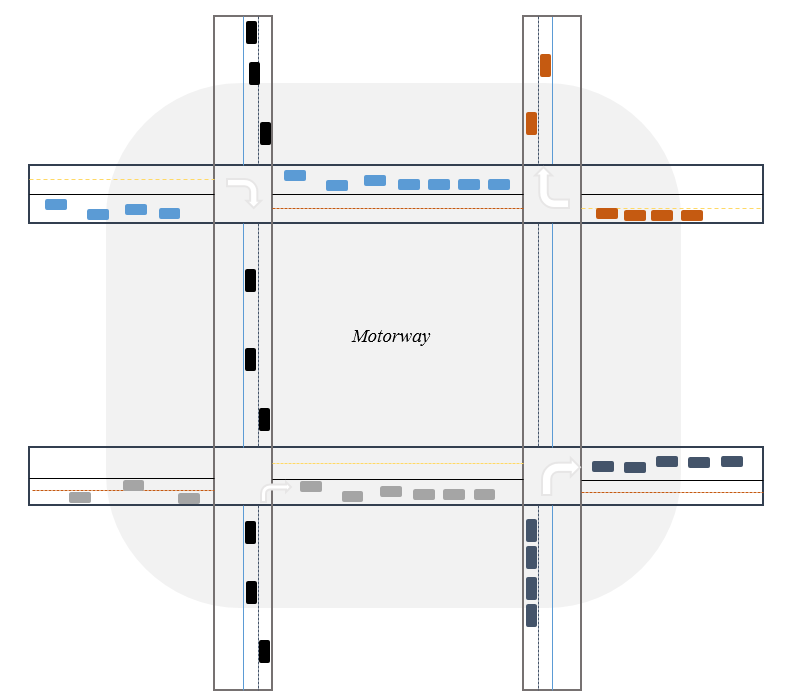

Fig. 3. Adjacent four Intersections of the Motorway of a City.
5. Conclusion
This paper proposed a traffic signal control method using Deep Q-learning for multi-intersections
of a motorway in a City in Korea. This research aimed to maximize the throughput and
minimize the waiting time at intersections through collaboration with neighboring
intersections. The performance of the proposed system was compared with fixed-time
signal control and adaptive signal control methods. The results showed that when using
DRL-TCS (Deep Reinforcement Learning Traffic Control System) on four neighboring intersections,
the proposed method outperformed regarding the average queue length, throughput, and
waiting time. On the other hand, for larger intersections, using only a distributed
approach may not be sufficient for traffic control. Therefore, further research on
a deep learning-based traffic signal method that combines distributed and centralized
approaches will be needed to address this limitation.
ACKNOWLEDGMENTS
This research was supported by Kyungdong University Research Fund, 2023.
REFERENCES
X. Liu, B. St. Amour and A. Jaekel. ``A Reinforcement Learning-Based Congestion Control
Approach for V2V Communication in VANET'', Appl. Sci. 2023, 13, 3640.

H. Hasrouny, A. E. Samhatb, C. Bassilc and A. Laouitia, "VANet Security Challenges
and solutions: A Survey", Vehicular Communications, vol. 7, pp. 7-20, January 2017.

S. Al-Sultan, M. M. Al-Doori, A. H. Al-Bayatti and H. Zedan, "A comprehensive survey
on vehicular Ad Hoc network", Journal of Network and Computer Applications, vol. 37,
pp. 380-392, January. 2014.

H. Moustafa and Y. Zhang, "Vehicular networks: techniques standards and applications",
pp. 23-35, September. 2019.

C. M. A. Rasheed, S. Gilani, S. Ajmal and A. Qayyum, "Vehicular Ad Hoc Network (VANET):
A Survey Challenges and Applications", Advances in Intelligent Systems and Computing,
pp. 39-51, March. 2017.

S.J. Elias, M.N.B.M. Warip, R.B. Ahmad and A.H.A. Halim, "A Comparative Study of IEEE
802.11 Standards for Non-Safety Applications on Vehicular Ad Hoc Networks: A Congestion
Control Perspective", Proceedings of the World Confrence on Engineering and Computer
Science WCECS, vol. II, October, 2014.

Nidhi, D.K. Lobiyal et al., "Performance Evaluation of VANET using Realistic Vehicular
Mobility", CCSIT Part I LNICST 84, vol. 84, pp. 477-489, January. 2012.

Nidhi and D.K. Lobiyal, "Performance Evaluation of Realistic VANET using Traffic Light
Scenario", International Journal of Wireless and Mobile Networks (IJWMN), vol. 4,
no. 1, pp. 237-249, February. 2012.

H. Ahmed, S. Pierre and A Quintero, "A Cooperative Road Topology-Based Handoff Management
Scheme", IEEE Trans. Veh. Technol., vol. 68, pp. 3154-3162, 2019.

P. Roy, S. Midya and K. Majumder, "Handoff Schemes in Vehicular Ad-Hoc Network: A
Comparative Study", Intelligent Systems Technologies and Applications 2016. ISTA,
2016.

S. Vodopivec, J. Bešter and A. Kos, "A survey on clustering algorithms for vehicular
ad-hoc networks", Proceedings of the 35th International Conference on Telecommunications
and Signal Processing (TSP), pp. 52-56, 3-4 July 2012.

Young-Sik Lee received his bachelor's degree from Korea Aerospace Uni-versity,
Department of Aeronautical and Communication Engineering. He received his master's
degree in engineering from Kyunghee Univer-sity in 1996 and his Ph.D. from Kwandong
University in 2005. Since 1995, he has been a professor of computer engineering and
software at Kyungdong University. His research interests include computer architecture,
information security, digital logic, big data, pattern recognition, and vehicular
networks.
