1. Introduction
The wide application of Web technology enables users to realize their respective business
requirements at low cost without limitation of time and space [1]. The sharing of interior design is realized based on network. At present, the interior
design system based on Internet technology has been applied. Under the guidance of
the concept of smart city, future urban development puts forward higher requirements
for urban management and planning. In-depth indoor 3D modeling technology is a necessary
guarantee condition and an important technical component of modern urban management.
There are two key problems in the process of indoor modeling: rapid 3D modeling and
spatial model accuracy [2]. However, the functions and structures of modern cities tend to be diversified and
complicated, and the data sources and spatial accuracy of existing underlying databases
cannot meet the requirements of fast, real and accurate.
Currently, Zhang et al. In terms of protection paths, three aspects of technology
empowerment, governance empowerment and legal empowerment have been used to jointly
promote the proper protection of data on Internet enterprise platforms [3]; Zhu proposed a novel interior design framework based on virtual reality technology
and the workflow of the proposed interior design framework consists of three steps:
hard decoration design, soft decoration design and visual design [4]; Hrovatin et al. studied the development of a sensor network aimed at detecting human
falls, naming this sensor network as Smart Floor [5]; Wei Xi utilized a high-definition camera as a data acquisition device to rapidly
construct a detailed model of indoor 3D real-world scenes with guaranteed shooting
continuity, distance to the target and certain image overlap, and developed a platform
for indoor 3D real-world display system [6]; Duo et al. proposed an improved k-means text clustering algorithm, and the iterative
class centers of the improved algorithm consisted of topic feature vectors, which
could avoid the influence of noise [7].
The purpose of this study is to make innovative improvements on the basis of B/S architecture,
propose a web-based interactive VR scene collaborative display system for interior
design, and propose a panoramic camera splicing scheme. Firstly, the B/S architecture
is used to share and interact the collaborative instructions between the client and
the server, and the XML data transfer format and Aiax polling mechanism are used to
share and transfer the 3D model data over the network. Starting from virtual reality
and network database technology, a web-based VR display system is developed using
virtual reality modeling language VRML, Java, MYSOL and ASP. The application server
is implemented in Java, and the client is a Java Applet embedded in an HTML page,
a VRML reader plug-in and a part of an HTML page. the Applet and the VRML reader communicate
through an external authoring interface (EAI). Exploring the image stitching principle
of the stitching panoramic camera, we propose an implementation scheme for sphere
panoramic stitching in mobile, using gyroscope sensor rotation angle main code and
video screen rendering, and finally combining with timestamp-based synchronous decoding
algorithm of multiple video streams to realize a panoramic visualization experience
based on mobile.
2. Web-based collaborative editing method based on B/S architecture
For the traditional local-based 3D scene editor only supports single-user local browsing
and editing, this chapter proposes a 3D scene editing method that can realize multi-user
off-site synchronous work through network on the basis of the key technology of collaborative
editing based on B/S architecture. Among them, the network collaborative editing technology
is the focus of this chapter, which can realize the sharing and interaction of collaborative
instructions between the client and the server through the B/S architecture, and use
XML data transmission format and Ajax polling mechanism to realize the network sharing
and transmission of 3D model data.
2.1 XML-based 3D model data transfer
XML is the abbreviation of Extensible Markup Language (Extensible Markup Language),
derived from the standard General Markup Language SGML, which is a standard of data
format description language [8]. XML can be used to label data, define data types, and provide a unified method to
describe structured data in applications. It is an effective tool for dealing with
distributed structural information in the Internet environment [9]. Back in 1998, the W3C published the XML1.0 specification, which was used to simplify
the transfer of document information over the Internet.
The structured information description document of XML can be seen as a tree consisting
of many elements, one of which contains several attributes. For the 3D model used
in this paper, in order to reduce the amount of network transmission data, it is necessary
to use XML for the structured information description of the 3D model, i.e., the model
shape, voxels, data and other information are corresponded to them by the elements
and attributes in XML. And for the realization of collaborative editing between different
systems, should use each three-dimensional scene editing system common support for
the feature unit.
Streaming mode refers to the three-dimensional model file after special compression
processing, and then decomposed into a compressed package, by the server to the client
for continuous, real-time transmission. In systems that use streaming transfer methods
users usually only need to go through a few seconds or tens of seconds of start-up
delay to realize the decompression and browsing of compressed files on the computer
using the corresponding hardware and software [10]. If the file occupies a large space, the file is decomposed into multiple compressed
packages during compression processing, and the user receiving the file can first
decompress part of the compressed package, and the remaining part will continue to
be transmitted within the background server. The streaming transmission method reduces
the user waiting time and greatly improves the efficiency.
2.2 Implementation of multi-client collaborative editing
Before the advent of Ajax technology, Web applications communicated in a very cumbersome
way, generally going through several steps of submission waiting and reloading. That
is, whenever a user submitted an HTTP request to the server, he or she had to wait
for the server to process the request and return information [11]. Finally, the user receives the information and reloads the Web page, and the user's
actions are always synchronized with the server's response processing. This communication
wastes a lot of bandwidth resources because most of the HTML code in different page
requests from the user is the same. In turn, the user needs to send page requests
to the server frequently and needs to wait for the server to process them, resulting
in unnecessary time wastage for the user.
To solve these problems, Ajax proposes a mechanism that can communicate with the server
asynchronously. By introducing an Ajax engine written in JavaScript, instead of direct
interaction between the client and the server [12], the Ajax engine is similar to a router placed between the client and the server
and is mainly responsible for handling the user interface display and communication
with the server. The user does not need to wait for the processing of the server all
the time as before, and can undertake part of the server's work by himself. Ajax applications
only retrieve some necessary data information from the server when requesting a page
in order to reduce the waiting time and the amount of data transfer, and the server's
response and data can be processed by employing JavaScript on the client side. The
specific processing flow is shown in Fig. 1(a).
The key to the implementation of Ajax technology is the application of XML Http Request,
which provides an asynchronous communication method for JavaScript scripts in the
browser, allowing the client's Web page to obtain the latest real-time data from the
server without refreshing. The collaborative editing of 3D scenes between multiple
users in this paper is achieved by using Ajax's long polling mechanism. By creating
an XML Http Request object, the client can send information about local operations
to the server and get real-time data from the server in an asynchronous manner. The
server then forwards the message to other clients [13], and other clients update the page asynchronously according to the received data
to finally synchronize the multi-user browser interface.
In order to meet the requirements of multi-user page synchronization, the client needs
to obtain the real-time operation information of the current user from the proxy server
through the corresponding mechanism and update the page according to the information
returned by the proxy server [14]. In order to achieve real-time data exchange and event processing response on the
client side, the simplest solution is to use HTML Refresh technology. The principle
of this technology is that the client sends a request to the server without interruption
once the server has data updates, the client can get the latest data information from
the server through the response to get real-time data response. However, this method
has a problem that needs to be considered in depth, that is, how to determine the
refresh frequency of the client. Because when the refresh frequency is too high, although
the updated data can be obtained in a timely manner. However, it may increase the
burden of the server and cause unnecessary waste of broadband resources, while the
refresh frequency is too low to ensure the timeliness of the client data [15].
In order to meet the system requirements, we use the polling mechanism of Ajax to
solve the problem. As shown in Fig. 1(b), the client sends an asynchronous HTTP request by calling an XML Http Request object
using a JavaScript script. The server receives the request and calls the corresponding
processing function to collaborate with the user's real-time request data, and the
client request fails when the server has no data to update [16]. In the above way, the response from the server can be obtained in real time without
any modification or request action by the client. And the latest real-time data is
fetched without the client's knowledge to complete the latest data acquisition in
collaborative editing. ajax technology achieves multi-user asynchronous communication
with good real-time data and low broadband requirements, which can be supported by
general browsers nowadays.
Through the client's JavaScript Settings, requests are periodically made to the proxy
server according to the system-set interval T. Once a data update is detected on the
proxy server, the system automatically retrieves and invokes the handler function
for the update event through the client-side JavaScript. Then the DOM is parsed, and
the update data of the server can be obtained through parsing, so as to realize the
real-time update of the page.

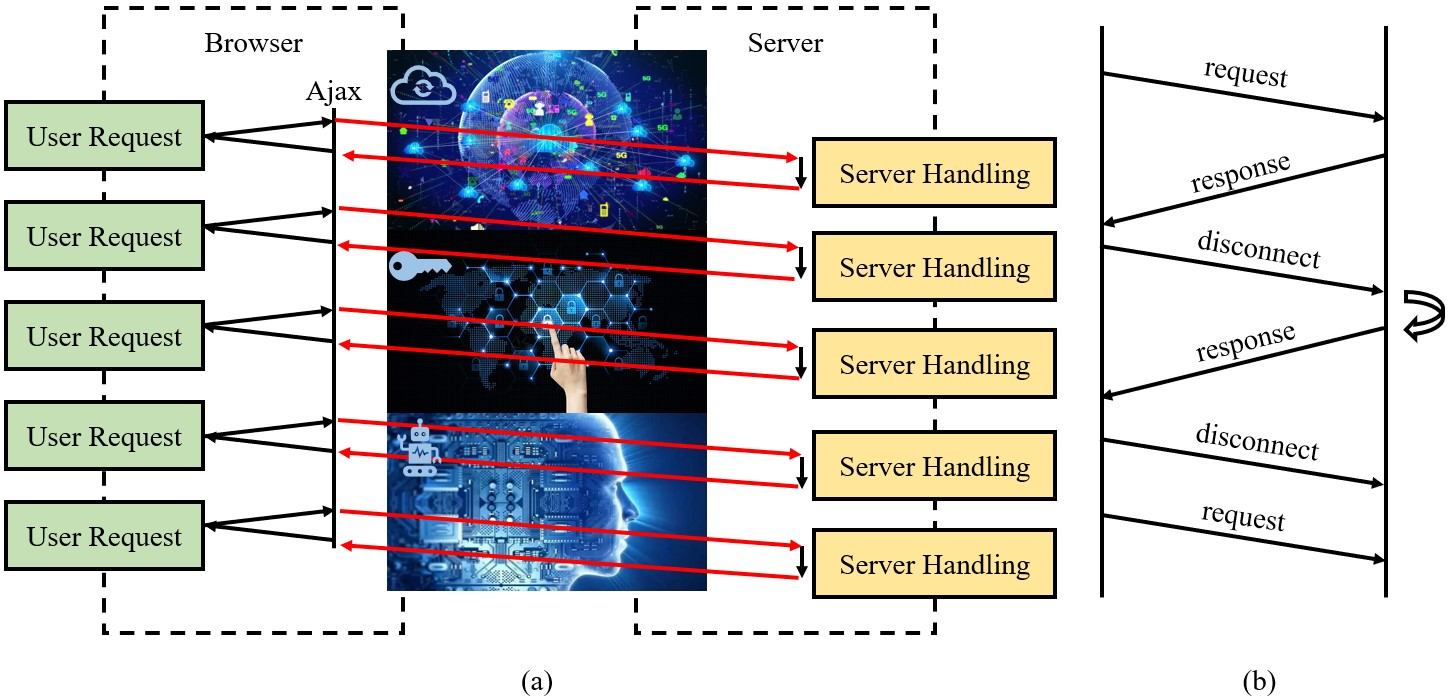

Fig. 1. Ajax's asynchronous communication and polling mechanism.
2.3 Implementation of other collaborative functions
The basic idea of the DR (Dead Reckoing) algorithm is that during the simulation design
process, a low-order approximation model (DR model) reflecting the motion behavior
of the simulated entity of the sending node is put into the receiving node, and the
sending node also keeps its own DR model. In this way, the sending node does not have
to send its state to the receiving node in every simulation cycle, but only sends
the current state information to the receiving node when the deviation between its
real state and the projected state of the DR model exceeds a predefined value [17]. The receiving node uses the DR model to project the possible state of the simulated
entity of the sending node based on the previous reported information between two
state updates of the sending node. This can greatly reduce the transmission of information
between simulation nodes and reduce the communication volume to 90% to 50% of the
previous one, thus greatly reducing the simulation requirements for network bandwidth
and capacity.
Let the position of the sending node be xo, the velocity be vo, and the acceleration
be ao in the last state update message, the recursive equation of the first-order
DR algorithm is
The recursive equation of the second-order DR algorithm is
where $h$ is the frame length of the simulation and $k$ is the number of recursive
steps from the last update.
Since the essence of the DR algorithm is to use a low-order model to approximate the
real motion behavior of the moving object, it is suitable for cases where the motion
trajectory changes gently.
The problem of compressing 3D data models is solved with the advent of XVL, and the
transfer of 3D data becomes easier over the network. However, the system needs a platform
for designers to communicate with each other, and the following describes the specific
browsing synchronization process for two computers by deploying a server.
First, the key technologies introduced in this chapter are used to build a collaborative
editing platform, modify the platform commands of the 3D scene editor, and publish
the platform commands as a Unity Web Player plug-in via Visual Studio.
$\mathrm{<}$head$\mathrm{>}$
$\mathrm{<}$meta http-equiy=``Content-Type'' content=``text/html; charset=utf-8''$\mathrm{>}$
$\mathrm{<}$title$\mathrm{>}$A C Cloud $\mathrm{<}$/title$\mathrm{>}$
$\mathrm{<}$script type=`text/java script' src=`jquerymin.js'$\mathrm{>}$$\mathrm{<}$/scri
pt$\mathrm{>}$
$\mathrm{<}$script type=`text/java script'$\mathrm{>}$
function Qian Gu Yi Zhen () $\mathrm{\{}$
$\mathrm{\}}$
$\mathrm{<}$!_ _
var unity Object Ur1 = ``Unity Object2.js'';
if (document. location. protocol == `https:')
unity Object Ur1=unity Object Ur1.replace(``http://'',``http: //ssl-'');
document. write (`$\mathrm{<}$script type=
``text $\mathrm{\wedge}$ java script'' src=```+unity Object Ur1'' +'''$\mathrm{>}$$\mathrm{<}$/script$\mathrm{>}$;
_ _$\mathrm{>}$
$\mathrm{<}$/script$\mathrm{>}$
3. WEB-based interactive VR system for interior design
A WEB-based VR display system is a computer information system that is compatible,
processing, displaying and applying virtual reality in an Internet or network environment.
Its basic idea is to provide a virtual reality environment on the Internet, allow
users to browse through a browser and access the system's data and functional services
in the virtual reality environment [18]. In this paper, starting from virtual reality and web database technologies, a VR
display system based on WEB approach is developed using various technologies such
as virtual reality modeling language VRML, JAVA, MYSQL and ASP. Using this display
system, a realistic virtual display of products can be made through the Internet,
and the realism of interior design can be obtained through interactive operations.
3.1 VR system framework
The system network structure adopts B/S structure, users roam in the 3D exhibition
hall through the browser in the client at will, and customize the exhibits interactively
in real time, and the client can adjust its own structure dynamically according to
the exhibit information, which is easy to expand. The application server provides
VRML scenes and data access. The data server provides all exhibits in the exhibition
hall. The B/S structure simplifies the client software, and all development, maintenance,
and upgrades can be centralized on the server side [19]. The B/S structure requires only TCP/IP protocol for communication. in the B/S structure,
the upgrade and maintenance of the system version is performed on the web server side
and is only dynamically downloaded when the user needs access, ensuring that the user
is using the latest version. The software architecture of the system is based on web
technology, virtual reality technology and database technology. The application server
is implemented in Java, and the client is a Java applet embedded in an HTML page,
a VRML reader plug-in, and a part of an HTML page. The web server receives client
requests, interprets and connects to the database via JDBC, queries the exhibits,
and returns the results to the client. The software architecture is shown in Fig. 2.

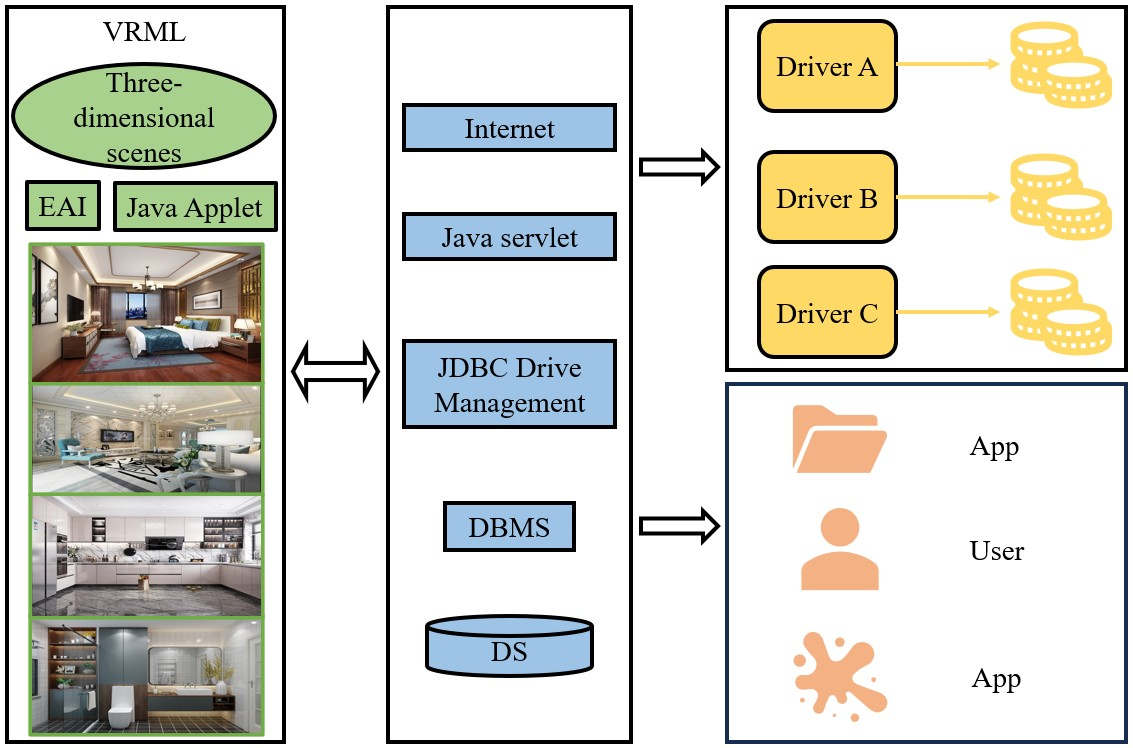

Fig. 2. VR interactive system framework.
3.2 Java and VRML interaction control
To enable interaction between the VRML world and the external environment, VRML provides
a set of external programming interfaces EAI (External Authoring Interface). This
interface consists of a set of functions on browser operations that, when called,
allow external programs to affect objects in the VRML world.
In the Java language, these functions are encapsulated in 3 packages: VRML. eai. *,
VRML. eai. event. *, VRML. eai. field. * (or VRML. external. *, VRML. external. field.
*, VRML. external. exception. *). First [21], call get Browser () encapsulated in the VRML. eai. browser Factory class to get
a Browser class instance (note: this class provides three methods to get a Browser
instance: get Browser (Applet), get Browser (Applet. String, int), and get Browser
(Internet Address, int). The first two functions are local calls, the latter one supports
remote calls and requires the IP address and port number). Then, with the resulting
Browser instance, call the Browser. get Node (String) function (this function cannot
access the node in the VRML scene using the In Line language). Finally, call get Event
In (), get Event out () encapsulated in the VRML. eai. node class. This allows you
to access the domain of each node in the VRML scene and change the state of the node
as required, thus enabling its interactivity.
Using the Browser and Node classes provided by the VRML. eai package, the VRML world
can be manipulated directly by external EAI applications without the use of Script
nodes and Script classes and routing, greatly enriching the functionality of VRML.
However, this method also has its limitations, it can only control the VRML world
through Java applets. This is because the parameters in the get Browser (Applet) function
can only be instances of Applet applications [22].
The external programming of java is implemented through the EAI class (External Authoring
Interface), which allows access to the currently running VRML world, so that the scenes
inside the VRML world can be manipulated, controlled and modified directly from the
outside. This topic implements java to dire ctly control the addition, deletion, scaling,
panning, and rotation of VRML scene objects, and also to modify the texture.
In order to achieve VRML, the flexibility and perfection of the scene, it is often
necessary to implement VRML in the Applet, and dynamically add and delete nodes. To
add nodes dynamically, we need to use the create VRML From String() method of class
Browser. The argument to this method is a VRML compliant string, which returns an
array of Node-like instances. These Node instances are generated in the external environment
of the VRML scene. An Applet can add Children to a Transform node by sending the Add
Children event In the Transform node.
For the scene model material change segment, a node named Cone Color is defined in
the VRML scene and then accessed in the Java program with the browser. get Node (`Cone
Color') statement. In this case, browser is an instance of the Browser class, which
is a Java wrapper around the VRML scene. It contains not only various methods for
getting information about the current browsing environment, but also the get Node
() method. This method returns an instance of the Node class by passing a string parameter.
This Node class instance is actually the Java Applet equivalent of the node named
after the parameter string in the VRML scene. Getting the Node class instance means
getting the index of the node, which can then be accessed.
3.3 Interactive VR system design
First of all, the overall planning of the virtual display system. According to the
characteristics of enterprises and display goods, consumer groups positioning, virtual
display system to establish the purpose of the site space to do overall planning,
including functional module division, product classification, product display mode.
At the same time to consider the theory of human-computer interaction.
Then determine the design style of the virtual display, color tone to meet the characteristics
of enterprises and display goods and consumer groups positioning. The design style
should also have relevance to the image of the enterprise in reality [23].
Finally, the virtual display local design intention is proposed. The local design
should be closely focused on the overall design plan of the display, which includes:
shopping cart, registration and login, and other various parts.
The first task of system planning and design is to determine the core part of the
system and its module composition. The whole system adopts a structured design approach.
The system modules were designed and developed in accordance with the principle of
overall planning and distributed implementation. With the gradual improvement of the
system's software and hardware conditions, sub-systems and sub-systems can be gradually
improved and increased, so that the entire system module can be truly decomposed layer
by layer and structured rigorously.
The web-based virtual display system is applied to a new interactive platform for
interior design, which is designed and implemented based on customer needs, display
design, human-computer interaction theory and computer technologies such as network,

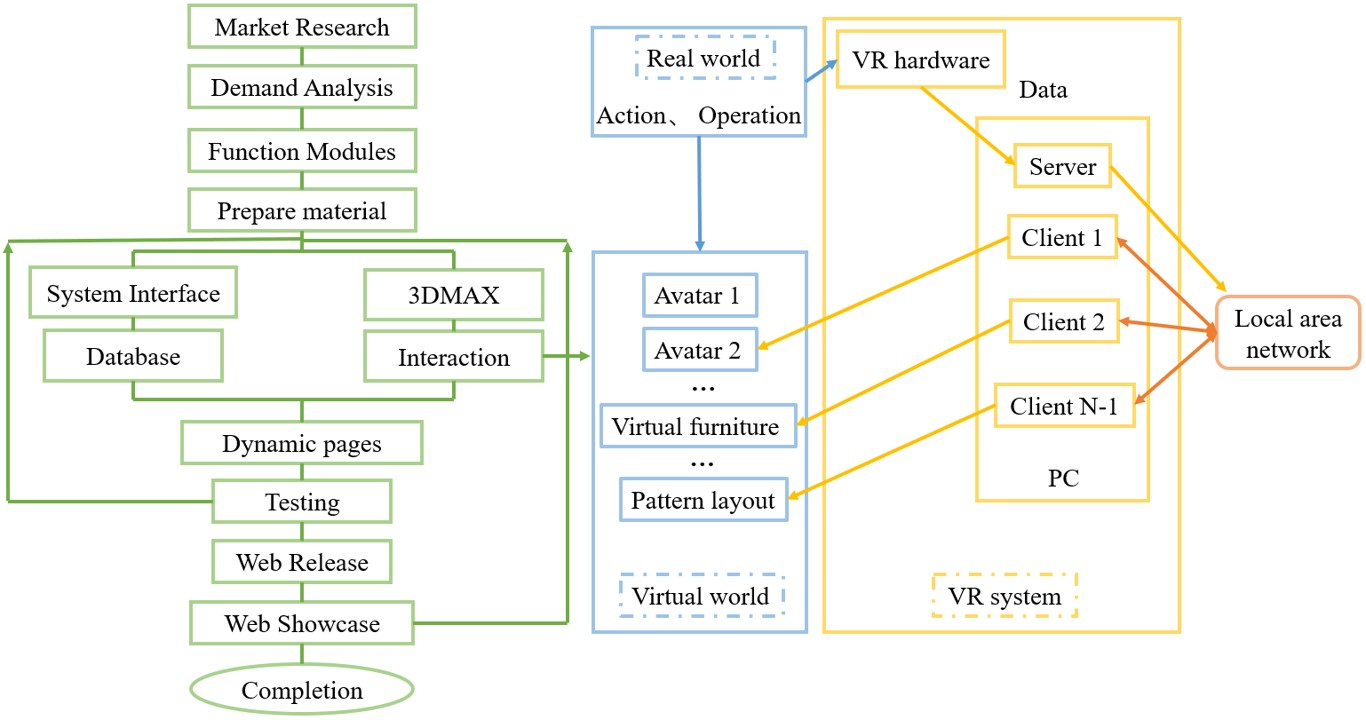

virtual reality and database. The workflow of establishing the system is shown in
Fig. 3.
The overall plan of this virtual display system is based on the combination of VRML
and JAVA to establish a browser-based product display and configuration. And install
the VRML browser plug-in Cortona Client developed by Parallel GrPahics to display
VRML scenes. And the Java Applet embedded in the same interface is used to achieve
human-computer interaction to control the VRML scene and get feedback from the scene
to realize the online 3D dynamic display of commercial products. At the same time,
it realizes the dynamic interaction between the user and the virtual product model
on the web such as: scaling and rotation, movement, color and material and other attributes
modification: it realizes the product model animation, sound and other functions.
The system adopts the B/S model, and for the adopted system model, the ASP language
is chosen as the system development environment to create dynamic WEB pages or generate
powerful WEB applications. ASP can be used to add interactive content to WEB pages
or to compose entire WEB applications with HTML pages. The combination of VRML and
Java enables control interaction with virtual product models.
The display system is a three-level model architecture: browser-WEB server-database
server. Due to the encapsulation of the TCP/IP HTTP server and database communication
protocol, the Client side of different networks and machines have a unified client
access interface. The system framework is shown in Fig. 4(a).
In this architecture, the client user can make an interactive request to the server
through the client browser, and the server side will respond to the client's request
and return the corresponding information from the database to the client to achieve
an interactive response. The technical framework for implementing the system is shown
in Fig. 4(b).
The browser side is a VRML and Java Applet embedded in the same page, and the VRML
files are displayed through VRML plug-ins such as Cortona. The server side is a WEB
server and a standalone Java application, also known as an HTTP server, which is responsible
for passing the appropriate multimedia data between the browser and the data server
for file distribution. The Java application gets the request for data manipulation
and gets the relevant data from the database through JDBC, then converts the data
to HTML and returns it to the client.

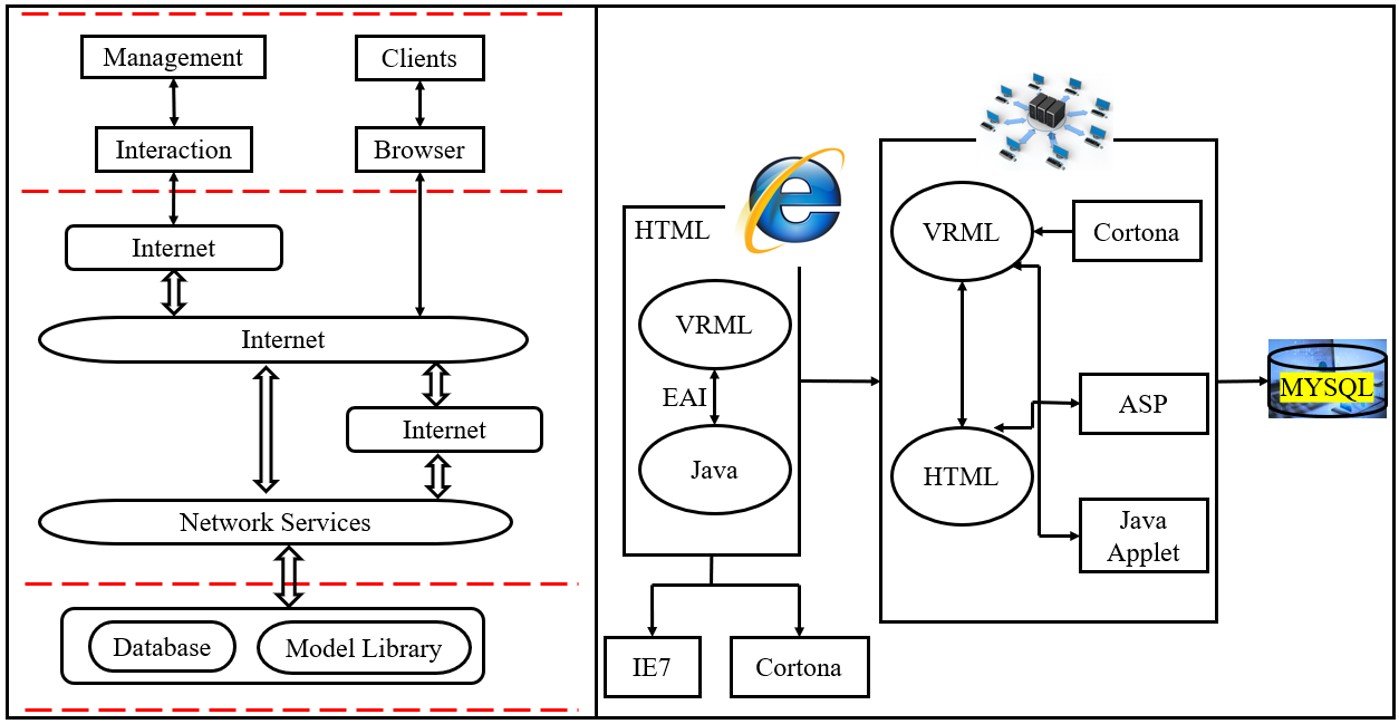

Fig. 4. System architecture and technical framework diagram.
4. Implementation and testing of a WEB-based interactive system
This paper initially explores the image stitching principle of stitching panoramic
camera, proposes the implementation scheme of sphere panoramic stitching in mobile
terminal, uses gyroscope sensor rotation angle main code and video screen rendering,
and finally combines the timestamp-based synchronous decoding algorithm of multiple
video streams to realize the implementation of an interactive system for Web.
4.1 Main algorithm implementation
The classes related to sensors provided by this system are shown below:
VR sensor: Variable indicating the sensor information of the virtual reality panoramic
vision, used to save the sensor's position, determine the accuracy and other information.
Sensor Orientation: indicates the sensor orientation, and is used to determine the
information of the sensor to obtain the orientation.
Declare a function phone VR (), when setting the gyro parameters, you need to use
orientation Is Available and rotation Quat call this function, in order to achieve
the use of gyro sensor rotation angle has been determined when the correct screen
orientation.
The main code for the gyroscope sensor rotation angle is as follows:
var screen Orientation=(util. get Screen Orientation () * deg to rad)/2;
var screen Transform=[0,0,-Math. sin (screen Orientation),
Math. cos (screen Orientation)];
var device Rotation = quat. create ();
quat. multiply (device Rotation, device Quaternion, screen Transform);
var r22 = Math. sqrt \eqref{GrindEQ__0_5_};
quat. multiply (device Rotation, quat. from Values (-r22, 0, 0, r22),
device Rotation);
Using the Eigen library function, the rotation matrix is converted to Euler angles
by calling the rotationTransfer.py script.
Among them, since the panorama roaming project uses the left hand coordinate system
for coordinate representation, the rotation matrix in the right hand coordinate system
is converted to the left hand coordinate system, and the rotation_matrix. Euler Angles
function of Eigen library is called from the rotation matrix to the Euler Angle.
The implementation of the video rendering process operates on both the projection
to the surface texture and the drawing of the graphics, both of which are performed
using shaders. The main implementation code is as follows.
web GL. gl. active Texture (web GL. gl. TEXTURE0);
web GL. gl. bind Texture (web GL. gl. TEXTURE 2D, texture);
web GL. gl. uniform 1i (shader. uniforms [`u Sampler'], 0);
web GL. gl. uniform1f (shader uniforms[`eye'], eye);
web GL. gl. uniform1f (shader. uniforms [`projection'], projection);
The main implementation code of the drawing is as follows.
web GL. gl. bind Buffer (web GL. gl. ELEMENT_ ARRAY_ BUFFER, vertices Index Buffer);
web GL. gl. draw Elements (web GL. gl. TRIANGLES, 6, web GL. gl. UNSIGNED_SHORT, 0);
4.2 Implementation of a Web-based VR system

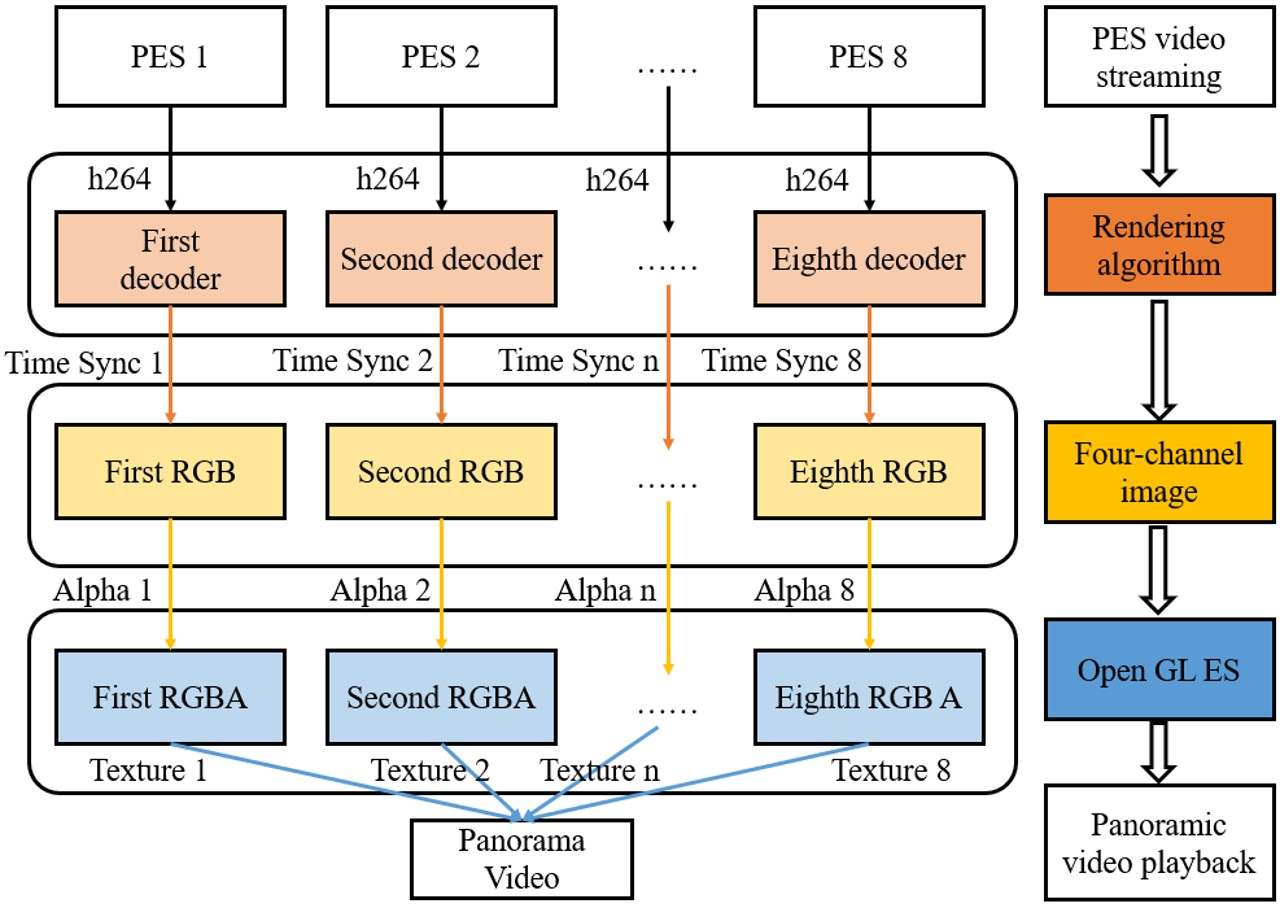

This paper develops a mobile-based panoramic video player by combining the simultaneous
decoding and rendering algorithm of multiple PES video streams and four-channel image
stitching fusion technology. The player can clearly play the panoramic video streams
recorded by the stitched panoramic camera, considering the processing speed of the
current mobile chip. The player can smoothly play the following types of stitched
panoramic video streams: $176\times144\times8$, $352\times288\times5$, $352\times288\times8$,
$704\times576\times8$. The first two multipliers of each data set represent the resolution
of each video stream, and the last multiplier represents the number of cameras of
the stitching camera [24], e.g., $176\times144\times8$ represents the video stream of 8 stitching panoramic
cameras, where the resolution of each video stream is $176\times144$. To sum up: the
player supports the playback of panoramic video streams up to 3 megapixels ($704576\times8$).
The architecture diagram of the mobile-based panoramic video player is shown in Fig. 5.
Fig. 5. Flow chart of mobile-based panoramic video player.
In order to enhance the sense of interaction between users and panoramic video, this
paper adds a gesture control module to the panoramic player. The specific experience
effects are:
Single-finger mode. By dragging horizontally with one finger, the sphere panoramic
video can be rotated 360 degrees around the Z-axis direction for observing horizontal
360-degree panoramic image information. By dragging in the straight direction with
one finger, the sphere panoramic video can be rotated 180 degrees around the X-axis
direction for observing the vertical 180-degree panoramic image information. Two-finger
mode. The distance between the two fingers is controlled by the stretching and closing
of the two fingers between the screens, and then the spherical panoramic video is
reduced and enlarged, with a stretching multiplier of about 8 times. Single and double
finger sharing mode. Through single and double fingers cross use, it can realize the
zooming in and out of any area of the panoramic video, and achieve 360 degrees without
dead angle special display.
Server-side design, we define the broadcast command client set, its client number;
define the model object, extract VRML model data. Define object objects, extract object
data from virtual scene, try to apply for service port, establish server-side Soket.
then wait for client connection, update client number, define object input stream,
output stream. Read the client identity marker, send the model data and its object
data.
Broad cast Set bs=new Broad cast Set (MAX CLIENT_NUM);
Server Socket server Socket = null;
boo lean listening = true;
int client Number =0;
Vrm1Model vm =new Vrml Model ();
Vrml object vo=new Vrml object (MAX_ OBJECT_ NUM, vm);
server Socket = new Server Socket (4444):
while (listening)
$\mathrm{\{}$
Socket;
socket = server Socket. accept ();
client Number++;
new Vrml Thread (socket, client Number, bs, vm, vo). start ();
$\mathrm{\}}$
server Socket. close ();
Object Input Stream in=null;
Object Output Stream out=null;
in=new Object Input Stream (socket. get Input Stream ());
out=new Object Output Stream (socket. get Output Stream ());
input Vrml Command= (vrml Command) in. read Object ();
String client Type=input Vrml Command. get Object Name ()
out. write object(vm);
out. flush ();
out. write object(vo);
out. flush ()
When logging in, the server comes to determine the type of the client. If the client
is a normal client, it does not have the permission to control the model objects directly
[25] and adds the client's object output stream to the broadcast set directly. It is also
relatively simple to exit by removing it from the broadcast domain.
bs. client Out Set. add (``client''+client Number, out);
input VRML Command= (VRML Command) in. read object ();
bs. will remove (``client''+client Number);
If the client is judged to be the master client, then it is made to obtain the permission
to broadcast the master client and read the master client control commands. And it
can link the database through JDBC to facilitate dynamic re-add model objects to the
scene to realize the diversity of scene objects.
DB Connect driver=new DB Connect ();
Connection con=null;
Result Set rs=null;
Statement sta=null;
String sql=null;
driver. set URL (``jdbc: odbc: VRML'');
con=driver. get Connection ();
sta=con. create Statement ();
sql=``select*from model''
rs=sta. execute Query(sql);
bs. main Client=out;
bs. broad cast VRML Command (input VRML Command);
nput VRML Command= (VRML Command) in. read Object ();
4.3 System Testing
This section verifies the feasibility of Web VR stereo panoramic roaming system for
creating stereo panoramic roaming in Web pages through testing. The basic function
of the system is tested to verify the functional implementation of each module of
the roaming generation and display system. The camera pose estimation module is used
to verify the ability and effectiveness of the panoramic pose estimation algorithm
to solve the pose of the panoramic camera in the panoramic space. The ability and
effectiveness of the monocular panoramic depth estimation algorithm in solving the
depth information of panoramic images through the dual projection fusion method is
verified by the panoramic depth estimation module, and the feasibility of the scheme
is further verified by performance tests.
The camera poses estimation algorithm used in the system is tested. Three sets of
panoramic images are selected and their pose estimation is carried out separately,
and the comparison data between the estimated and real values of the three sets of
position and rotation angles are obtained, and the real values are actually measured
in the scene by physical devices. Among them, the position data are presented in the
form of scatter plots, and since the heights of the ground hot spots that identify
the locations of panoramic shots are set as ground heights, the y-axis values are
discarded and only the x and z axes are considered.
As can be seen from Table 1, the position estimates overlap well with the scatter plot of the true values, and
the rotation angle estimates are similar in value to the true values, meeting the
system requirements for panoramic positional estimation.
As can be seen in Fig. 6, as the number of concurrent users gradually increases, the system pressure gradually
increases, the average response time increases, and the throughput first increases
and then decreases. The throughput reaches the maximum of the system design range
when the number of concurrent users is 250, after which the throughput gradually decreases
when the number of concurrent users exceeds the system design range. Comparing the
stereo panoramic roaming and the ordinary panoramic roaming, there is no significant
difference in the response time and throughput, which indicates that both have almost
the same access performance and meet the performance requirements of the stereo panoramic
roaming scheme.
There is no significant difference in response time between stereo panorama tour and
ordinary panorama tour because the steps of calculating camera pose and depth map
of panoramic image are completed in the production process of stereo panorama tour
after uploading panoramic image. Users can read camera pose data and depth image storage
path directly from the database when accessing the stereo panorama tour, and then
import depth image for rendering.
As shown in Fig. 6, the computation time of depth map for 12 sets of panoramic images ranges from 10s
to 15s, and the average computation time is 12.19s, which meets the system requirements.
In addition, for the input panoramic images with different resolutions, the pre-training
model first converts them to $1024\times 512$ resolution images before depth estimation.
Therefore, the images with different resolutions have almost no effect on the computation
time of the depth map.
From the above analysis, when addressing scalability challenges associated with processing
larger data sets or increasing concurrent user interactions, a series of mitigation
strategies are often required to ensure system stability and efficiency. It mainly
includes the following strategies, vertical scaling: Enhance the processing power
of a single server, for example by upgrading CPU, memory, and storage devices. This
approach is suitable for scenarios where the data set is relatively small or where
the performance of a single node needs to be quickly improved. Load balancing: Use
a load balancer to distribute user requests to multiple servers to avoid overloading
any one node. This helps improve the availability and responsiveness of the system.
Caching strategy: For frequently accessed data, the use of caching can reduce the
number of database accesses, reduce latency, and reduce the pressure on back-end services.

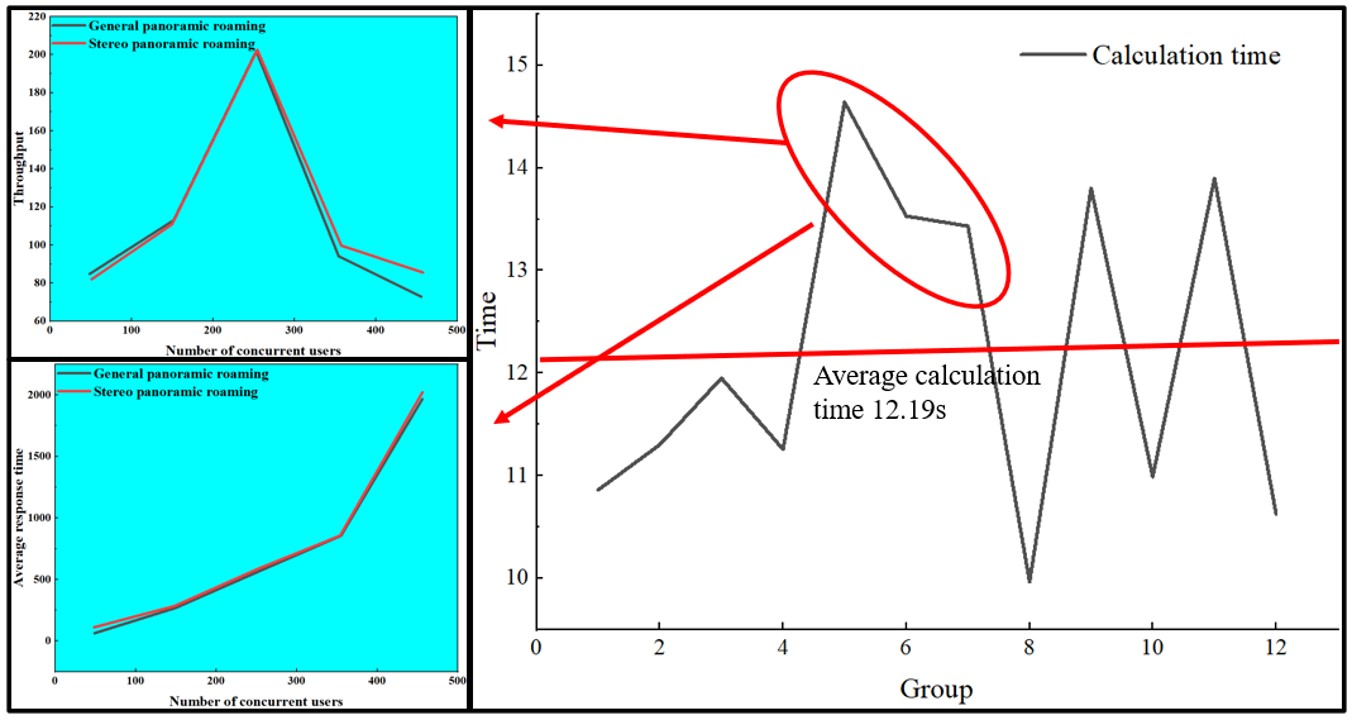

Fig. 6. Average response time and throughput comparison.
Table 1. Comparison of estimated and true values of rotation angle for three sets
of panoramic images.
Group
|
Serial number
|
Estimated value
|
True Value
|
rx
|
ry
|
rx
|
rx
|
ry
|
rx
|
1
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
2
|
1.6
|
-68.1
|
2.1
|
2.8
|
-59.6
|
2.4
|
3
|
-1.2
|
63.2
|
1.1
|
-1.7
|
58.4
|
0
|
4
|
1.7
|
150.4
|
-0.6
|
0
|
142.3
|
-2.7
|
5
|
-1.8
|
-172.4
|
-3.4
|
-1.4
|
-167
|
-3.3
|
2
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
2
|
2.3
|
126.3
|
2.2
|
1.4
|
123.4
|
1.2
|
3
|
1.7
|
39.2
|
1.3
|
2.4
|
34.6
|
1.8
|
4
|
-1.6
|
-132
|
-0.3
|
-1.8
|
-133
|
0
|
3
|
1
|
0
|
0
|
0
|
0
|
00
|
0
|
2
|
0.6
|
149
|
0.2
|
1.4
|
159
|
0.3
|
3
|
-1.6
|
-137
|
-0.7
|
-2.6
|
-156
|
-1.7
|
4
|
2.5
|
35
|
-0.7
|
2.9
|
38
|
0
|
5. Conclusion
Based on Web B/S architecture, this paper proposes an interactive VR scene collaborative
display system for interior design. The system is jointly developed by VRML, Java,
MYSOL and ASP, and uses the External Authoring Interface (EAI) to realize the interaction
between the VRML world and the external environment. Specific conclusions are as follows:
On the basis of the research on the key technologies of network collaborative editing,
this paper puts forward a solution suitable for the multi-person collaborative editing
problem in this paper, which mainly includes XML-based data transmission, multi-client
browsing synchronization and the realization of other collaborative functions, and
demonstrates the specific collaborative editing process between two clients through
experiments.
The application server is implemented by Java language, and the client is a Java Applet
embedded in the HTML page, VRML reader plug-in and part of the HTML page. Applets
and VRML readers communicate via an External Authoring Interface (EAI). The commercial
display mode is analyzed, the traditional display mode is compared with the network
virtual display, and the overall framework of the system is put forward according
to the design principle and design flow of the display system.
Initially explored the stitching principle of panoramic images, combined with the
main code of rotation Angle of gyroscope sensor and video rendering, completed the
spherical panoramic rendering of multi-channel PES video stream, and optimized the
interactive VR system for interior design. Finally, through the relevant functions
of gesture operation and multi-video selection on the mobile terminal, the interactive
panoramic visualization experience is brought to the user. System performance test
shows that the depth map calculation time of 12 sets of panoramic pictures of the
interior design interactive VR system proposed in this paper ranges from 10-15s, and
the average calculation time is 12.19s, which meets the requirements of the system.
The virtual display technology itself is also in the process of continuous development,
and this paper is only a preliminary study. The perfect combination of virtual reality
technology and VRML technology is an important research direction of interior design
network and visual display. This system is still lacking in the optimization technology
of the model, although it can do some simple optimization processing, but some better
optimization technology has not been used in the optimization processing of the model.
Future research can achieve better processing models and optimization work through
further learning. In addition, the camera pose estimation module of this system does
not involve the calibration of the panoramic camera, so the distance unit in the virtual
panoramic space does not correspond to the distance unit in the real scene. When using
the camera position information, the calculated value needs to be enlarged to a certain
proportion to be applied in the three-dimensional panoramic tour. In addition, pose
estimation with real scale can also be applied to the measurement of objects in the
scene, so it has high research value.
