Next Generation Networks (NGNs) will be heterogeneous due to the presence of the various Radio Access Technologies (RATs). The number of smartphone users is increasing exponentially, and smartphones are being equipped with multiple network interfaces. Smartphone users desire to be connected to the best network among the available networks while moving across geography. The requirement of seamless connectivity along with a maintained Quality of Service (QoS) can be achieved through Vertical Handover (VHO).Vertical Handover is an important factor to be considered in network design. The full potential of various access networks can be achieved using efficient and effective Vertical Handover Decision Algorithms (VHDAs). In this context, the research paper proposes a model for VHDA based on a Least Cost function. The primary function of VHDA is to provide ``All-Time Connectivity to the Best Possible Network with the Best Quality of Service at the Least Cost''. The main parameters considered in the VHDA are RSS, bandwidth, network coverage, packet loss, jitter, and latency.

※ The user interface design of www.ieiespc.org has been recently revised and updated. Please contact inter@theieie.org for any inquiries regarding paper submission.

### Journal Search

- (Research Scholar Department of Electronics Engineering, Fr. Conceicao Rodrigues College of Engineering, Agnel Technical Education Complex, Fr. Agnel Ashram, Bandstand, Bandra (West), Mumbai 400050, Maharashtra, India siddharthagoutam@gmail.com )
- (Principal, Fr. Conceicao Rodrigues College of Engineering, Agnel Technical Education Complex, Fr. Agnel Ashram, Bandstand, Bandra (West), Mumbai 400050, Maharashtra, India srija@frcrce.ac.in)
- ( Department of Science & Humanities, Fr. Conceicao Rodrigues College of Engineering, Fr. Agnel Ashram, Bandstand, Bandra (West), Mumbai - 400050, Maharashtra, India {prabavarthy, archana}@frcrce.ac.in)

## 1. Introduction

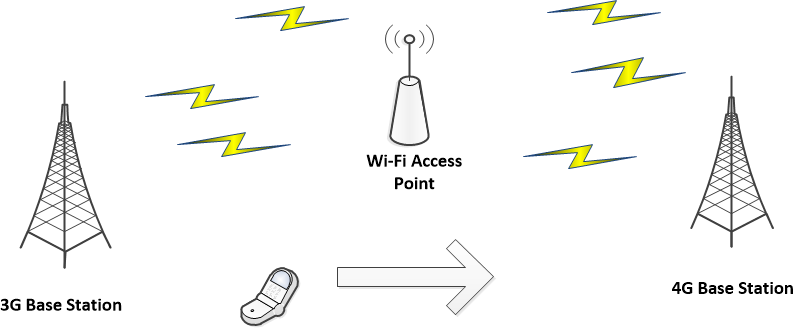

The telecommunication industry has changed because of the recent developments and growth in the field of wireless communications. These developments have provided high-speed bandwidth to smartphone users, enabling them to use multimedia and real-time services. Various Radio Access Technologies (RATs) are available to smartphone users in Heterogeneous Networks [1]. Fig. 1 shows the presence of Heterogeneous Wireless Networks. 3G and 4G networks have characteristics, such as wide coverage and support mobility. On the other hand, there is the deployment of Wireless Local Area Networks (WLANs), which can provide a high-speed bandwidth [1]. The above radio access technologies overlap each other. There have been significant developments, and new features have been introduced in smartphones, such as the availability of multiple network interfaces and increased memory size. These features help in running multiple applications concurrently in smartphones. The ever-growing demand for uninterrupted, seamless connectivity without degrading the Quality of Service (QoS) has highlighted the need for Vertical Handover (VHO) [2-4].

The organization of the paper is as follows: Section 2 provides a literature review. Section 3 covers the mathematical background. Section 4 gives the system model design and implementation. Section 5 describes the experimental scenario followed by experimental analysis in section 6. Section 7 reports the conclusions and future work.

## 2. Literature Review

A previous study [5] compared algorithms based on the techniques of the network selection. A review paper summarized the prominent mathematical theories used for modelling the VHO [1]. A survey of algorithms for mobility management was reported [6]. Yan et al. [7] published a review paper containing a survey of VHO algorithms. Another review paper outlining vertical handover decision algorithm (VHDA) based on various parameters was presented [8], and another study [9] reported various aspects of handover in 4G networks, with an additional paper focusing on handover management [10]. Obayiuwana and Falowo [11] published a review paper on the analysis of MADM techniques. Khiat et al. [12] reviewed the basics of handover, classification, and analysis of VHDAs.

Khalaf and Badr presented a model for estimating the triggering time for VHO and outage probability [13]. VHDA based on a policy mechanism was reported [4] . The decision for Handover was made using Fuzzy Petri Nets. In [14] the authors presented a VHDA that used On-Boarding Units & navigation system in the car. A VHDA based on a location-aware technique was also proposed [15], and a handover scheme based on an autonomic network architecture was presented [16]. Another study [17] proposed a VHDA that considers the techniques of vehicular networks. Barja et al. [18] evaluated the performance of VHDA based on experiments considering a range of networks, and Ulvan et al. [19] investigated the handovers in a femtocell. A VHDA based on load balancing techniques was reported [20], and Alhabo et al. [21] presented a VHDA between a macro cell and a small cell. The algorithm proposed was based on the throughput and balancing of network load. Barja et al. [22] presented a VHDA that captures network information. The network information was captured using geolocation, map information, and route calculation. An algorithm based on a hybrid scheme of congestion control and alleviation was summarized [23]. Performance analysis of VHDA between 3G & WLAN and performance analysis of VHO between WLAN, WiMax, and 4G were conducted [24,25]; the simulations were done using NS2. A VHDA based on Fuzzy Logic was reported [26]; the main parameters considered were Bit Error Ratio, delay, jitter, and bandwidth. Another study [27] presented an algorithm for the management of the radio resources of small cells. The authors have presented VHDA that minimizes outage probability [28].

VHDA based on the k partite graph, and another Multi-Attribute Decision Making (MADM) techniques and Mahalanobis distance were presented [29,30]. Abid et al. [31] reported a VHDA based on Utility theory. The model was based on the utility function for each parameter. A VHDA based on Markov Model was reported [32]. Another study [33] compared four Multi-Attribute Decision-making techniques, such as Multiplicative Exponential Weighting (MEW), Simple Additive Weighting (SAW), Technique for Order preference by similarity to an Ideal Solution (TOPSIS), and Grey Relational Analysis (GRA). Navarro and Wong [34] reported a VHDA based on the GRA technique. A VHO using MADM techniques, such as SAW and VIKOR, was presented [2]. A previous study [35] outlined a VHDA based on the Score function. The score function was calculated using the bandwidth, cost, and battery status as the input parameters. Yu et al. [36] reported the effects of VHDA mobile weights, network weights, and equal weights. Another VHDA based on the Nash bargaining model was presented [37]. A VHDA based on Modified Multiplicative Exponent Weighting (M2EW) was proposed [38]. Drissi and Oumsis [26] presented aVHDA based on MADM techniques. An analysis of network-centric, user-centric, and mixed schemes for selecting the network was analyzed [3]. A VHDA based on Analytic Hierarchy Process (AHP) and Principal Component Analysis (PCA) was reported [39]. Another study [40] presented a scheme for calculating the weights of the parameters for MADM based on the Bayes approach. A VHDA based on the MADM technique, in which the weights for the parameters are variable [41], a VHDA based on the Utility Function [42], and a VHDA based on MADM techniques [43] were reported. The algorithm considers the parameters in different priorities. A VHDA based on the entropy weights and TOPSIS was presented [44]. Singh and Singh [45] outlined a VHDA-based on MADM techniques, such as SAW, GRA, and TOPSIS. The networks considered are WLAN and WiMax. Mahardhika et al. [46] presented a VHDA using the MADM technique. The main parameters considered were the Received Signal Strength (RSS), traffic class, speed of the mobile user, and occupancy in the network.

Table 1 gives the summary of implementation and observation from key Research papers.

##### Table 1. Summary of Implementation & Observations from Key Research papers.

## 3. Mathematical Background

### 3.1 VHO-phases & Parameters

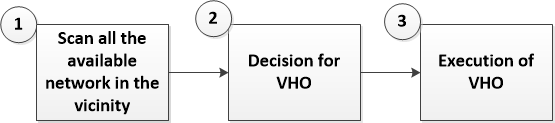

VHO is divided into three phases. Fig. 2 describes three phases of VHO [47].

The first phase is the information-gathering phase. In this phase, the information and details of all the available candidate networks, along with the parameters, are captured. This is also known as the System Discovery phase. The second phase is very important. In this phase, the decision for the handover is done based on the parameters captured in the first phase. This is also known as the network-selection phase. The third phase refers to the performing of the handover. The handover is performed in this phase. This is also known as the handover implementation phase [8, 48, 47]. Fig. 3 shows the main parameters that need to be considered for an effective VHDA.

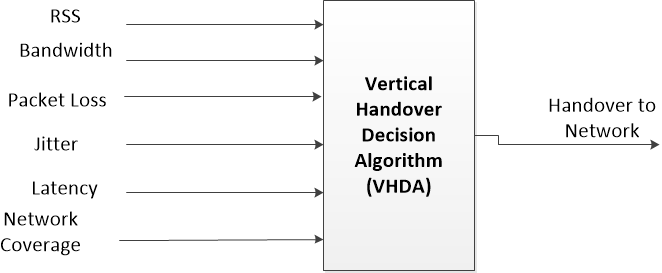

$\textit{Handover}=f^{n}\left(\begin{array}{l} RSS,\textit{Bandwidth},\textit{Network}\,\,\textit{Coverage},\\ ~ \textit{Packet}\,Loss,\,\,\textit{Jitter}\,and\,\textit{Latency} \end{array}\right)$.

Received Signal Strength (RSS) is the most critical parameter to be continuously monitored to ensure good connectivity. Quality of Service (QoS) depends on Latency (L), Jitter (J), Packet Loss (PL). Good Network Coverage can reduce frequent handover overheads [49-51] %.

Table 2 captures the details of the parameters for VHDA [7, 48, 49, 52-55]

##### Table 2. Details of parameters for VHDA.

### 3.2 Analytic Hierarchy Process (AHP)

The process for AHP is as follows:

1.Construct pairwise comparison and build a pairwise matrix to make a decision.

The pairwise comparison is as follows -

##### (1)

$ X=\left[\begin{array}{lll} x_{11} & x_{12} & \ldots \ldots x_{1n}\\ x_{21} & x_{22} & \ldots \ldots x_{2n}\\ x_{n1} & x_{n2} & \ldots \ldots x_{nn} \end{array}\right]. $where n denotes the number of attributes compared

$x_{ij}~ $are obtained based on Saaty’s scale for the pairwise comparison mentioned in Table 3.

2.Construct Normalized decision Matrix, applying the sum normalization technique to matrix X. The normalized matrix A

where a$_{\mathrm{ij}}$ is given by

3.Determine the weight of each criteria using the formula

Such that $\sum _{i=1}^{n}W_{i}$ = 1

4.Verify the consistency of the pairwise comparison using Consistency Ratio (CR) given by the formula [26,29]

where CI denotes the consistency index and is obtained as

where RI is the Random Index

For n = 6, RI = 1.24 [56]

CR denotes the degree of consistency in the pairwise comparison of attributes. The smaller the value of CR, the better the pairwise comparison of the attributes. The maximum allowable limit for CR is 10% [2]

Condition of acceptance: If CR < 0.1, the pairwise comparison is accepted.

### 3.3 Digraph Model

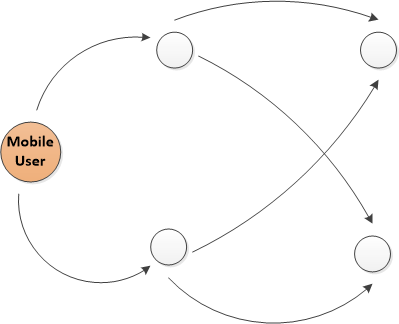

The digraph model is a graphical representation of the available networks and their inter-connections. The model consists of nodes and edges, where a node represents an available network, and an edge defines the cost of the connection. Fig. 4 shows the Digraph Model that was used for the selection of networks across the user path [29]

### 3.4 Calculation of Cost Function

The calculation of the cost function is as follows -

##### (1)

$ C_{2}\left(e_{ij}\right)=~ W_{1}L_{m}+W_{2}J_{m}+W_{3}PL_{m}+W_{4}NC_{m}+W_{5}B_{m}+W_{6}RSS_{m} $where L$_{\mathrm{m}}$, J$_{\mathrm{m}}$, PL$_{\mathrm{m}}$, NC$_{\mathrm{m}}$, B$_{\mathrm{m}}$, and RSS$_{\mathrm{m}}$ represent the average of parameters between the two access networks installed on edges e$_{\mathrm{ij}}$ [29]

## 4. System Model Design & Implementation

### 4.1 Proposed Algorithm for VHO

The proposed algorithm for VHO is based on the cost function, which was calculated using Eqs. (8) and (9). Other studies used AHP to calculate the MADM techniques, SAW, MEW, M2EW, TOPSIS, and GRA. The weights of the parameters using AHP and decision for handover was calculated based on the least value of the cost function.

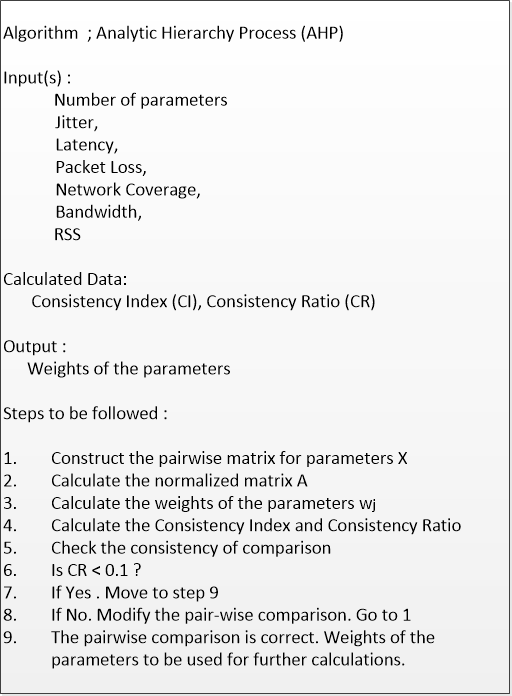

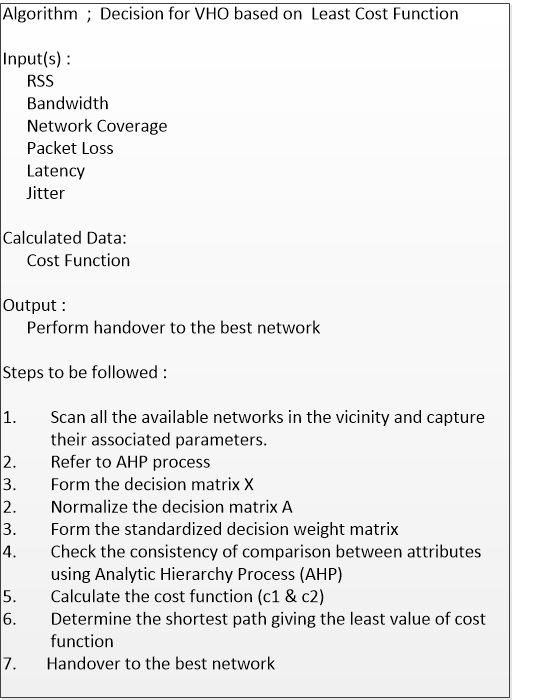

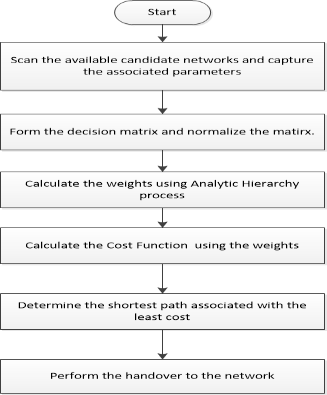

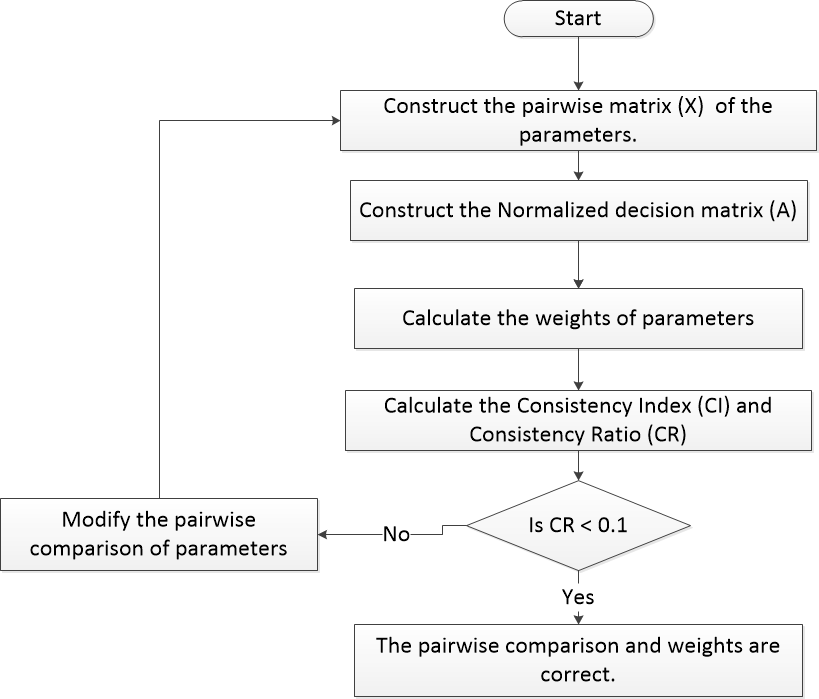

Figs. 5 and 6 gives the flowchart and algorithm for AHP. Figs. 7 and 8 show the flowchart and algorithm, respectively, for VHO based on the Least Cost function.

## 5. Experimental Scenario

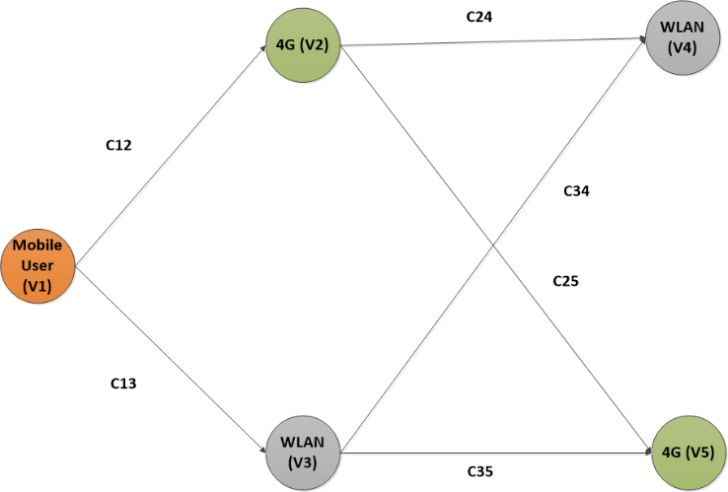

The simulation has been done for practical values. Considering the scenario of a mobile user traveling across the road. The mobile user comes across two networks 4G and WLAN (Public WLAN with APs deployed across the road). Fig. 9 shows the associated cost of the two available networks.

The following are the notations used in the graph.

V$_{1}$ - Mobile User

V$_{2}$ - 4G

V$_{3}$ -WLAN

V$_{4}$-WLAN

V$_{5}$- 4G

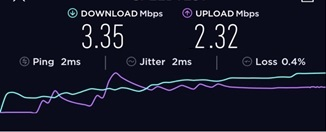

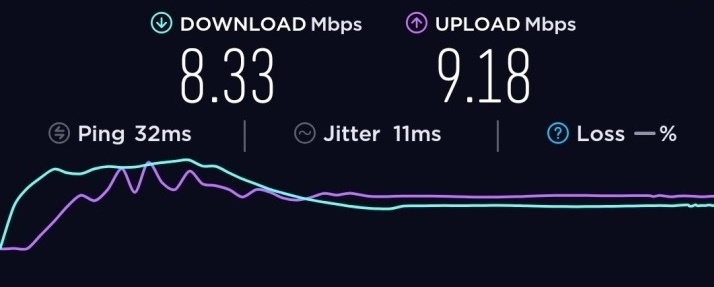

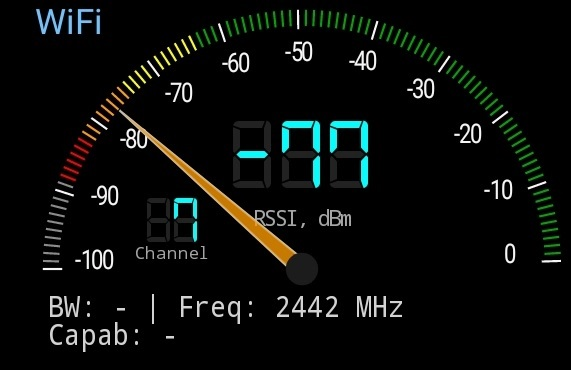

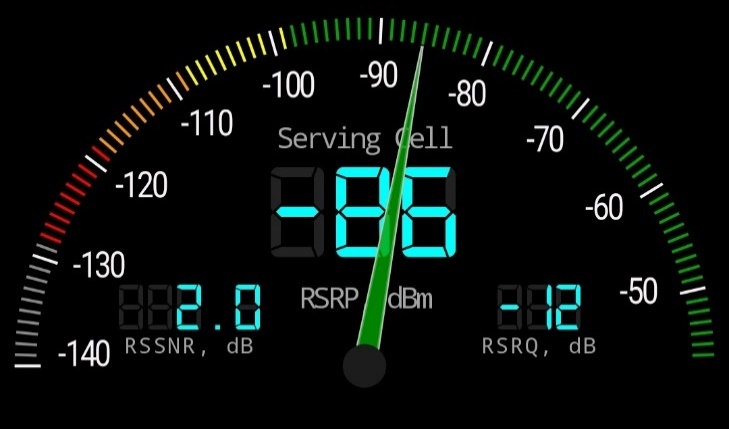

The screenshots of the measured values of parameters are captured in the following figures.

## 6. Experimental Analysis

The following analysis has been done based on the above scenario. Table 4 lists the Decision Matrix X.

##### Table 4. Decision matrix.

RSS is more important than Network coverage. Therefore, number 5 is captured for the RSS row against the network coverage column.

Although RSS and bandwidth are important, RSS plays a larger role than bandwidth for VHO. Hence, number 3 is placed in the RSS row for the bandwidth column.

Table 5 Normalized Matrix.

##### Table 5. Normalized Matrix.

Table 6 Weight Matrix

##### Table 6. Weight Matrix.

Parameter |
Weights |

Latency |
0.033 |

Jitter |
0.034 |

Packet Loss |
0.068 |

Network Coverage |
0.128 |

Bandwidth |
0.285 |

RSS |
0.452 |

Total |
1.00 |

Table 6 shows that RSS has the highest weight, followed by the bandwidth.

${\lambda}$$_{\mathrm{max}}$= 0.9988

RI = 1.24 [56]

CI = -1.0002

CR = -0.8066 < 0.1

Since CR < 0.1, the comparison is accepted.

The values of the parameters are normalized on the scale of 0 to 1. Table 7 lists the normalized values for 4G & WLAN.

##### Table 7. Normalized values for 4G & WLAN.

The calculation of the cost function is shown in Table 8.

##### Table 8. Calculation of Cost Function for 4G and WLAN.

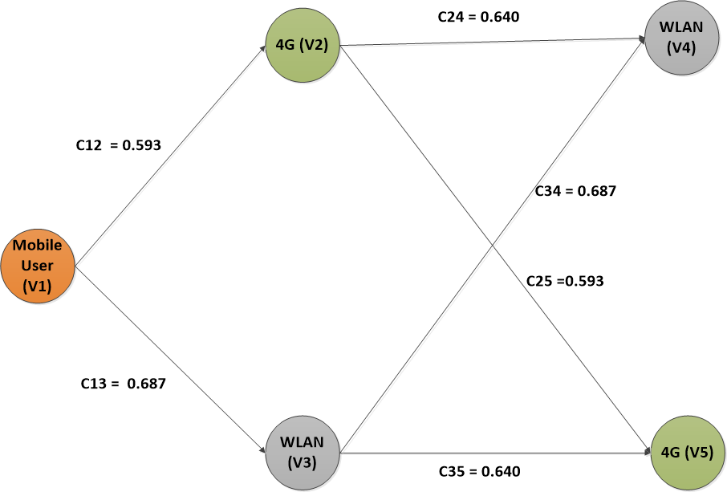

Fig. 14 shows the Graph Model.

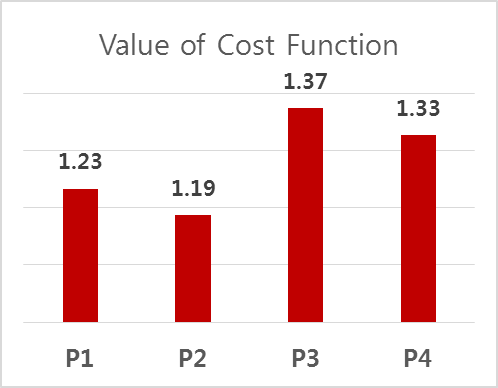

Table 9 provides details of the path-wise cost. Fig. 15 shows the path-wise details of the cost function.

##### Table 9. Path-wise details of the cost function.

Path |
Node |
Value of Cost Function |

P1 |
V1 – V2 – V4 |
1.23 |

P2 |
V1 – V2 – V5 |
1.19 |

P3 |
V1 – V3 – V4 |
1.37 |

P4 |
V1 – V3 – V5 |
1.33 |

Observation from Table 9 - The least-cost path has been selected as

V1 (MU) ---- V2(4G) ----V5 (4G) because the path gives the least cost value.

In this scenario, with the parameters under consideration, the preferred network was 4G over WLAN, due mainly to the better QoS offered by 4G, as evident from the measurement figures.

## 7. Conclusion & Future Work

This study designed and implemented VHDA based on the least cost function. A real-life scenario with measured parameter values was considered. The weights of the parameters were evaluated using Analytic Hierarchy Process. These weights were used to calculate the path costs for selecting the best network for handover along the route. Future studies will extend the scope of the algorithm by increasing the input parameters to VHDA, based on the network set-up, and implement the same where multiple candidate networks are available. In addition, a network fitness function will be derived for each network to make the algorithm more robust.
