2.1. Face Super-resolution

Recent advancements in deep learning have significantly propelled the field of FSR, with various innovative approaches emerging to address the challenges of reconstructing high-quality facial images from LR inputs. Transformer-based architectures, which have shown remarkable success in natural language processing, have been adapted for image restoration tasks, including FSR ^[16]. These models excel at capturing long-range dependencies, crucial for maintaining global facial structure coherence. For instance, Chen et al. ^[17] introduced a transformer-based model that leverages multi-scale feature extraction to enhance both global and local facial details. Concurrently, RNNs have been explored for their potential in iterative refinement processes. Zhang et al. ^[18] proposed an RNN-based approach that progressively enhances facial features through multiple recurrent steps, demonstrating improved performance on severely degraded inputs. Some researchers have also focused on incorporating facial priors to guide the super-resolution process. Wang et al. ^[19] introduced a method that utilizes facial landmark information to generate attention maps, effectively guiding the network to focus on critical facial regions. Hybrid approaches that combine different architectural elements have also gained traction. Li et al. ^[20] proposed a dual-branch network that simultaneously addresses global facial structure and local detail enhancement. Similarly, Niu et al. ^[21] introduced a cascaded refinement network that iteratively improves both the overall face structure and fine-grained textures. Despite these advancements, challenges remain in effectively integrating global context awareness with local detail refinement, particularly for extreme upscaling factors. Moreover, the computational efficiency of these models, especially in real-time applications, continues to be an area of active research. Our work builds upon these foundations, addressing the limitations of existing approaches by synergistically combining transformer architectures with recurrent refinement techniques.

2.2. Single Image Super-resolution

The field of SISR has undergone rapid evolution, providing crucial insights and techniques that form the foundation for FSR research. Early deep learning approaches, such as those proposed by Dong et al. ^[22], introduced CNNs to learn the mapping between LR and HR images, marking a significant leap from traditional interpolation methods. This was quickly followed by Kim et al. ^[23], who leveraged very deep networks with residual learning, demonstrating that network depth is critical for capturing complex image transformations. The pursuit of perceptual quality led to groundbreaking work by Ledig et al. ^[5], which pioneered the use of generative adversarial networks (GANs) and perceptual losses. This approach produced visually pleasing results that surpassed the limitations of pixel-wise loss functions, albeit at the cost of lower PSNR/SSIM scores. Enhanced GAN-based methods, such as those introduced by Wang et al. ^[24], incorporated a Relativistic GAN and a multi-scale discriminator architecture, effectively balancing global structure and local detail preservation. Attention mechanisms have proven to be powerful tools in SISR. Zhang et al. ^[25] proposed a channel attention module to adaptively recalibrate channel-wise features, demonstrating improved feature representation and reconstruction quality. Dai et al. ^[26] took this further by introducing a second-order attention network, leveraging both spatial and channel attention to focus on the most informative image regions and feature channels. The efficiency and effectiveness of recursive and progressive approaches have been highlighted in several works. Kim et al. ^[27] designed a deep recursive residual network that enables parameter sharing while maintaining high performance. Li et al. ^[28] introduced a progressive reconstruction framework, gradually upscaling images through multiple stages, which proved particularly effective for large upscaling factors.

Recent research has also explored the potential of transformer architectures in SISR. Chen et al. ^[29] adapted the transformer model for low-level vision tasks, including super-resolution, showcasing the power of self-attention mechanisms in capturing long-range dependencies. Liang et al. ^[30] further refined this approach by introducing a hierarchical transformer with shifted windows, effectively balancing local and global feature modeling. The integration of prior knowledge and learning-based methods has also shown promise. Zhang et al. ^[31] incorporated a degradation model into the network design, allowing for more robust performance across various downsampling kernels. Similarly, Mei et al. ^[32] leveraged non-local spatial attention to capture correlations between distant pixels, enhancing the network's ability to reconstruct complex textures. Efforts to improve computational efficiency while maintaining high performance have led to innovations like those proposed by Hui et al. ^[33], which introduced a lightweight network architecture with information multi-distillation blocks. This approach achieved a good balance between model size and reconstruction quality, making it suitable for resource-constrained applications. These advancements in SISR provide a rich foundation for FSR research. However, the domain-specific nature of facial images presents unique challenges and opportunities not fully addressed by general SISR techniques. These include the need to preserve facial identity, handle extreme pose variations, and reconstruct fine-grained facial features accurately. Our work builds upon these SISR innovations, adapting and extending them to the specific requirements of FSR, particularly in handling the intricate structures and subtle details characteristic of facial images.

3.1. Restormer Module

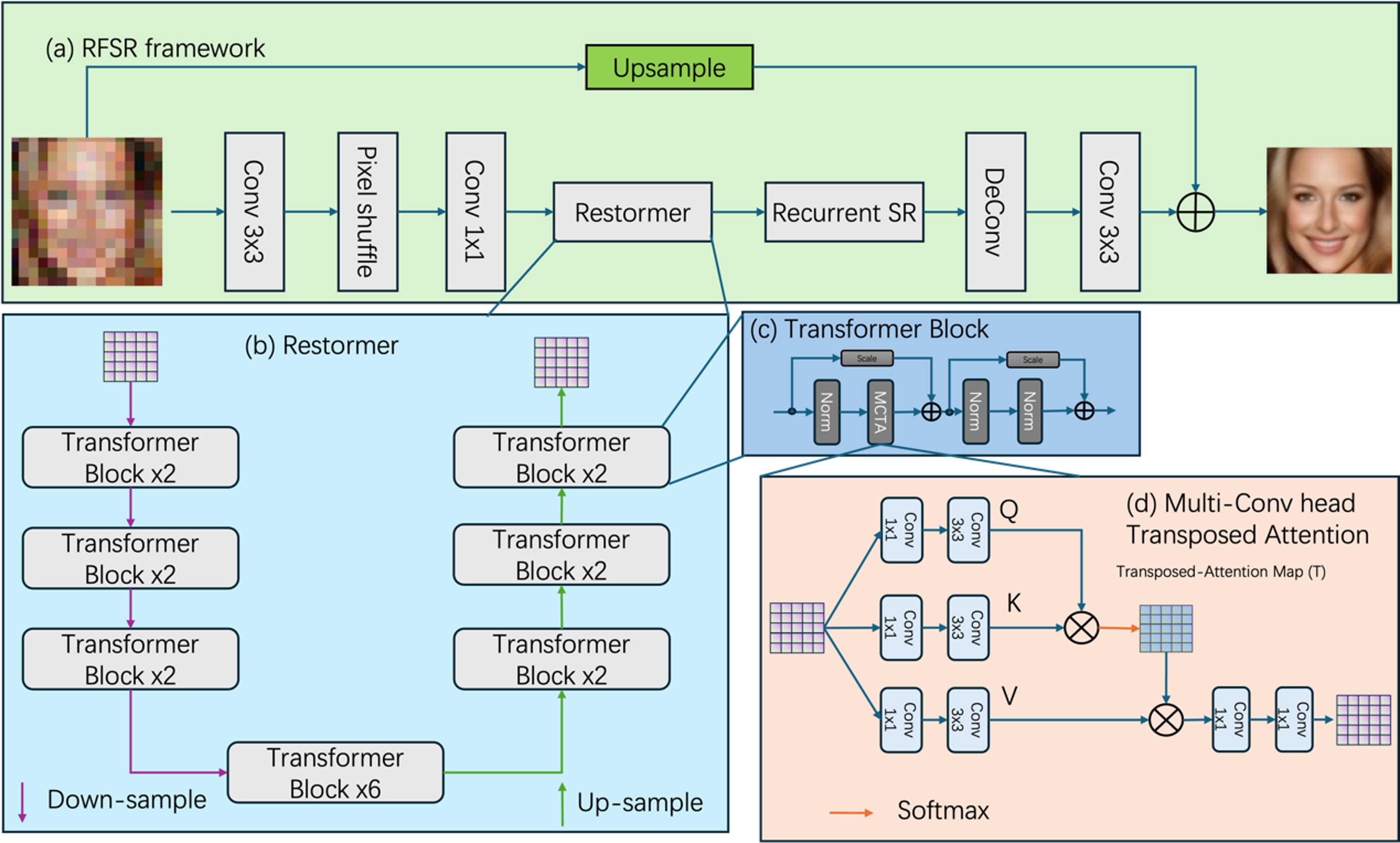

The Restormer module ^[14], denoted as $R$ in Eq. (2), represents a notable improvement in FSR. Motivated by the need to capture both local details and global facial structures, this module leverages the power of transformer architectures while introducing novel components tailored specifically for image processing tasks. The Restormer's design is driven by the goal of effectively modeling long-range dependencies in facial images while maintaining computational efficiency. At its core, the Restormer employs a U-shaped architecture, comprising an encoder, a latent space processor, and a decoder. The process begins with an overlapped patch embedding operation, E, which projects the input features into a high-dimensional space:

where $z_0$ is the input to the Restormer module. This initial embedding allows the network to capture local spatial relationships effectively.

The encoder consists of multiple stages, each operating at progressively lower resolutions. For each encoder stage $i$ ($i = 1$, $2$, $3$), the features are processed as

where $E_i$ represents the $i$-th encoder stage composed of multiple Transformer blocks, and $D_i$ is a downsampling operation. The number of Transformer blocks in each encoder stage follows the pattern $[4$, $6$, $6]$, resulting in a total depth of 16 blocks in the encoder. This increasing depth as spatial dimensions decrease allows the network to capture increasingly abstract and global features.

The latent space processing, occurring at the bottleneck of the U-shaped architecture, is defined as

where $L$ consists of 8 Transformer blocks. This deep processing at the lowest resolution enables the network to capture global context and long-range dependencies across the entire facial image, which is crucial for accurately reconstructing high-frequency details in the super-resolved output.

The decoder mirrors the encoder's structure, progressively upsampling and refining the features. For each decoder stage $i$ ($i=3$, $2$, $1$), the features are processed as

where $T_i$ represents the $i$-th decoder stage, $U_i$ is an upsampling operation, and $[\cdot$, $\cdot] $ denotes channel-wise concatenation. This skip connection design facilitates effective multi-scale feature integration, allowing the network to combine low-level details with high-level semantic information.

A key innovation in the Restormer lies in its Transformer block design. Each block incorporates two novel components: the Multi-DConv Head Transposed Self-Attention (MDTA) and the Gated-DConv Feed-Forward Network (GDFN). The MDTA mechanism is expressed as

where $Q$, $K$, and $V$ are obtained through depthwise separable convolutions

This design allows for efficient spatial information modeling while maintaining the benefits of self-attention for capturing long-range dependencies.

The GDFN, following the MDTA in each Transformer block, is described as

where ${\odot }$ represents element-wise multiplication, $DWConv$ is a depthwise convolution, and $W_1$, $W_2$ are linear transformations. This gating mechanism enables adaptive feature modulation based on both channel-wise and spatial information, enhancing the network's ability to focus on relevant facial features.

The Restormer also incorporates an adaptive Layer Normalization strategy, offering both bias-free ($LN_{BF}$) and with-bias ($LN_{WB}$) options

where $LN_{BF}$ denotes bias-free layer normalization, and $LN_{WB}$ denotes with-bias layer normalization.

This flexibility in normalization contributes to the network's ability to handle diverse input distributions and feature characteristics throughout its depth.

The final output of the Restormer module is obtained after a refinement stage: $z_{out}=H\left(z^1_d\right)$, where $H$ consists of 4 additional Transformer blocks. This brings the total depth of the Restormer to an impressive 38 Transformer blocks, allowing for extensive feature refinement and ensuring high-quality reconstruction of facial details.

The Restormer's innovative architecture, with its deep hierarchical processing, advanced attention mechanisms, and adaptive design choices, enables it to effectively capture and reconstruct intricate facial details across multiple scales. This makes it particularly well-suited for challenging FSR tasks, where preserving identity-specific features and generating realistic high-frequency details are paramount. The combination of local and global feature modeling, coupled with the network's significant depth, allows the Restormer to achieve superior performance in recovering fine facial structures and textures.

3.2. Recurrent SR module

The feedback block ^[15] serves as a crucial element of the model architecture, designed to iteratively refine feature representations for HR face image reconstruction. This block is inspired by the need to progressively enhance features through recurrent connections, which is essential for capturing intricate facial details and improving the final output quality. As illustrated in Fig. 2, the Feedback Block uses a recurrent structure that allows for continuous refinement and enhancement of features.

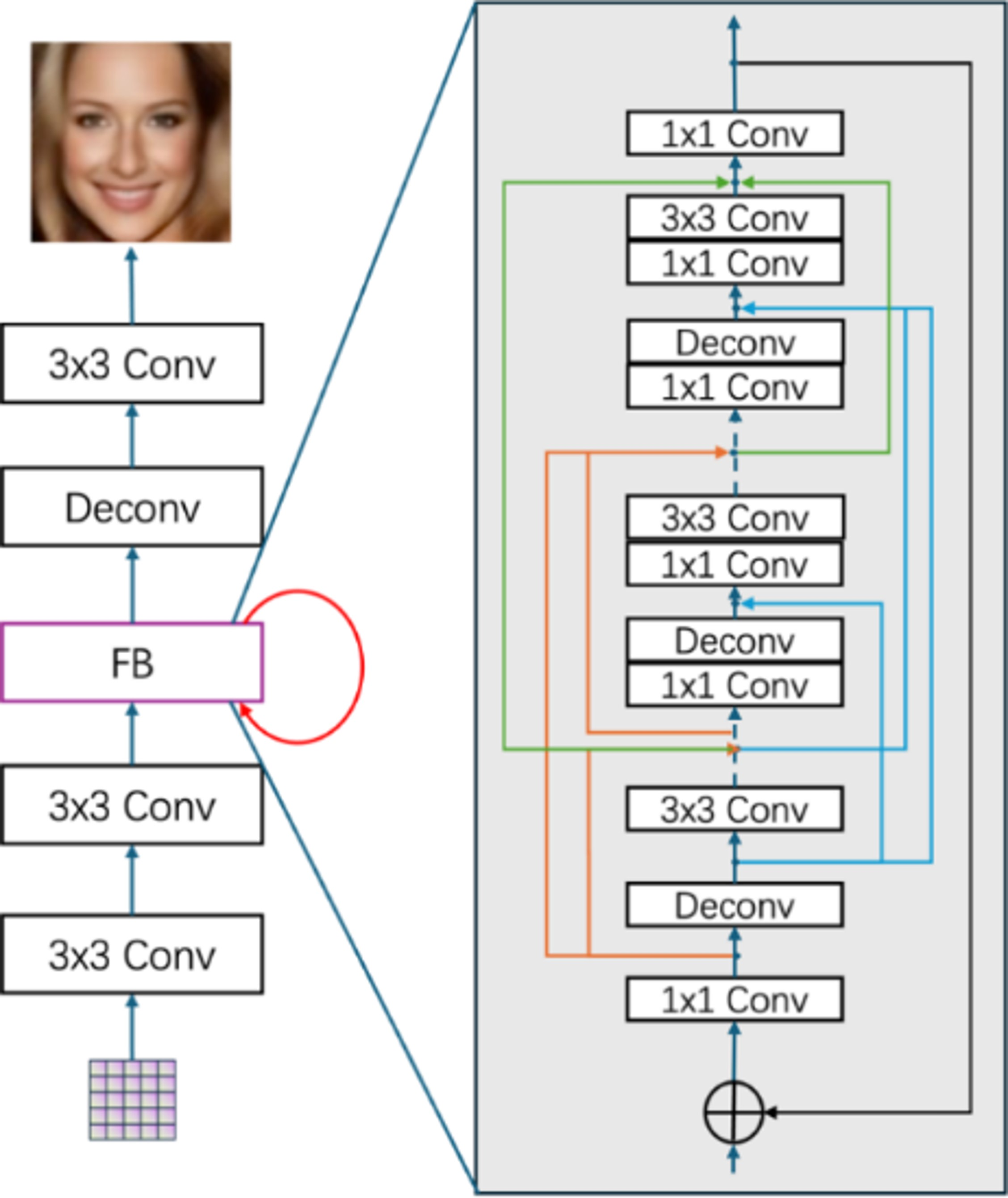

Fig. 2. The structure of the feedback block.

This block consists of alternating up-projection ($U_g$) and down-projection ($D_g$) operations for each group $g$. The input feature map $F_{\mathrm{in}}$ is initially compressed using a 1x1 convolutional layer $C_{\mathrm{in}}$. The up-projection steps transform LR feature maps $L_{g-1}$ into HR maps $H_g$, which are subsequently down-projected back to LR maps $L_g$. The final output $F_{\mathrm{out}}$ is obtained by concatenating all intermediate LR feature maps and compressing them with another 1x1 convolutional layer $C_{\mathrm{out}}$.

The Feedback Block is configured with 6 groups, 4 steps, and 48 feature channels. This setup balances computational efficiency with the ability to capture detailed features, which are vital for reconstructing high-quality images.

The block starts by compressing the input feature map $F_{\mathrm{in}}$ to reduce dimensionality, making it easier for the network to process the data efficiently. This initial compression is performed using a $1\times 1$ convolutional layer

where $C_{\mathrm{in}}$ represents the convolution operation.

Once the features are compressed, the Feedback Block employs a series of up-projection and down-projection operations. These operations progressively upscale and downscale the feature maps, refining the features at multiple scales. For each group $g$, where $g = 1$, $2$, $\dots$, $6$, the up-projection step is performed by applying the up-projection operation $U_g$ to the LR feature map from the previous step

After up-projection, the HR feature map undergoes down-projection through the down-projection operation $D_g$:

To ensure that the network effectively integrates multi-scale features, each up-projection and down-projection operation utilizes concatenated feature maps from all previous HR and LR stages. The concatenation process for down-projection can be described as

where $\mathrm{Cat}$ denotes the concatenation operation along the channel dimension.

After processing through all groups, the final output of the Feedback Block is obtained by concatenating all intermediate LR feature maps and applying a final compression operation

where $C_{\mathrm{out}}$ is another 1x1 convolutional layer that reduces the concatenated features to the desired output dimensionality.

The recurrent nature of the Feedback Block is key to its ability to iteratively refine feature maps. In each iteration, the block takes the output from the previous step and feeds it back as input for further refinement. This process of recurrent feedback allows the network to progressively enhance feature representations, making it particularly effective for tasks that require high-fidelity FSR. The design of the Feedback Block is driven by the need to iteratively improve the quality of feature representations. By alternating between up-projection and down-projection, the block captures and integrates features across different scales, making it adept at reconstructing fine details and complex structures in HR facial images. The concatenation of features from various scales, followed by a compression step, ensures that the final feature representation is both rich in detail and computationally efficient to process.

In conclusion, the Feedback Block plays a pivotal role in the model's ability to generate high-quality super-resolution images. Its iterative structure, combining up-projection, down-projection, and feature concatenation, allows for effective multi-scale feature integration and refinement. This iterative refinement process, as illustrated in Fig. 2, is essential for achieving the desired level of detail and accuracy in the reconstructed images.

4.1. Dataset

We conduct our experiments using the CelebA dataset ^[34], a large-scale face attributes dataset widely used in face-related computer vision tasks. For our study, we utilize the first 36,000 images for training and the subsequent 1,000 images for testing. This split provides a comprehensive training set while maintaining an adequate test set for thorough evaluation. The training images undergo a preprocessing stage where we coarsely crop the face regions using a face detection algorithm. These cropped images are then resized to $128\times128$ pixels without any pre-alignment procedures. This resizing approach maintains the aspect ratio of the cropped face regions, ensuring that facial features are not distorted or stretched significantly during the resizing process. This approach preserves the natural variations in facial pose and expression, allowing our model to learn from and adapt to a diverse range of facial orientations and expressions. Fig. 3 presents a selection of sample images from our training dataset, showcasing the variety in facial features, expressions, and image quality present in the CelebA dataset.

Fig. 3. Sample images from the CelebA dataset used in our training process.

These images demonstrate the diversity in facial features, expressions, and image quality. For our RFSR method, we use color images in the training process. This decision enables our network to learn and reconstruct the full spectrum of facial details, including subtle color variations that are crucial for realistic face reconstruction.

4.2. Degradation Models

To comprehensively evaluate the effectiveness of our proposed RFSR method for various types of image degradation, we employ three degradation models to simulate LR images. The first model is bicubic downsampling (Bic), which we implement using the Matlab function imresize with the bicubic option. This model is applied with scaling factors of $4\times$ and $8\times$, simulating different levels of resolution loss. The second degradation model, bicubic downsampling with noise (BicN), builds upon the first model by adding Gaussian noise after the downsampling process. Specifically, after applying bicubic downsampling with scaling factors of $4\times$ and $8\times$, we add Gaussian noise with a noise level of 15. The noise level n indicates a standard deviation of n in a pixel intensity range of [0, 255]. This model simulates scenarios where the LR image is affected by both resolution loss and sensor noise. To create a more challenging scenario, we introduce a third degradation model: blur, bicubic downsampling, and noise (BBicN). In this model, we first blur the HR image using a Gaussian kernel of size $7 \times 7$ with a standard deviation of 1.6. We then apply bicubic downsampling with scaling factors of $4\times$ and $8\times$, followed by the addition of Gaussian noise with a noise level of 30. This model represents a complex degradation process involving blur, downsampling, and severe noise. These degradation models allow us to test our RFSR method under various conditions, from simple resolution reduction to complex scenarios involving multiple types of image degradation. By using these diverse degradation models, we aim to demonstrate the robustness and effectiveness of our proposed method in handling different types and levels of image quality deterioration commonly encountered in real-world FSR tasks.

4.3. Training Setting

We initialize the network parameters using the Xavier initialization method. All transformer blocks in our Restormer-based architecture use the Gaussian Error Linear Unit (GELU) as the activation function. Our model is implemented using the PyTorch framework and optimized using the AdamW optimizer with cosine learning rate scheduling. The initial learning rate is set to $3\times {10}^{-4}$ and gradually decreases to $1 \times 10^{-6}$ over the course of training. We use a batch size of 8 for our experiments. The momentum parameter $\beta1$ is set to 0.9, and $\beta2$ is set to 0.999. Weight decay is applied with a factor of $1 \times {10}^{-4}$ to prevent overfitting. We train our RFSR model for a total of 300 epochs. The training process takes approximately 24 hours on a single NVIDIA RTX 3090 GPU. To assess the quality of the super-resolved images, we employ two widely used objective image quality assessment metrics: Peak Signal-to-Noise Ratio (PSNR) and Structural Similarity Index (SSIM). All metrics are calculated on the Y-channel of the YCbCr color space of the super-resolved images. For the loss function, we use a combination of L1 loss and perceptual loss. The perceptual loss is computed using the features extracted from a pre-trained VGG-19 network. The total loss is a weighted sum of these two components, with the weights empirically set to balance the contribution of each loss term. To enhance the model's generalization capability, we applied several data augmentation techniques during training. These include random horizontal flipping with a probability of 0.5, random rotation with angles selected from the range of $\pm10$ degrees, and random brightness and contrast adjustments with factors selected from the range of $\pm15$% (corresponding to a factor range of 0.85 to 1.15). These augmentations were applied sequentially, with each transformation having an independent probability of being applied to a given image.

4.4. Comparisons with State-of-the-Art Methods

We compare our proposed RFSR method with several state-of-the-art super-resolution approaches, each representing different advancements in the field. For fair comparison, all models are trained on the same CelebA dataset using the same training split and under consistent settings. ESRGAN ^[24] enhances the traditional GAN-based super-resolution methods by introducing a more robust architecture and a perceptual loss function, which focuses on high-frequency details to generate visually pleasing images. SwinIR ^[30], based on Swin Transformers, leverages hierarchical feature representations and attention mechanisms to effectively handle image restoration tasks, achieving high-quality reconstructions. EDSR ^[6] employs an enhanced deep residual network that simplifies the network structure by removing unnecessary batch normalization layers, leading to significant improvements in image quality and computational efficiency. VQ-VAE-2 ^[35] utilizes vector quantization and autoencoders to generate high-fidelity images, providing a unique approach to handling image super-resolution tasks. SRFlow ^[36] introduces a novel approach using normalizing flows to model the distribution of HR images, enabling it to generate diverse and high-quality outputs. Finally, EfficientNet-SR ^[37] applies the EfficientNet architecture, known for its balance between accuracy and efficiency, to the task of image super-resolution, achieving impressive results with relatively low computational cost. To evaluate the performance of these methods, we use Peak Signal-to-Noise Ratio (PSNR) and Structural Similarity Index (SSIM) as metrics, focusing on the Y-channel of the YCbCr color space.

Table 1 showcases the performance of various super-resolution methods, including our proposed RFSR, across different degradation models (Bic, BicN, and BBicN), using PSNR and SSIM metrics. For the Bic model, which involves simple bicubic downsampling, our RFSR method achieves the highest PSNR of 27.65 and SSIM of 0.7734. This indicates superior noise reduction and fidelity compared to other methods. In the more challenging BicN model, which adds Gaussian noise to the downsampled images, RFSR again leads with a PSNR of 25.67 and an SSIM of 0.7195, demonstrating robustness against noise. The BBicN model, combining blur, downsampling, and high-level Gaussian noise, presents the most complex degradation scenario. Here, RFSR attains a PSNR of 23.99 and an SSIM of 0.6892, outperforming other methods and showing its capability to handle severe degradation while maintaining structural integrity. Overall, our RFSR method consistently excels across all degradation models, highlighting its robustness and effectiveness. The advanced transformer-based architecture of RFSR, which effectively captures and reconstructs fine details, sets a new benchmark in FSR, significantly enhancing both PSNR and SSIM metrics.

Then, we compared our RFSR method with state-of-the-art approaches visually. As shown in Figs. 4 and 5, our method demonstrates superior performance in reconstructing high-quality face images under various degradation conditions.

Fig. 4 illustrates the visual comparison of different methods under the bicubic downsampling (Bic) model. While all methods show improvements over the LR input, our RFSR method stands out in several aspects. The facial features reconstructed by RFSR are noticeably sharper and more defined, especially in critical areas such as the eyes, nose, and mouth. For instance, the eye region in our result shows clearer iris details and more natural eyelash rendering compared to other methods. The skin texture produced by RFSR also appears more realistic, avoiding the over-smoothing effect seen in some competing methods like ESRGAN or the slight blurriness in SwinIR results.

In Fig. 5, we present the visual results under the more challenging BicN model, which introduces noise to the downsampled images. The impact of noise is evident across all methods, but our RFSR demonstrates remarkable resilience. While methods like EDSR and VQ-VAE-2 struggle to maintain clear facial structures in the presence of noise, our approach preserves the overall facial integrity and fine details. The hair texture in our result, for example, retains more natural waviness and individual strand definition, whereas other methods tend to produce a more smudged or artificial appearance. Notably, our method excels in preserving the subtle contours and expressions of the face. The nasolabial folds and slight smile lines are more accurately reconstructed in our results, contributing to a more lifelike and expressive face image. This is particularly evident when compared to methods like SRFlow or EfficientNet-SR, which, while effective in general super-resolution tasks, seem to struggle with the nuanced details of facial features under noisy conditions. Furthermore, the color fidelity in our reconstructions is superior. The skin tone appears more natural and consistent across the face, avoiding the color distortions or uneven patches sometimes seen in the results of other methods. This is crucial for maintaining the overall realism and quality of the super-resolved face images. The effectiveness of our RFSR method is particularly evident in the more complex degradation scenarios. Even as the noise level increases, our method maintains a consistent quality in facial reconstruction. This is in contrast to some other approaches, where the quality degrades more noticeably with increased noise, resulting in loss of facial details or introduction of artifacts.

In summary, the visual comparisons in Figs. 4 and 5 clearly demonstrate the superiority of our RFSR method in FSR tasks. Our approach not only produces sharper and more detailed facial features but also shows remarkable robustness against various types of image degradation, particularly noise. This visual evidence, combined with the quantitative results from Table 1, strongly supports the effectiveness of our proposed method in generating high-quality, realistic face images from LR inputs.

Fig. 4. Visual comparison of different super-resolution methods under the bicubic downsampling (Bic) model. Images are from the CelebA test set, downsampled by a factor of $8 \times$. From left to right: LR input, ESRGAN, SwinIR, EDSR, VQ-VAE-2, SRFlow, EfficientNet-SR, and our RFSR (proposed).

Fig. 5. Visual comparison of different super-resolution methods under the bicubic downsampling with noise (BicN) model. Images are from the CelebA test set, downsampled by a factor of $8\times$ and added Gaussian noise with a noise level of 15. From left to right: LR noisy input, ESRGAN, SwinIR, EDSR, VQ-VAE-2, SRFlow, EfficientNet-SR, and our RFSR (proposed).

In order to corroborate the real benefit of our proposal, we further performed face verification experiments using Additive Angular Margin Loss for Deep Face Recognition (ArcFace) ^[38]. We constructed 1000 positive sample pairs and 9000 negative sample pairs based on the SR results (BBicN) from each method. The results are shown in Table~2. It can be seen that our reconstruction results have better identity retention properties.

The face verification results clearly demonstrate the superiority of our RFSR method in preserving identity-related features. Our method achieves the highest performance score of 0.8935, significantly outperforming all other compared methods. This indicates that the face images reconstructed by RFSR not only have better visual quality but also retain more accurate and distinctive identity information. The performance gap between RFSR and other methods is particularly notable. For instance, EfficientNet-SR, which shows the second-best performance, achieves a score of 0.8710, while our method surpasses it by a margin of 0.0225. This improvement is substantial in the context of face verification tasks, where even small increases in accuracy can have significant practical implications. It's worth noting that all learning-based methods show improvements over the basic bicubic interpolation (0.8058), highlighting the effectiveness of deep learning approaches in FSR. However, the varying degrees of improvement among different methods underscore the importance of architectural choices and training strategies in preserving identity features.

4.5. Effect of Transformer Blocks and Refinement Module

To thoroughly evaluate the effectiveness of our proposed RFSR method, we conduct an ablation study to analyze the impact of the transformer blocks and the recurrent SR module. We design three network variants to clearly demonstrate how different components contribute to the overall performance: RFSR (Ours) as the complete model with all components, BasicNet V1 as RFSR without the recurrent SR module, and BasicNet V2 as RFSR without transformer blocks. We train these variants on the FSR task using the BicN degradation model and evaluate their performance in terms of PSNR over 50 epochs. The results are presented in Fig. 6.

As shown in Fig. 6, the complete RFSR model consistently outperforms all other variants, achieving the highest PSNR values throughout the training process. This demonstrates the synergistic effect of combining transformer blocks with the recurrent SR module. The RFSR model reaches a PSNR of approximately 25.67 dB by the end of training, setting a new benchmark for FSR performance. BasicNet V1, which lacks the recurrent SR module, shows the second-best performance. Its PSNR curve closely follows that of the full RFSR model, but with a consistent gap of about 0.2 dB, settling around 25.47 dB. This observation highlights the significant role of the recurrent SR module in enhancing fine details and improving overall image quality. The recurrent module appears to be particularly effective in recovering subtle facial features that may be missed by the transformer blocks alone. BasicNet V2, which eliminates the transformer blocks entirely, shows the lowest performance among all variants. Its PSNR values plateau around 25.13 dB, significantly lower than the other models. The substantial gap between BasicNet V2 and the other variants, particularly the full RFSR model (about 0.54 dB difference), underscores the critical role of transformer blocks in achieving high-quality FSR. This result suggests that the transformer architecture is fundamental to capturing the long-range dependencies and complex feature interactions necessary for effective face image reconstruction. Interestingly, all models show rapid improvement in the initial epochs, followed by a more gradual increase in PSNR. However, the full RFSR model maintains a slightly steeper improvement curve even in later epochs, indicating its superior learning capacity and potential for further improvement with extended training. This observation suggests that the combination of transformer blocks and the recurrent SR module not only yields better results but also provides a more robust and flexible learning framework. To further validate the effectiveness of our RFSR model, we conduct additional experiments using different degradation models. Table 3 presents the PSNR and SSIM results for all variants across Bic, BicN, and BBicN degradation models.

The results in Table 3 consistently demonstrate the superiority of the full RFSR model across all degradation scenarios. The performance gap is particularly pronounced in more challenging degradation models like BBicN, where the full model's ability to handle complex degradations becomes evident.

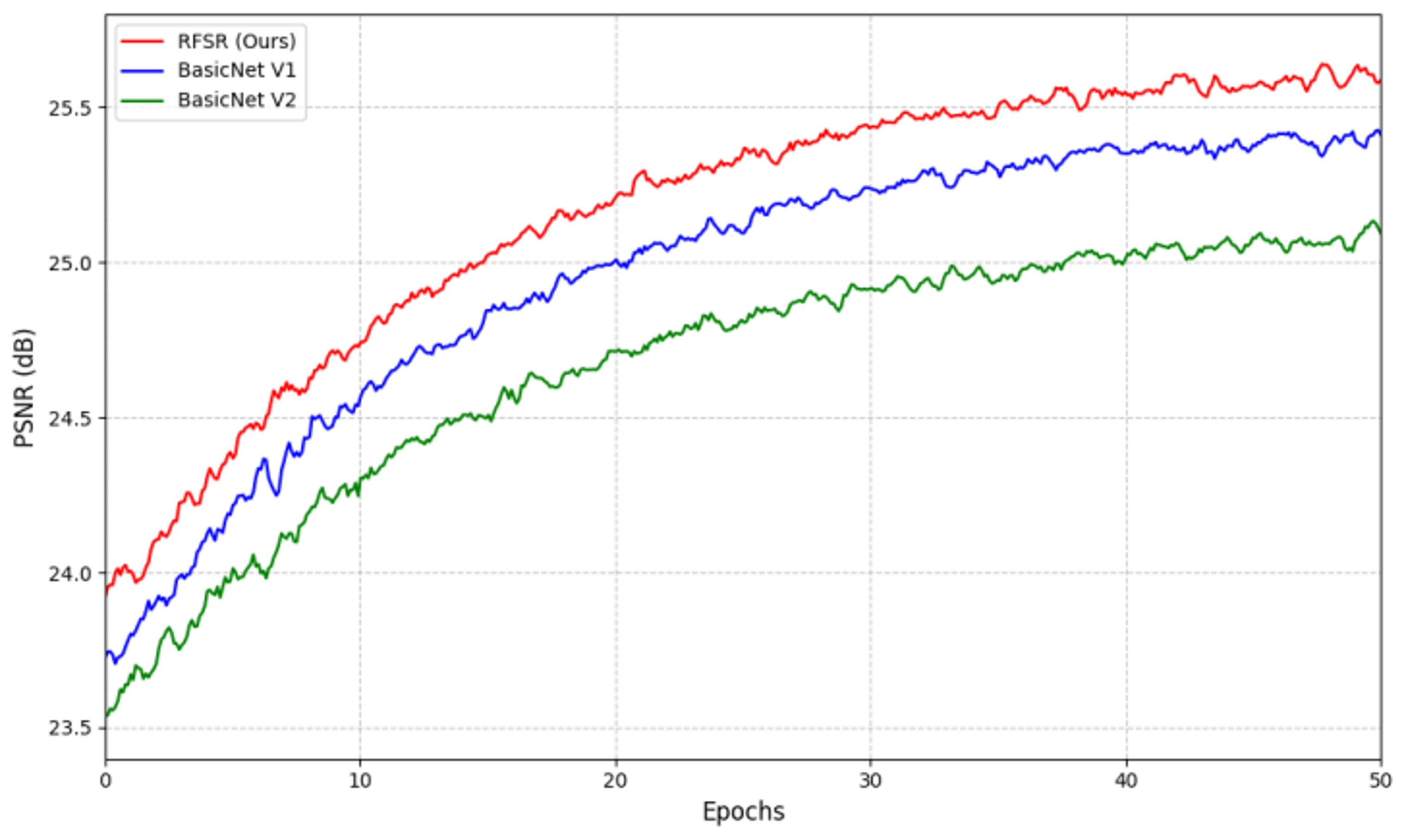

Fig. 6. Ablation study on effects of transformer blocks and recurrent SR module with BicN degradation model.
